Coffee Cart Water Pump System w FL43

Model Number: FL43 + EOAT + Valve
Max flow: Tooltip 17 L/min
Head/Draw: Tooltip 3m, 1m
Pressure: Tooltip 40PSI
Inlet/Outlet size: 12mm
Amp draw: 0.8 amps
Voltage: 240 volt
Packaging Size (cm): 38 x 24 x 10cm
Packaging Weight (kg): 3.8kg
Liquid to be pumped: Clean or Salt Water
$ 259.00
Add to Cart
Rating: Not Rated Yet

If you are setting up a coffee cart or food van we have put together a basic set you require of the Escaping Outdoors 240v FL43 pump, accumulator tank and the choice of a non-return valve or a check valve / foot valve if your pump is to be mounted higher than your water source.

Your water pump will deliver up to 17 L/min at 40 PSI and the accumulator tank will smooth and balance the supply of water pressure in your system, thus protecting your coffee machines and to help prevent pressure switch failure which leads to pump failure. The accumulator tank is roughly the size of a large grapefruit and sits immediately after the pump on the outlet side so they are sitting side by side. We will pre-set your accumulator tank to match the PSI of your pump before it leaves our warehouse ready for best use.

There are two types of valves to choose from:

  • A non-return valve ( Option 1) : A non-return valve is used when the water source is a closed tank with the non-return valve connecting to the bottom of the water tanks outlet.
  • A foot valve ( Option 2 ): A foot valve goes on the end of your pipe or hose which sits in the bottom of your water supply. EG: jerry can style of water container.

FAQ - How to set up up water in your coffee cart or food van

Escaping Outdoors FL43 240V Pump System Applications

  • Coffee Carts
  • Food vans
  • Farm shed

Escaping Outdoors FL43 240V Pump System Features

  • Pump supplied with a screen filter, three fittings and instructions
  • Accumulator tank supplied with fittings and instructions and pre-pressurised to suit the pump
  • Choice of non-return valve or check valve
  • Automatically turns on and off
  • Self priming
  • Easy to install and operate
  • Pumps fresh water or salt water
  • Low power consumption
  • Run dry protection
  • 1 metre power cord on pump
  • Made from durable, non-corrosive materials
  • Installation instructions included
  • 1 year manufacturers warranty. 3 month manufacturers warranty if used for commercial purposes
  • Global Mark Certification - GMA-511899

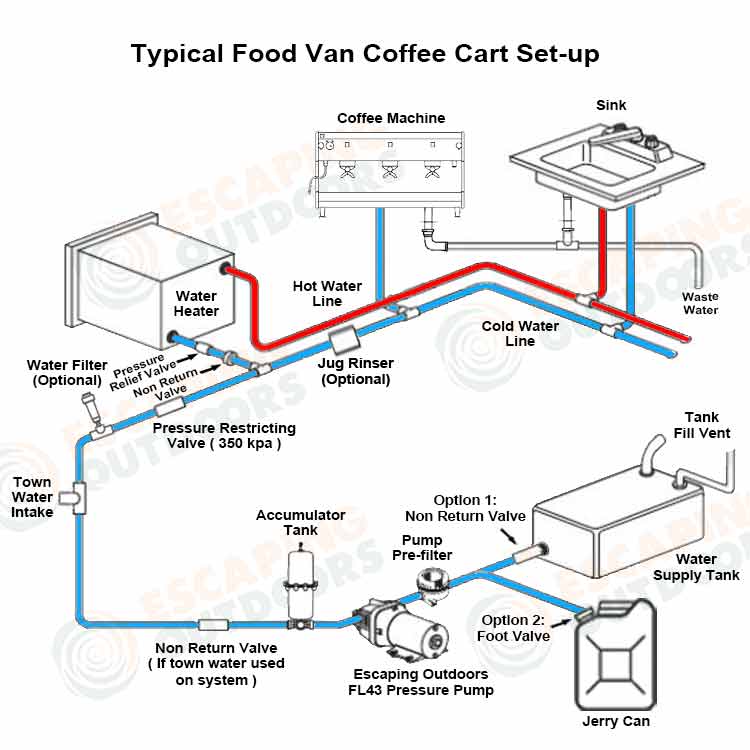

 Typical food van coffee cart water pump set up - Water Pumps Now Australia
