Accumulator Tank - Coffee Carts - Food Vans

Model Number: EOAT
Inlet/Outlet size: 12mm
Packaging Size (cm): 18 x 12 x 11cm
Packaging Weight (kg): .35kg
Liquid to be pumped: Clean Water
Pressure: Tooltip Pre - charged pressure - 10PSI (0.7BAR)
$ 90.00
INCL GST
Add to Cart

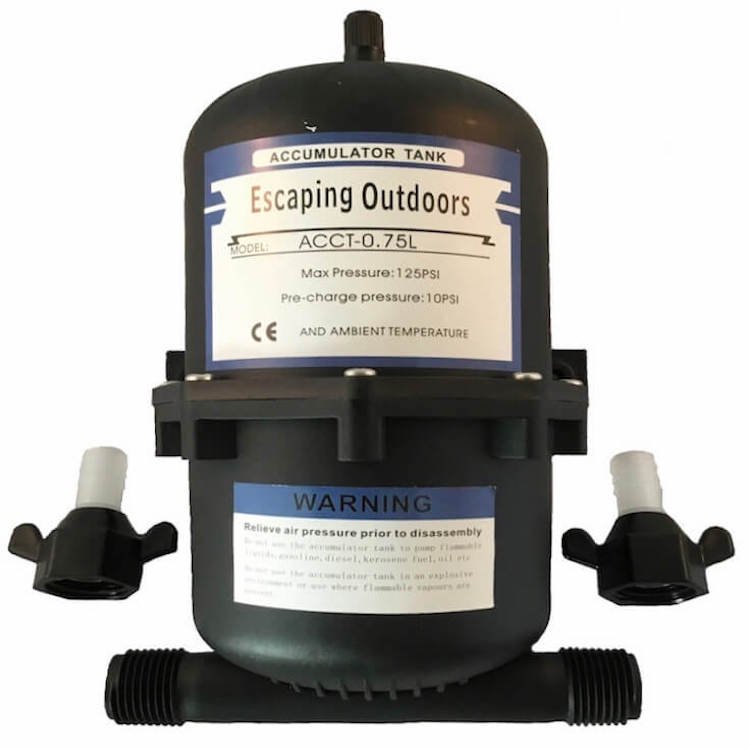

Compact accumulator tank to quieten your 12v water pump immediately and small enough to fit into a tight spot. An accumulator tank will give you a smoother water flow, quieter operation, will save you battery power and will extend the life of your pump. An accumulator tank (also known as a pressure tank) is a must for every setup!

This quality Escaping Outdoors accumulator tank will hold a store of pressurised water to reduce unnecessary pump cycling, pulsation and water hammer when installed between the pump and the tap. It can be fitted to new or existing pressure pump system installations.

Recommended for coffee carts to protect your coffee machine and pump, for food vans or in your boat or caravan.

HOW THE PRESSURE TANK / ACCUMULATOR TANK WORKS

a. Accumulator tank contains a factory charged air cushion. This is usually 10%.

b. When the pump starts, water enters the accumulator reservoir. At maximum pressure the system is filled. The pump then shuts off.

c. When water is demanded, pressure in the air chamber forces water into the system. The pump stays off until minimum pressure is reached, then the pump starts and runs until cut-out pressure is reached.

Water Pumps Now are happy to pre-charge your accumulator tank to suit your 12V, 24V or 240V diaphragm pressure pump when purchasing. Just let us know what pump it is to be used in conjunction with.

EG: Escaping Outdoors FL35 @ 35PSI needs the accumulator tank to be charged to around 28 PSI.

EG: Escaping Outdoors FL43 @ 40 PSI needs the accumulator tank to be charged to around 32 PSI.

If you already have a pressure tank on your system, check it is charged to the right PSI to be effective for your setup or call us on 1300 411 366 if you are unsure.

Escaping Outdoors EOAC 0.75L Accumulator tank Application

These accumulator tanks are designed to be used with any water system which is controlled by a pressure switch.

Escaping Outdoors EOAC O.75L Accumulator tank Features

  • Internal bladder
  • Ensures a smoother more even water flow
  • Quietens your water system
  • Extends Pump Life
  • Easily fitted to new or existing systems
  • Compact size for small spaces
  • Supplied with 1/2" 12mm port fittings
  • Mounting point for optional pressure switch
  • Made with food grade materials
