Jabsco Hotshot HD6 Washdown Saltwater Pump Kit 24v 70PSI

Model Number: J20-253
Max flow: Tooltip 22.7 L/min
Pressure: Tooltip 70 PSI
Inlet/Outlet size: 12mm
Self priming to: 2.1 metres
Voltage: 24 volt
Liquid to be pumped: Clean or Salt Water
$ 667.00
INCL GST
Add to Cart

The Jabsco Hotshot HD6 24v washdown / deck wash pump kit for freshwater or saltwater includes a diaphragm pressure pump made to delivery exceptional performance up to 22.7 L/min at 70 PSI. A quality pump backed by the Jabsco 3 year warranty this washdown pump is for high pressure removal of mud from anchoring hardware and to blast your decks and fishing platforms clean.

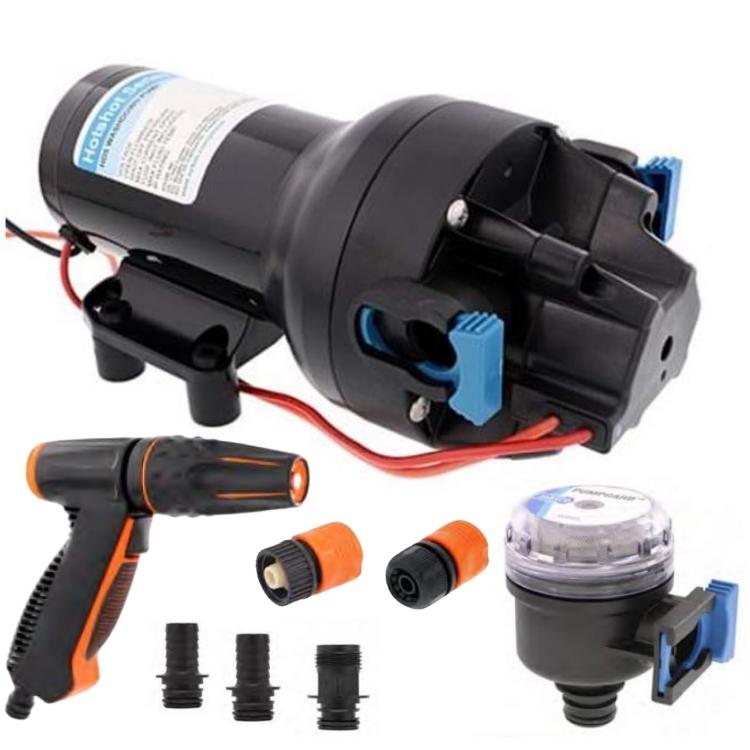

Jabsco Hotshot HD6 Deckwash Pump 24V Kit Inclusions

  • 1 x HotShot HD6 Washdown Pump
  • 2 x 3/4" ( 19mm ) straight hosebarbs
  • 1 x 3/4" GHT fittings
  • 1 x 90° 40 mesh quick connect strainer
  • 1 x Deluxe trigger nozzle and quick connect hose adapters

Jabsco Hotshot HD6 Deckwash Pump 24V Specifications

  • Model number: J20-253
  • Voltage: 24v
  • Open flow: 6GPM ( 22.7 L/min )
  • Shut off pressure: 70 PSI ( 4.8 Bar )
  • Maximum current draw: 9.4A
  • Recommended fuse size: 15A
  • Motor design: Brushed, permanent magnet TENV
  • Pumphead upper housing material: Fiber reinforced polypropylene
  • Diaphragm: Co-moulded TPV
  • Check valves: EPDM
  • Maximum inlet pressure: 30PSI ( 2.1 Bar )
  • Fluid temperature range: 32°F – 140°F (0°C – 60°C)
  • Dry self priming capability: 7ft min ( 2.1m min )
  • Certifications: CE, ISO8846, RCM
  • Ingress protection: IPX6
  • Warranty: 3 years

Jabsco Washdown Deckwash Pump Range

  • J20-238 - 12v - 60psi - 15.1 L/min
  • J20-239 - 24v - 60psi - 15.1 L/min
  • J20-262 - 12v - 60psi - 15 L/min with hose
  • J20-248 - 12v - 70psi - 18.9 L/min
  • J20-252 - 12v - 70psi - 22.7 L/min
  • J20-253 - 24v - 70psi - 22.7 L/min
  • J20-254 - 12v - 70psi - 22.7 L/min with hose

jabsco hotshot hd6 washdown saltwater pump kit 12v 70psi Water Pumps Now

Jabsco Hotshot HD6 Deckwash Pump 24V Features

  • Jabsco largest washdown pump delivering up to 6GPM
  • Co-molded diaphragm technology for long life and durability
  • HD model featuring heavy duty, motor and cast aluminum lower housing which allow for long-life, even at high pressures
  • Efficient and quiet operation
  • Integrated, sealed pressure switch for on-demand operation
  • Self-priming allows for installation versatility
  • Can run dry without damage
  • Self‐Priming
  • Quick connect ports for ease of installation, servicing, and maintenance
  • Vibration dampening mounting feet
  • A plastic housing protects the motors from corrosion.
  • Provides exceptional performance in an economical footprint
