Jabsco Hotshot HD4 Washdown Saltwater Pump Kit 12v 60PSI

Model Number: J20-262
Max flow: Tooltip 15.1 L/min
Pressure: Tooltip 60 PSI
Inlet/Outlet size: 12mm
Self priming to: 2.4 metres
Voltage: 12 volt
Liquid to be pumped: Clean or Salt Water
$ 470.00
INCL GST
Add to Cart

The Jabsco Hotshot ParMax HD4 12v deck wash pump kit for freshwater or saltwater includes a 4 chamber diaphragm pressure pump for exceptional performance delivering up to 15.1 L/min at 60 PSI. Extremely reliable high flow and high pressure deckwash pump ideal for removing mud from anchoring hardware and blasting your deck and fishing platform clean.

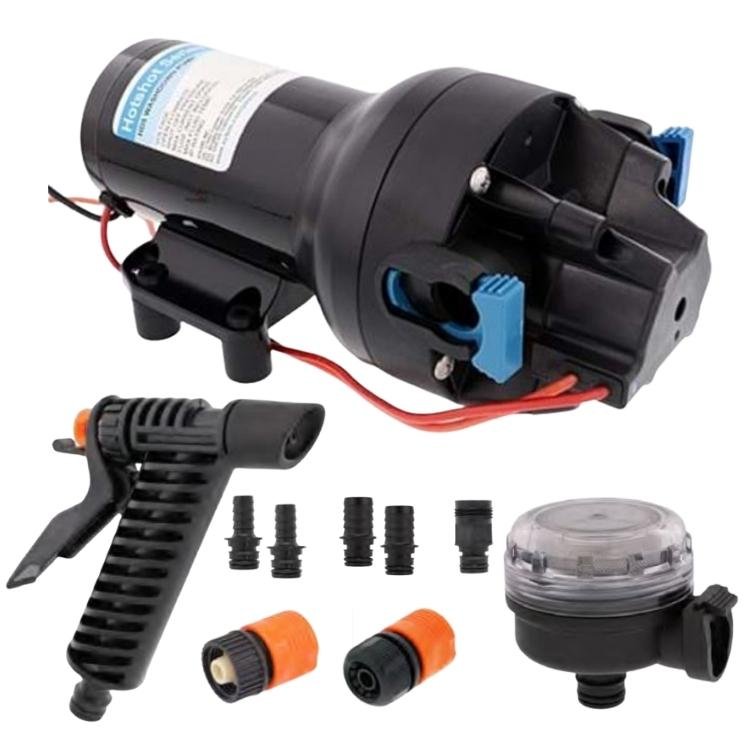

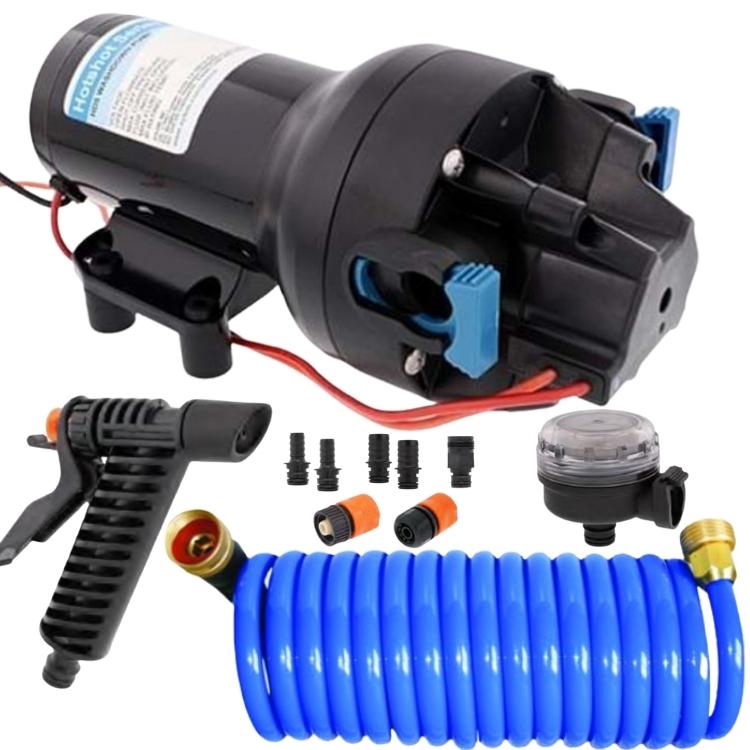

Jabsco Hotshot HD4 12V Deckwash Pump Kit Inclusions

  • 1 x HotShot HD4 Washdown Pump
  • 2 x 1/2" ( 13mm ) straight hosebarbs
  • 2 x 3/4" ( 19mm ) straight hosebarbs
  • 1 x 3/4" GHT fittings
  • 1 x 90° 40 mesh quick connect strainer
  • 1 x Deluxe trigger nozzle and quick connect hose adapters
  •  1 x 7.6m (25') hose coil hose

Jabsco Hotshot HD4 12V Deckwash Pump Kit Specifications

  • Model number: J20-262
  • Voltage: 12v
  • Open flow: 4GPM ( 15 L/min )
  • Shut off pressure: 60 PSI ( 4.1 Bar )
  • Maximum current draw: 11A
  • Recommended fuse size: 20A
  • Motor design: Brushed, permanent magnet TENV
  • Pumphead upper housing material: Fiber reinforced polypropylene
  • Diaphragm: Co-moulded TPV
  • Check valves: EPDM
  • Maximum inlet pressure: 30PSI ( 2.1 Bar )
  • Fluid temperature range: 32°F – 140°F (0°C – 60°C)
  • Dry self priming capability: 8ft min ( 2.4m min )
  • Certifications: CE, ISO8846, RCM
  • Ingress protection: IPX6
  • Warranty: 3 years

Jabsco Hotshot 12V Deckwash Washdown Pump Range

  • J20-238 - 12v - 60psi - 15.1 L/min
  • J20-239 - 24v - 60psi - 15.1 L/min
  • J20-262 - 12v - 60psi - 15 L/min with hose
  • J20-248 - 12v - 70psi - 18.9 L/min
  • J20-252 - 12v - 70psi - 22.7 L/min
  • J20-253 - 24v - 70psi - 22.7 L/min
  • J20-254 - 12v - 70psi - 22.7 L/min with hose

Jabsco hotshot hd4 washdown saltwater pump kit 12v 60PSI Water Pumps

Jabsco Hotshot HD4 12V Deckwash Pump Kit Features

  • Co-moulded diaphragm technology for long life and durability
  • HD model featuring heavy duty, motor and cast aluminium lower housing which allow for long-life, even at high pressures
  • Efficient and quiet operation
  • Integrated, sealed pressure switch for on-demand operation
  • Self-priming allows for installation versatility
  • Can run dry without damage
  • Self‐Priming
  • Quick connect ports for ease of installation, servicing, and maintenance
  • Vibration dampening mounting feet
  • A plastic housing protects the motors from corrosion.
  • Provides exceptional performance in an economical footprint
  • 7.6m hose coil
