Undersink pump system with RVS200VF vortex sump pump and timer

Model Number: RUP200-T
Max flow: Tooltip 200 L/min
Head/Draw: Tooltip 7m
Inlet/Outlet size: 2 inch inlet and overflow. 1 inch outlet.
Cable length: 10m
Solids handling: 5mm
Amp draw: 2 amp
Voltage: 240 volt
Packaging Size (cm): 46 x 26 x 43.5cm
Liquid to be pumped: Grey & waste water
$ 1364.00
Add to Cart
Rating: Not Rated Yet

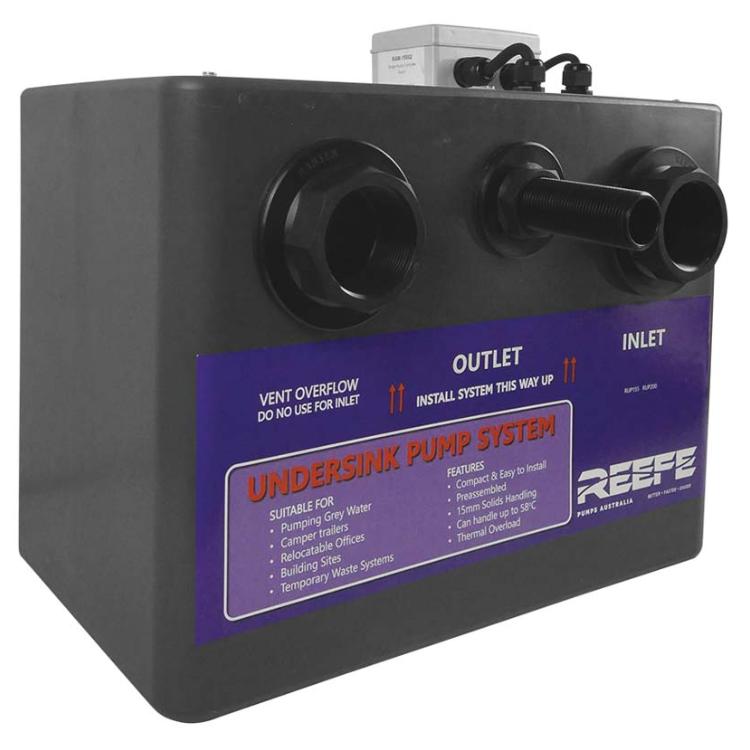

The Reefe RUP undersink waste sump pump system is ideal for confined spaces, such as under benches, under sinks and in cupboards. A Reefe undersink pump system is perfect for transferring waste water to separators, or for lifting water from basements to street level waste connections and comes complete with a high quality vortex sump pump.

Undersink pump systems can also be used on mobile camper trailers and temporary job site buildings for connection into a common wastewater removal system.


  • Pumping grey water
  • Undersink pump well units
  • Camper trailers and other mobile waste systems
  • Building sites and other temporary waste systems


  • 45 litre polyethylene tank
  • 2" FBSP inlets and overflow
  • 1"MBSP outlet
  • RVS200VF vortex sump pump with vertical float

undersink pump system Water Pumps Now Australia


  • Compact and easy to install
  • Thermal overload switch
  • Soft solids up to 25mm
  • Maximum liquid temperature 58°C
  • Pre-assembled system - ready to install
  • Timer version pumps for 10 seconds every 24 hours to prevent water stagnating (RUP155-T and RUP200-T only)

Reefe RUP undersink pump system with vortex sump pump internal photo Water Pumps Now
