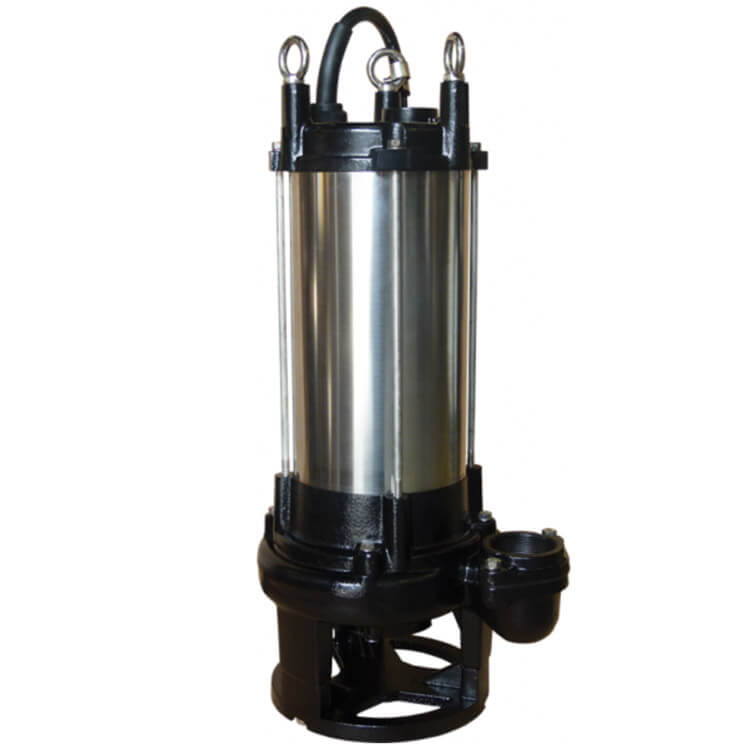

RGS11A Heavy Duty Grinder Pump

Model Number: RGS11A
Max flow: Tooltip 3.2 L/sec (192 L/min)
Head/Draw: Tooltip 16m Head
Inlet/Outlet size: 32mm
Cable length: 10m
Amp draw: 9.0 amp
Horse power: Tooltip 1.5HP, 1.1kw
Voltage: 240 volt
Packaging Size (cm): 28.4 x 28.4 x 51.2cm
Packaging Weight (kg): 31kg
Liquid to be pumped: Sewage - Dirty - Waste Water
$ 2348.00
Add to Cart
Rating: Not Rated Yet

Reefe Grinder Pump - A safe, dependable, trouble free REEFE industrial grinder pump range. With superior engineering, these extremely tough sewage and waste grinder pumps are suitable for the most demanding and gruelling grinding applications. The grinder mechanism on each pump provides an extremely powerful slicing action of more than 80,000 slicing actions per minute while the radial cutter and cutter ring reduces the torque and kilowatt requirements, which makes it one of the most efficient range of grinder pumps available.

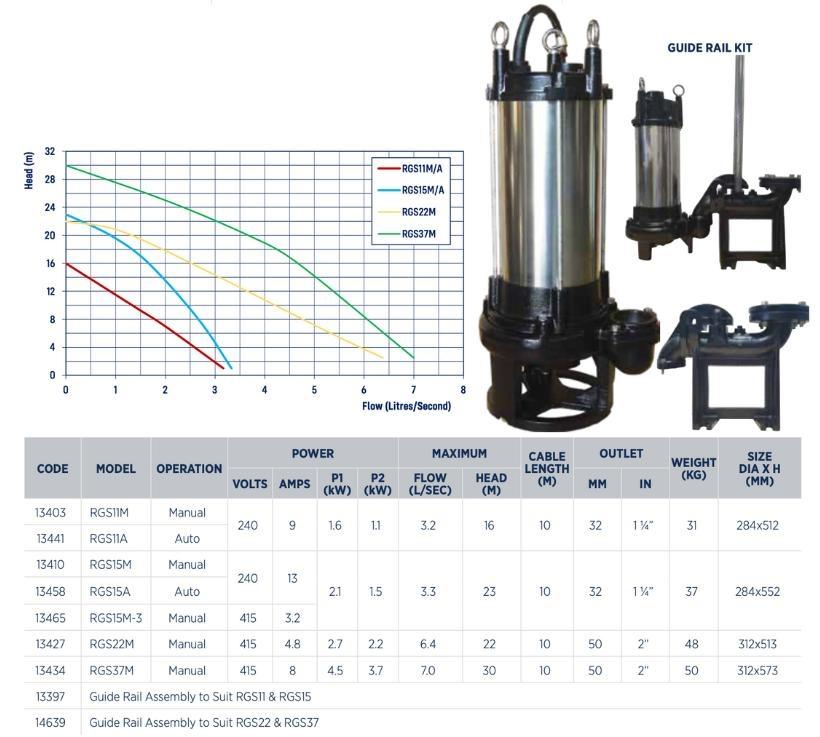

Reefe RGS industrial submersible grinder pump series specifications and graph

REEFE RGS11A Grinder Pump Applications

  • Childcare centres and schools
  • Recreational facilities
  • Waste treatment facilities
  • Industrial plants
  • Sewage applications
  • Townhouse and Unit complexes

REEFE RGS11A Grinder Pump Features

  • Flows up to 7 L/sec and maximum head up to 30m
  • Grinder mechanism composed of a fixed shredder ring and a rotating grinder made with hardened Chromium-Molybdenum alloy steel - provides more than 80,000 shredding actions per minute
  • Unique epoxy cable sealing base prevents water vapour entering the motor
  • Lifting lugs for easy installation and servicing maximum liquid temperature 40°C
  • 1 Year warranty
  • Electrical Safety Approval to AS/NZS 60335.2.41

REEFE RGS11A Grinder Pump Construction

  • Abrasion resistant construction
  • Removable solid cast iron base for guiderail installations
  • Hardened Grinder mechanism
  • Triplex seals - double mechanical seal plus an oil seal to isolate the motor from the sewage liquid
  • 10m cable
  • Ingress Protection IP68
  • Insulation Class F
