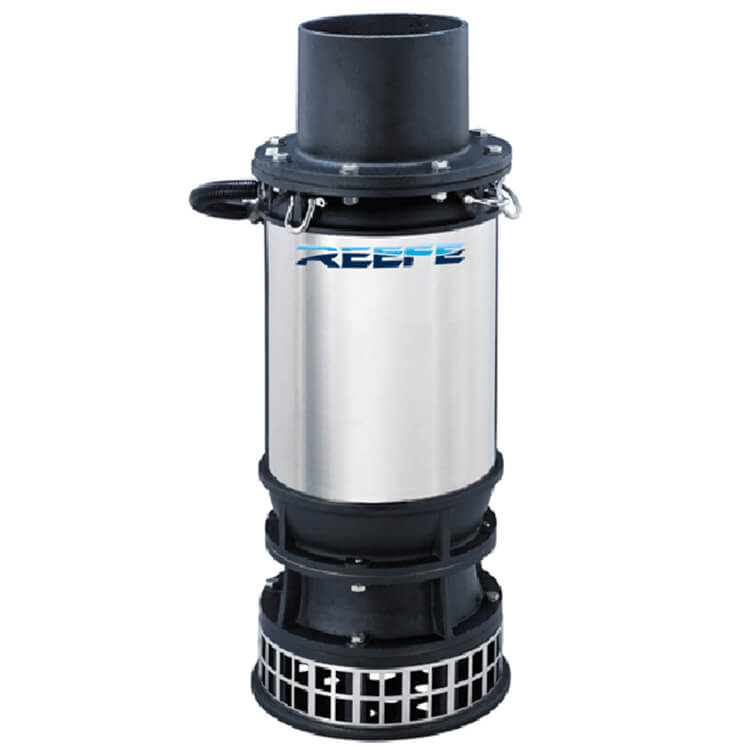

RAF750 Axial Flow Pump

Model Number: RAF750
Max flow: Tooltip 1300 L/sec (78,000 L/min)
Head/Draw: Tooltip 5m
Inlet/Outlet size: 700mm
Horse power: Tooltip 102HP, 75kw
Amp draw: 182 amps
Cable length: 10m
Voltage: 415 volt
Packaging Size (cm): 87 x 87 x 276cm
Packaging Weight (kg): 2130kg
Liquid to be pumped: Clean - Flood - Grey - Waste Water
Rating: Not Rated Yet

Industrial submersible Axial Flow water pumps are used extensively by local government authorities where very high flow is required for stormwater and flood control, aquaculture, high volume dewatering, flood and irrigation control, town water supply, wastewater treament facilities and environmental control projects. The axial flow pump range is also used extensively in industrial applications.

Compact and high performing these high quality, Reefe axial flow pumps have low noise levels, reduced cooling issues, making the installation and operating costs attractive. The unique design features of these industrial series axial flow pumps maximise their reliability to ensure minimal maintenance is required.

Reefe RAF axial flow pump range specifications - Water Pumps Now Australia


  • Stormwater and flood control
  • Aquaculture
  • High volume dewatering
  • Flood irrigation
  • Wastewater treatment facilities
  • Wetland level control
  • Industrial applications

Features and Benefits

  •  Flow up to 1300 L/sec
  •  Maximum Head up to 7.5m
  • Thermal overload protection
  • Available in 415 Volt only
  • 1 Year warranty
  • Electrical Safety Approval to AS/NZS 60335.2.41


  • Water cooled motor
  • Triple seal system
  • Free standing or well type
  • Ingress Protection IP68

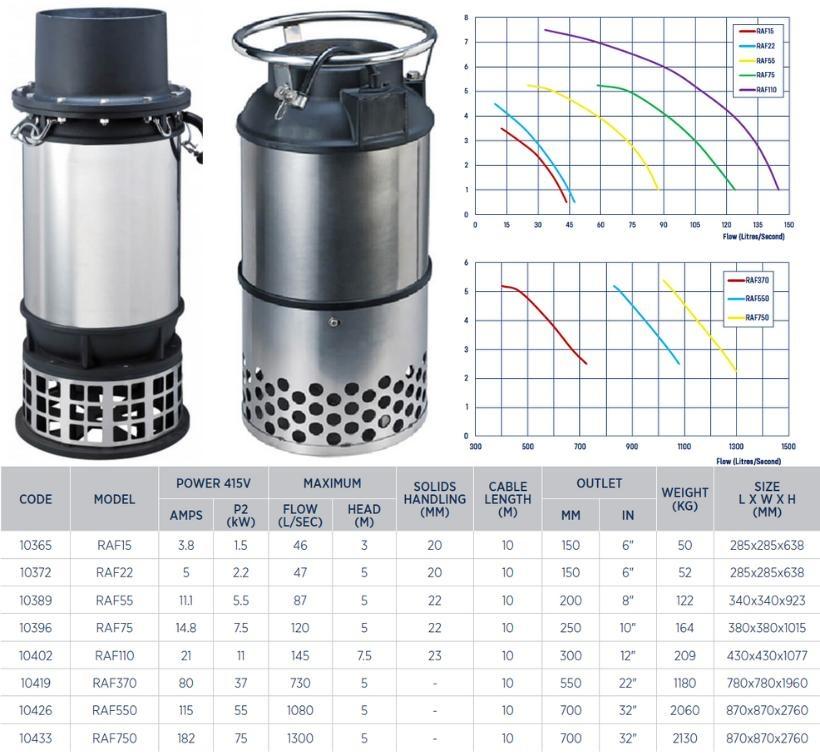

There are 8 axial flow pump sizes in this Reefe industrial submersible axial flow pump range with detailed specifications and flow charts below.

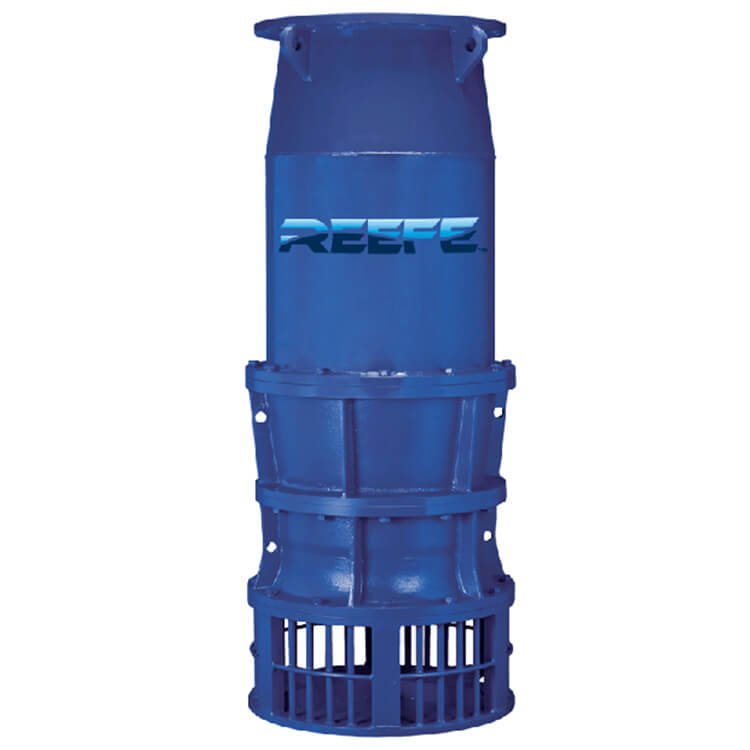

Note: pump may vary from pump photo shown.
