RAF550 Axial Flow Pump

Model Number: RAF550
Max flow: Tooltip 1080 L/sec (64,800 L/min)
Head/Draw: Tooltip 5m
Inlet/Outlet size: 700mm
Horse power: Tooltip 75HP, 55kw
Amp draw: 115 amps
Cable length: 10m
Voltage: 415 volt
Packaging Size (cm): 87 x 87 x 276cm
Packaging Weight (kg): 2060kg
Liquid to be pumped: Clean - Flood - Grey - Waste Water
Rating: Not Rated Yet

Industrial submersible Axial Flow water pumps are used extensively by local government authorities where very high flow is required for stormwater and flood control, aquaculture, high volume dewatering, flood and irrigation control, town water supply, wastewater treament facilities and environmental control projects. The axial flow pump range is also used extensively in industrial applications.

Compact and high performing these high quality, Reefe axial flow pumps have low noise levels, reduced cooling issues, making the installation and operating costs attractive. The unique design features of these industrial series axial flow pumps maximise their reliability to ensure minimal maintenance is required.

Reefe RAF axial flow pump range specifications - Water Pumps Now Australia

Reefe Axial Flow Pump Applications

  • Stormwater and flood control
  • Aquaculture
  • High volume dewatering
  • Flood irrigation
  • Wastewater treatment facilities
  • Wetland level control
  • Industrial applications

Reefe Axial Flow Pump Features

  •  Flow up to 1300 L/sec
  •  Maximum Head up to 7.5m
  • Thermal overload protection
  • Available in 415 Volt only
  • 1 Year warranty
  • Electrical Safety Approval to AS/NZS 60335.2.41

Reefe Axial Flow Pump Construction

  • Water cooled motor
  • Triple seal system
  • Free standing or well type
  • Ingress Protection IP68

There are 8 axial flow pump sizes in this Reefe industrial submersible axial flow pump range with detailed specifications and flow charts below.

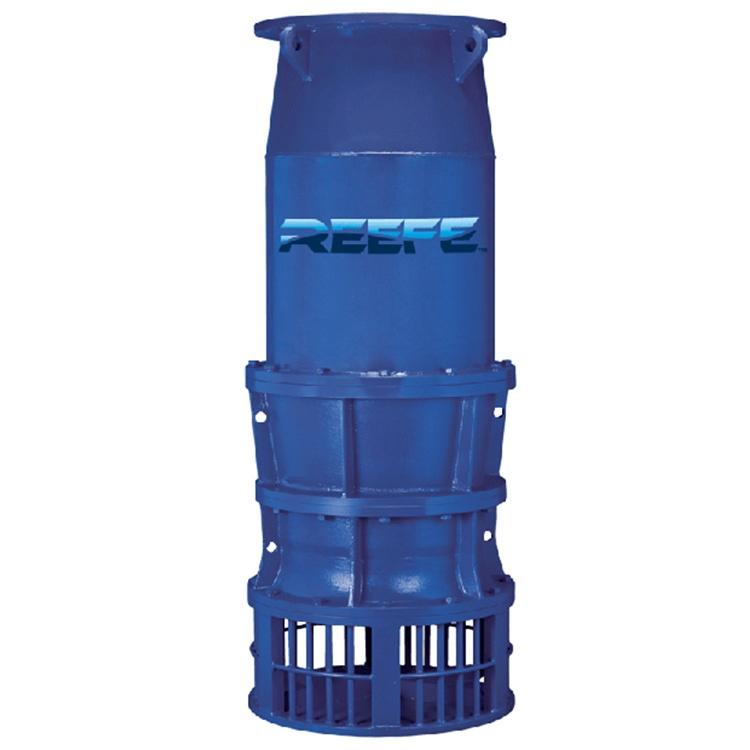

Note: pump may vary from pump photo shown.
