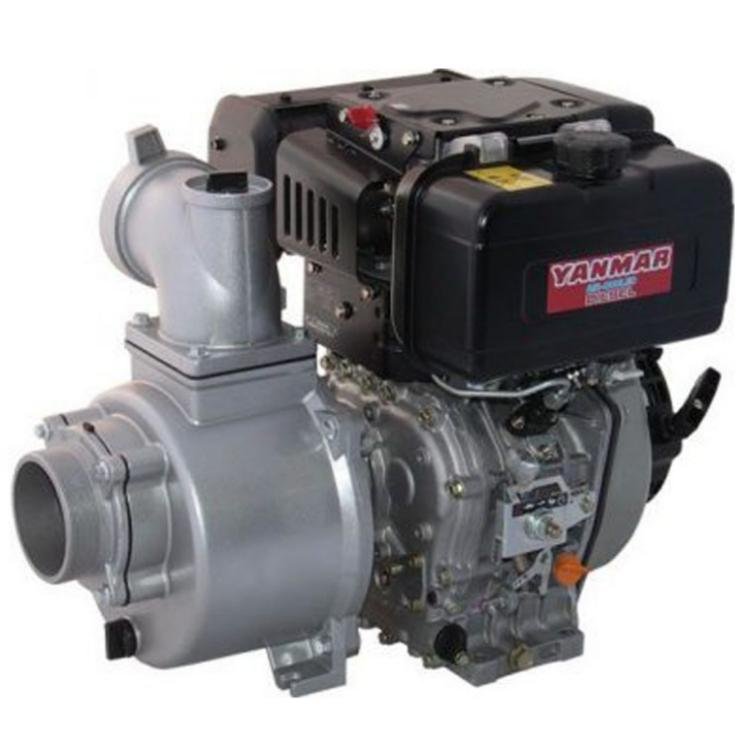

Yanmar L100 4″ Transfer Pump - Diesel Recoil Start

Model Number: RDY1004
Max flow: Tooltip 1350 L/min
Head/Draw: Tooltip 24m
Horse power class: 10 HP
Discharge size: 4 inch
Suction size: 4 inch
Pump body: Alloy
Liquid to be pumped: Fresh Water
$ 9198.00
Add to Cart
Rating: Not Rated Yet

Premium grade Yanmar powered pump manufactured with the best quality materials. The Yanmar RDY1004 with L100 engine is designed to transfer high volumes of water at low head with a water flow of up to 1350 L/min. Available with or without roll frame and a choice of electric start or recoil start these quality pumps with 4 inch suction size are a great performing transfer pump.

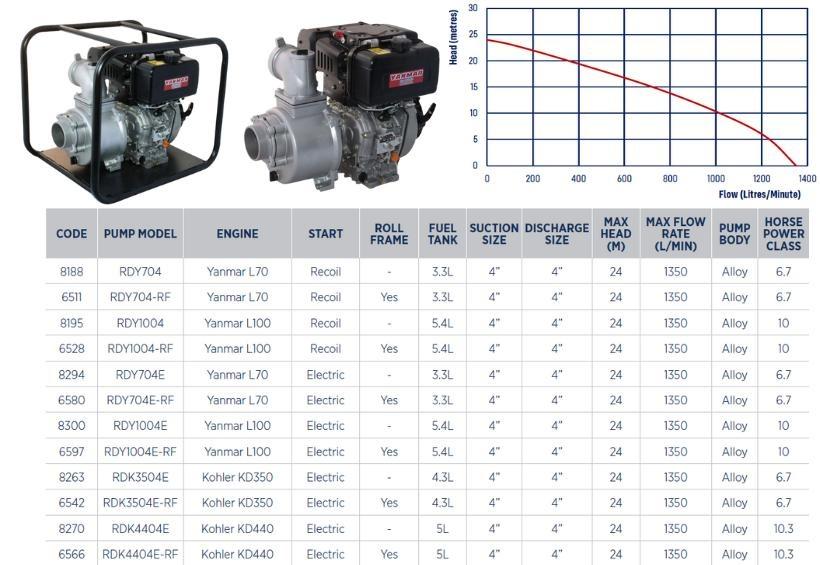

Diesel engine transfer pump with Kohler KD350 and KD440 engine specifications - Water Pumps Now

Yanmar L100 Diesel Water Transfer Pump Applications

  • Water transfer
  • Drainage
  • Water trucks
  • Stock watering
  • Suitable for fresh water only (clean or dirty)

Yanmar L100 Diesel Water Transfer Pump Features

  • Genuine Yanmar diesel engines
  • 2 year warranty on motor and pump
  • 4″ BSP fittings
  • Wiring harness available as an option for electric start models
  • Available in electric or recoil start
  • Available with roll frame: RDY1004-RF
  • This model: recoil start

Yanmar L100 Diesel Water Transfer Pump Construction

  • Cast iron impeller and diffuser
  • Alloy pump body
  • 1″ keyway shaft
