Multistage Submersible Pressure Pump - 105 L/min

Model Number: RSMP35
Max flow: Tooltip 105 L/min
Head/Draw: Tooltip 35m
Inlet/Outlet size: 25mm
Horse power: Tooltip 0.8HP
Amp draw: 3.7 amp
Cable length: 10m
Packaging Size (cm): 15 x 15 x 51cm
Liquids to be Pumped:

Clean rain water, town water

$ 1063.00
INCL GST
Add to Cart

The Reefe RSMP35 multistage submersible house pressure pump comes complete with an integrated pressure controller offering many benefits over standard submersible pumps with separate pressure controllers. Greater reliablility and quicker installation time.

Reefe Multistage Submersible Pressure Pump Applications

  • Clean water transfer
  • Household Supply
  • Rainwater Tanks
  • Industrial Cleaning
  • Commercial Laundries
  • Rain to Mains Backup Systems

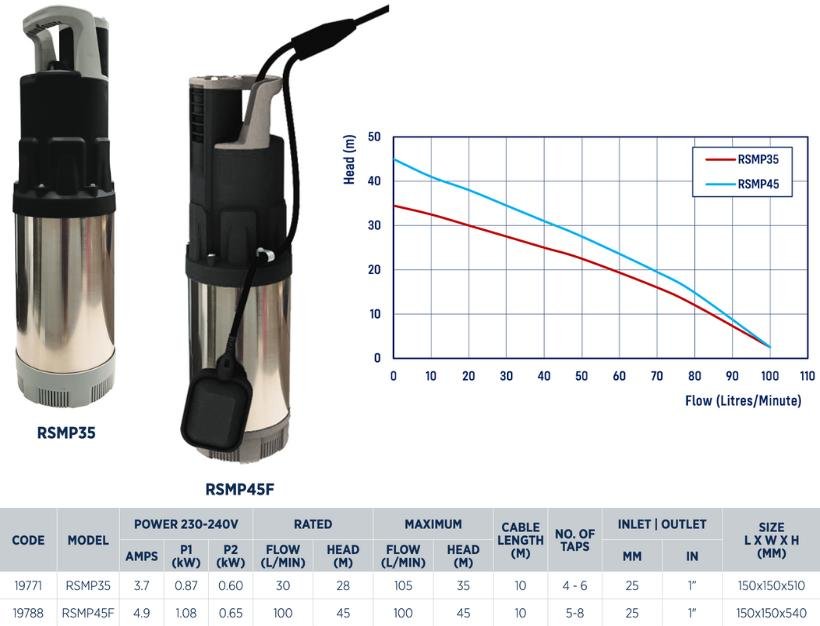

Reefe RSMP35 multistage submersible pressure pump specifications and performance graph

Reefe Multistage Submersible Pressure Pump Features

  • Integrated Pressure Controller with 220kPa cut-in
  • Integrated run-dry protection
  • Integrated leak detection function
  • Auto restart function
  • Integrated check valve
  • Compact design
  • Water-cooled motor
  • Thermal overload protection
  • Corrosion resistant
  • 2 year warranty
  • Electrical safety approval to AS/NZS60335.2.41
  • Certified to AS/NZS4020 for use with potable water
  • Base keeps the inlet out of sludge on the bottom of the rainwater tank
  • Maximum temperature 40°C

Reefe Submersible House Pressure Pump Construction

  • Grade 304 stainless steel outer casing
  • Polymer impellers and diffusers
  • Stainless steel grade 304 motor shaft
  • Plastic pump base and discharge body
  • Ingress protection IP68
  • Insulation Class F
