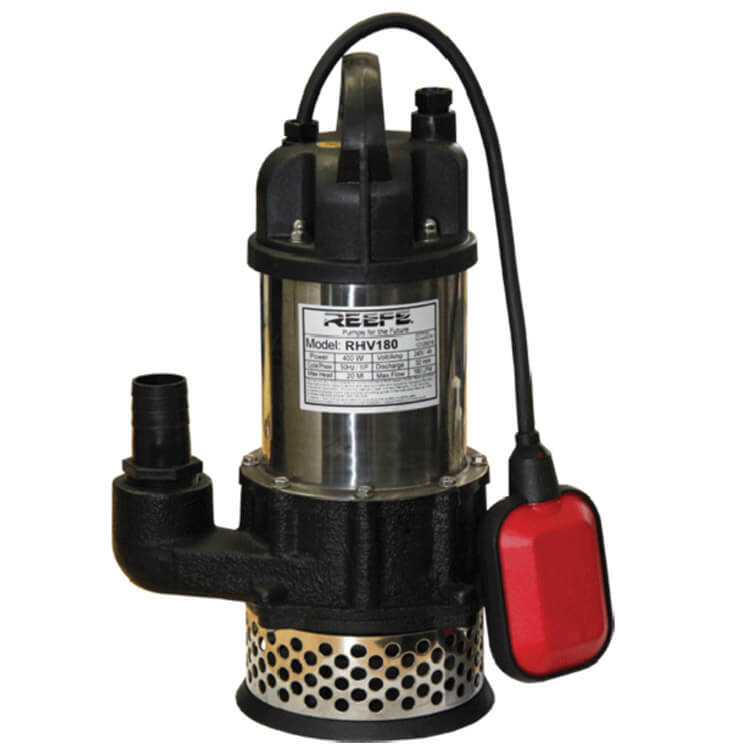

High Head Sump Pump

Model Number: RHV180
Max flow: Tooltip 180 L/min
Head/Draw: Tooltip 20m
Pump rating: Tooltip 130 L/min, 10m head
Inlet/Outlet size: 40mm
Solids handling: Soft solids to 8mm
Cable length: 10 m
Amp draw: 4 amp
Horse power: Tooltip 0.53HP, 0.4kw
Voltage: 240 volt
Packaging Size (cm): 22.7 x 16 x 37cm
Packaging Weight (kg): 15kg
Liquid to be pumped: Grey - Waste - Clear - Dirty Water
$ 838.00
$ 922.00
Add to Cart
Rating: Not Rated Yet

The Reefe high head sump pump with non-clogging twin impellers is specifically designed for sump pump out applications requiring longer pipe runs. Ideal for heavy duty, high lift situations. Industrial grade motor with insulation Class F. These high head sump pumps are available with standard or vertical float switch for the transfer of dirty, waste or grey water.

REEFE RHV180 Vortex Pump Applications

  • Dirty water
  • Wastewater treatment
  • systems
  • Greywater
  • Wastewater
  • Water transfer
  • Industrial applications

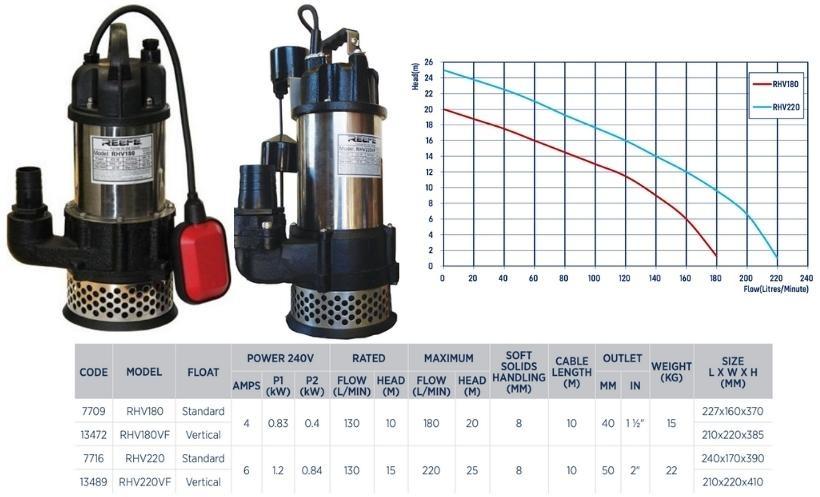

Reefe RHV high head sump pump series specifications

REEFE RHV180 Vortex Pump Features

  • Non-clogging high head twin impeller pump
  • Soft solids handling 8mm
  • Liquid temperature 0°C to 40°C
  • Thermal overload protection
  • Robust particle screen
  • Mac 3 float switch
  • 2 Year warranty
  • Electrical Safety Approval to AS/NZS 60335.2.41

REEFE RHV180 Vortex Pump Construction

  • Grade 304 stainless steel outer casing
  • Twin cast iron impellers
  • Dual mechanical seal with oil chamber
  • MAC 3 float switch or vertical float switch • Stainless steel particle screen
  • Ingress Protection IP68
  • Insulation Class F
