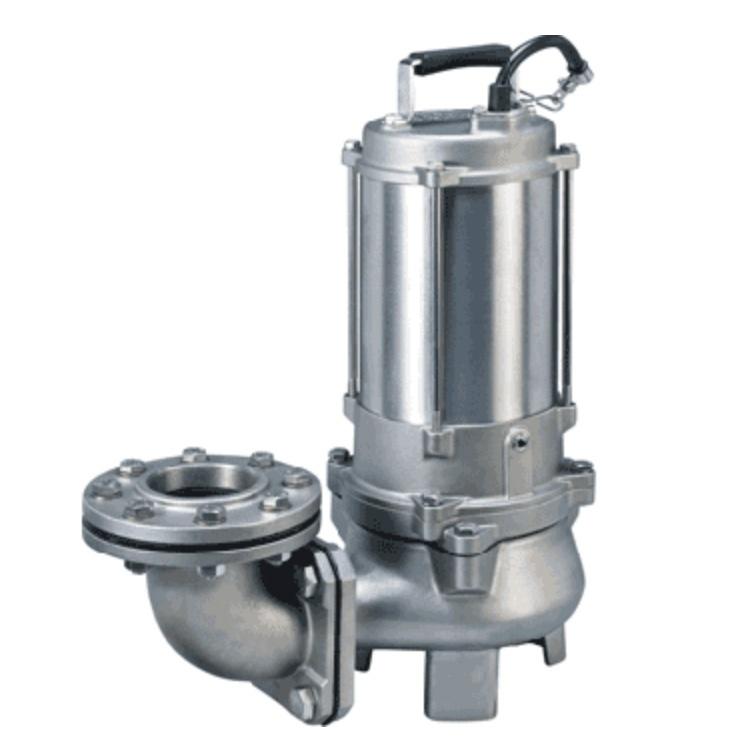

Reefe SSV150 Stainless Steel Submersible Vortex Pump

Model Number: SSV150
Max flow: Tooltip 680 L/min
Head/Draw: Tooltip 16m Head
Inlet/Outlet size: 50mm
Solids handling: 50mm
Impellers: Vortex
Amp draw: 10 amps
Horse power: Tooltip 2HP, 1.5kw
Voltage: 240 volt
Packaging Size (cm): 39.5 x 18.6 x 52.6 cm
Packaging Weight (kg): 34.5kg
Liquid to be pumped: Wastewater - Corrosive chemicals - Aggressive liquids
$ 4419.00
INCL GST
Add to Cart

The REEFE Stainless Steel Series Vortex Pumps are constructed of grade 316 stainless steel, and are designed for commercial and industrial wastewater transferring, dewatering applications and use in manufacturing processes. The REEFE SSV Series can be used to transfer effluent and are suited for use in some diluted corrosive and aggressive liquid applications. Incorporating Non-Clog Vortex impellers for handling of high flow demands and capacity to handle some soft solids in suspension. Meaning down time will be minimised, ultimately saving you time and money on your pumping application. Each pump is 100% tested to ensure quality and reliability for your peace of mind.

Reefe SSV series stainless steel pumps for wastewater specifications and performance graphs

REEFE SSV150 Stainless Steel Vortex Pump Applications

  • Chemical plants
  • Food processing
  • Wineries
  • Industrial process
  • Trade waste

REEFE SSV150 Stainless Steel Vortex Pump Features

  • Each pump is 100% tested to ensure quality and reliability for your peace of mind
  • High efficiency dry type motor for reliable and economical operation
  • Auto reset thermal overload protection for longer motor life
  • Vortex impeller with non-clog design for low maintenance operation
  • Class F motor insulation for higher thermal tolerance in operation
  • 1 year warranty

REEFE SSV150 Stainless Steel Vortex Pump Construction

  • Stainless Steel motor frame, pump handle 410 stainless steel motor shaft
  • 316 stainless steel bearing and mechanical seal brackets, casing, flange, impeller and
    base
  • Dual mechanical seal in CA/CE – SIC/SIC.
  • Hermetically sealed to be watertight, dust-tight, and completely submersible, to ensure trouble free operation
  • Double shielded ball bearing.
  • Fluid temperature 0 - 50°C.
  • Viton oil seal
  • 20m H07RNF Cable Length
  • Insulation Class F
