Submersible Rain To Mains Pump System

Model Number: RM5000-6 w RPS57E + RM1600-2
Max flow: Tooltip 90 L/min
Head/Draw: Tooltip 57m
Horse power: Tooltip 0.75kw. 6 amp
Voltage: 240 volt
Cable length: 10 metres
Packaging Size (cm): 12.7 x 61cm
Liquid to be pumped: Clean water
$ 1686.00
INCL GST
Add to Cart
Rating: Not Rated Yet

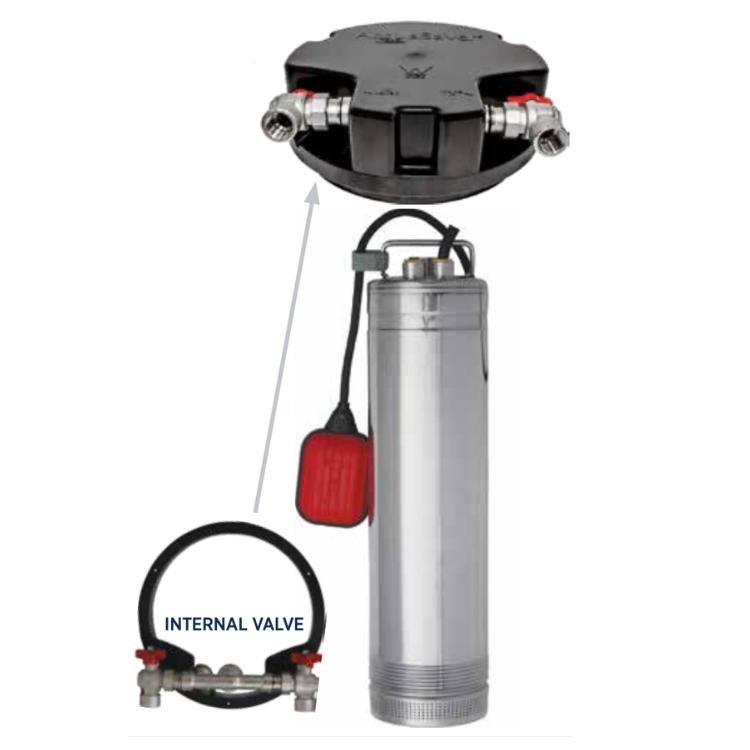

The RainPro RM5000-6 submersible rain to mains pressure pump system with RM1600-2 valve is designed for speed of installation. There are no cables, no float, no solenoid, no electronic controls making a simple, effective, affordable, submersible rain to mains system. The RM5000-6 hydraulic valve stops flow of mains supply while rain water is being pumped to help conserve water. This rain to mains system is suited for applications supplying laundry and toilets, and is also suitable for cabins or small houses with one bathroom. For larger whole house supply, we recommend to use the RM1500-2 hydraulic valve. The system includes a 315mm valve enclosure for mounting to the top of the tank.

Submersible Rain To Mains Pump System Application

  • Domestic toilet and laundry
  • Small house / cabin / granny flat (1 bathroom)
  • Small commercial / industrial*
  • Garden irrigation *
  • Toilet blocks (up to 6 fixtures)*
  • Construction / mine site offices*

*Check specifications required

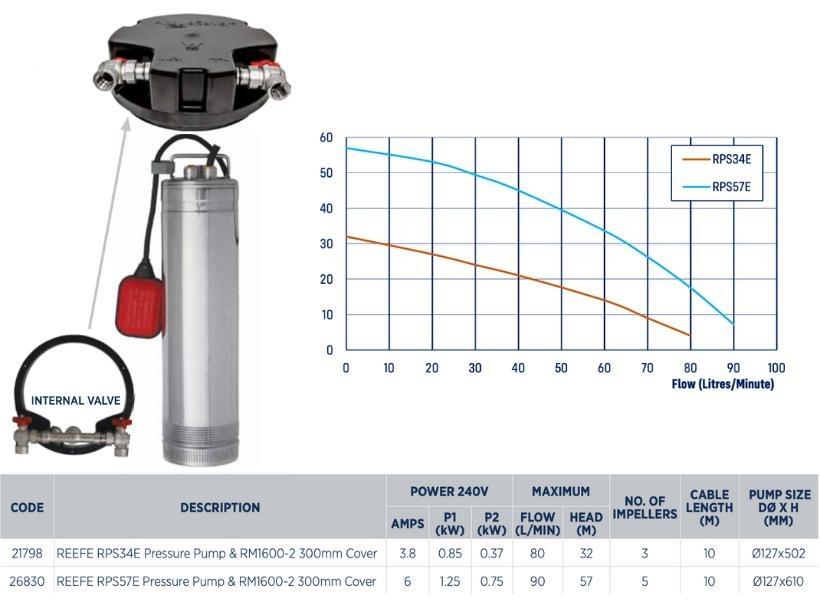

Reefe RM5000 6 submersible rain to mains pressure pump system specifications

Submersible Rain To Mains Pump System Construction

  • High quality European made pressure pump
  • Supplied with RM1600-2 Changeover valve
  • Stainless steel casing and shaft
  • Aluminca Graphite lubricated mechanical seal for reliability
  • Pump includes float switch
  • Pump includes integrated pressure controller
  • 10m power cable

Submersible Rain To Mains Pump System Features

Pump

  • Rains to Mains switch over system allows mains water to flow if tank water is sufficient
  • Valveset in 100% Hydraulic - no electronics
  • Watermark certified, includes dual check valve on mains
  • Reliable, efficient power saving performance
  • Automatic pressure controller giving consistent pressure supply
  • Run dry protection and thermal overload protection for the pump
  • Internal blockage detection system, which shuts down the pump if debris obstructs the internal check valve
  • Compact design, water cooled motor
  • 2 Year Warranty
  • Certified to AS/NZS4020 for use with potable water

RM system

  • Rains to Mains valve included in 315mm enclosure
  • Hol for top of tank 290mm
  • Includes two ball valves
  • Pre-assembled
