RM1500-2 Rain to Mains Changeover Valve

Model Number: RM1500-2
Max flow: Tooltip 100 L/min
Pressure: Tooltip 350 kPa minimum pump pressure
Maximum pressure: 1000 kPa maximum mains pressure
Inlet/Outlet size: Rainwater and mains 25mm (1 inch FBSP)
Liquid to be pumped: Clean water
$ 563.00
Add to Cart
Rating: Not Rated Yet

The RM1500-2 is an automatic hydraulically operated mains to rainwater changeover valve. These changeover valves are ideal for rainwater harvesting - switches from mains to tank whenever tank water is being pumped and automatically defaults to mains in the event of a power or pump failure, and when the rainwater is depleted. This unique rain to mains changeover valve comes with dual 25mm outlets, giving the user flexibility in both domestic and commercial applications.

IMPORTANT: This product must be used with pumps with an auto restart pressure controller.

Rain to Mains Changeover Valve Application

  • Whole house supply up to 6 bathrooms
  • Toilet blocks
  • Garden irrigation
  • Ablutions blocks
  • Hotels and motels
  • Factories and warehouses
  • Units and complexes
  • Council parks irrigation

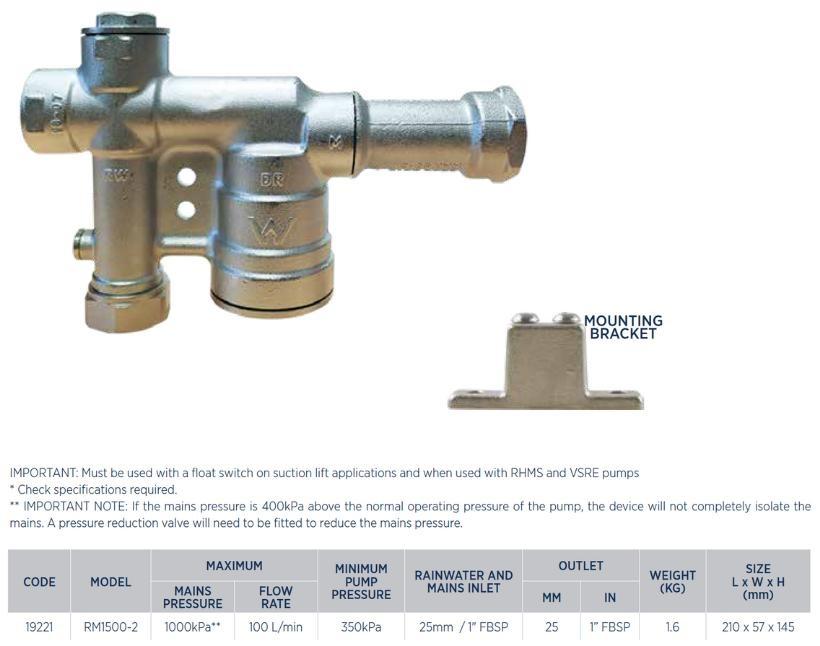

Rainpro RM1500 2 rain to mains changeover valve 25mm

Rain to Mains Changeover Valve Features and Benefits

  • Simple and easy to install
  • Full flow 25mm / 1″ outlets
  • Minimal pressure reduction
  • No regular maintenance required
  • Suitable for external and submersible pressure pumps
  • No float required on auto restart pumps
  • Can be mounted directly onto external pumps
  • Certified dual check valve for back flow prevention
  • Maximum temperature 40°C
  • Dual outlets (use one or both)

Rain to Mains Changeover Valve Construction

  • Nickel plated DZR brass components
  • No electrical components - 100% hydraulically operated

IMPORTANT: Must be used with a float switch on suction lift applications and when used with Reefe RHMS and Reefe VSRM pumps.

Check specifications required.

IMPORTANT NOTE: If the mains pressure is 400kPa above the normal operating pressure of the pump, the device will not completely isolate the mains. A pressure reduction valve will need to be fitted to reduce the mains pressure.
