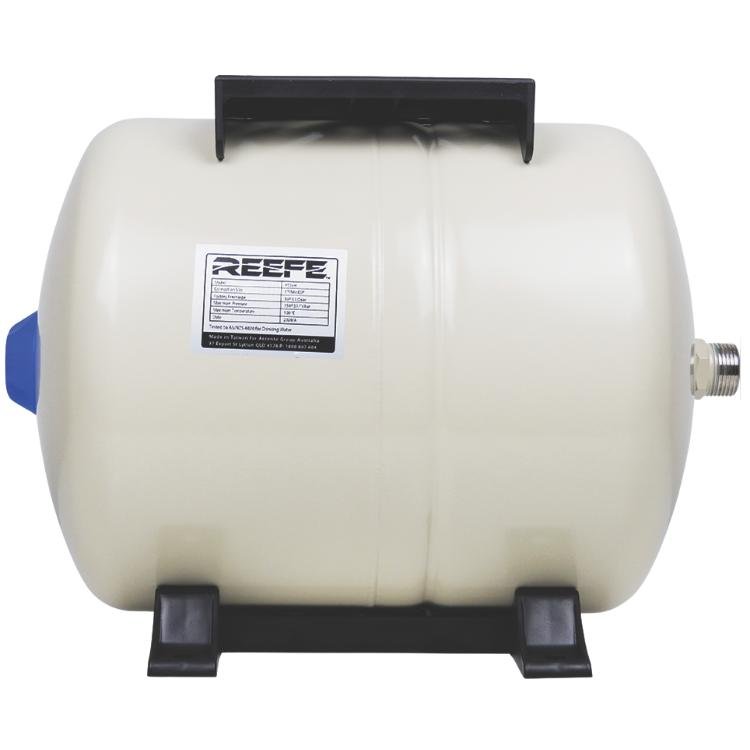

Pressure Tank - 24 litre - 16 Bar

Model Number: PT24.16
Pressure setting: Factory precharge: 4.0 bar
Maximum pressure: 16.0 bar
Inlet/Outlet size: 25mm MBSP
Packaging Size (cm): 28 x 28 x 52cm
Packaging Weight (kg): 5.7kg
$ 357.00
INCL GST
Add to Cart

Pressure tanks are essential for whole house applications, toilet blocks and larger pressure systems. Even basic domestic applications will benefit from the inclusion of a pressure tank. REEFE pressure tanks are manufactured with a food-grade Polypropylene Liner and a Heavy-Duty Butyl Rubber diaphragm. The brass air valve is sealed by a threaded O-ring valve cap to prevent air leaks. The threaded water connection fitting is stainless steel to avoid corrosion, and provides a unique water/air seal preventing leaks. There are no wetted steel parts to avoid corrosion. All the internal parts including the air valve are smooth to prevent damage to the diaphragm. The steel tank exterior is protected with a triple coat paint finish.

REEFE Pressure tank 24 Litre - 16 Bar Applications

  • Domestic and commercial
  • Irrigation systems
  • Toilet blocks
  • Hydraulic hammer arresting
  • Multi-unit dwellings
  • Pressure systems

16 bar pressure tank range - Water Pumps Now Australia

REEFE Pressure tank 24 Litre - 16 Bar Features

  • Reduces cycling of the pump to extend pump life
  • May also reduce electricity consumption as the pump does not start on every use of a tap
  • Adjustable pressure via leak-proof standard air valve
  • Certified to AS/NZS4020 for use with potable water
  • Watermark Approved

REEFE Pressure tank 24 Litre - 16 Bar Construction

  • Food-grade polypropylene liner and heavy-duty butyl rubber diaphragm
  • Stainless steel threaded inlet
  • No wetted steel parts for prevention of corrosion
  • Protected with a triple coat paint finish

Suggested Pressure Settings

  • Pump with pressure controller: 70% of maximum pump head pressure
  • Pumps with Pressure Switch: 10% below cut-in pressure
  • Pumps with VSD Controller: 55% of maximum operating pressure
