Reefe End Suction Centrifugal Pump Range

Model Number: IS02858 SERIES

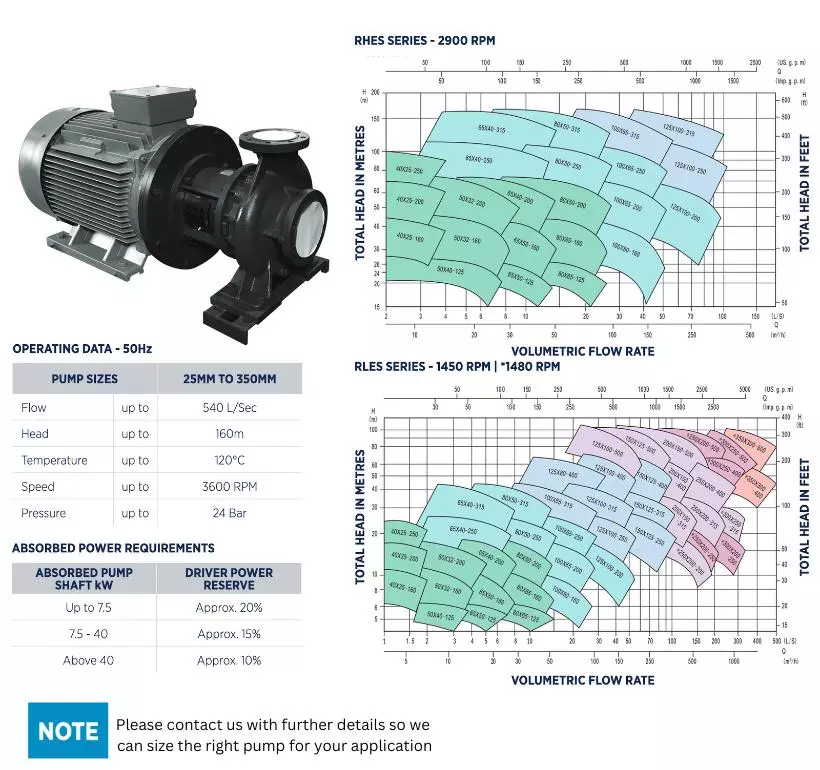

Max flow: Tooltip up to 540 L/sec
Head/Draw: Tooltip up to 160m

The REEFE End Suction Centrifugal Pumps and perfect for the agricultural markets for water transfer and operation of large scale irrigation. Manufactured to ISO2853 specifications for convenience transition. Peace of mind in knowing these pressure pumps will bolt in, right where your old ISO spec pumps was. With the back pull out design there is no need to disturb your pipe work during maintenance and pump servicing.

NOTE: There are many different versions available in this highly rated pressure pump range which replaces all pumps of its type internationally. Contact us to discuss your application and the best pump version to suit.

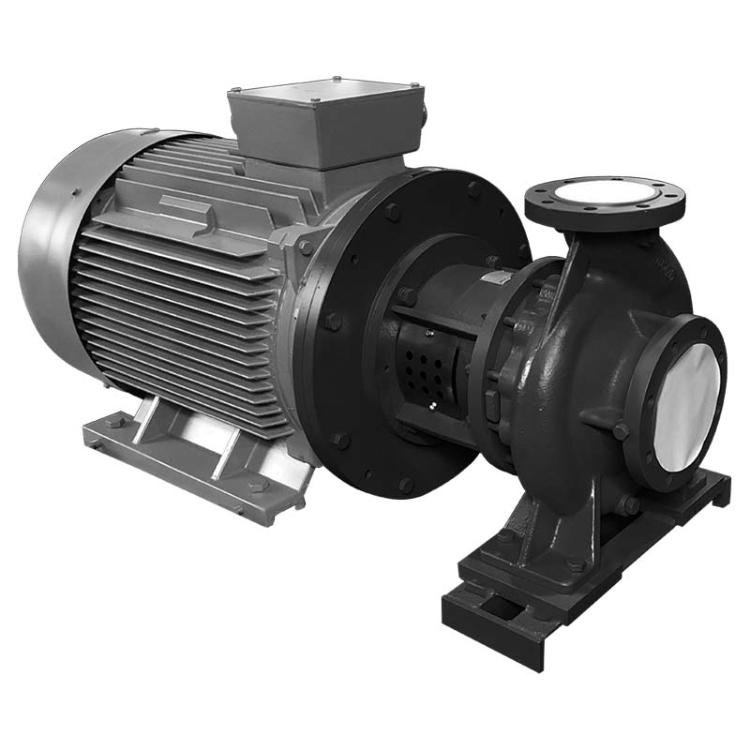

Reefe end suction centrifugal pump range



Reefe End Suction Centrifugal Pump Applications

  • Agriculture
  • Broadacre irrigation
  • Water transfer
  • Flood Irrigation
  • Municipal Water transfer
  • Building services
  • Aquaculture
  • Mine dewatering

Reefe End Suction Centrifugal Pump Features

  • Back pull-out design allows for easy maintenance and repair by removing the rotating elements
  • High quality triple coatings inside and out to maximise efficiency and increase marginal gains
  • Unique lip seal reducing ingress of moisture or foreign matter into the bearing box, ensuring a longer service life
  • High Quality Single Mechanical seal fitted to tapered and keyed shaft for positive locking while in operation
  • 2 year manufacturers warranty

Reefe End Suction Centrifugal Pump Construction

  • Heavy duty, manufactured in high strength cast iron with lifting lugs and support foot
  • Heavy Duty NSK greased for life bearings reducing maintenance.
  • High Quality Single Mechanical seal (SIC/SIC)
  • Stainless Steel tapered and keyed shaft design
  • Stainless Steel impeller
  • Close couple motor as standard – Long couple available on request
