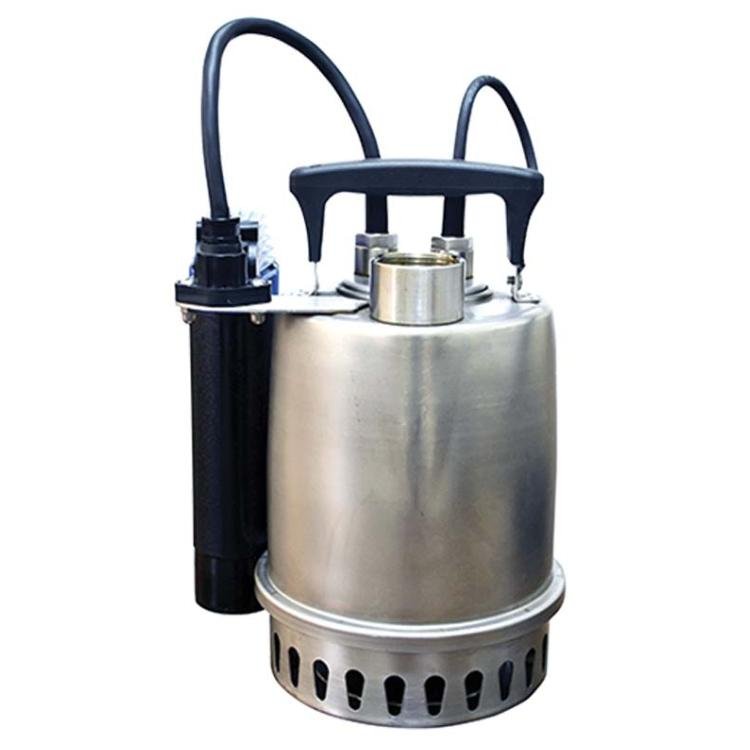

Reefe RDC160VF Double Case Submersible Drainage Pump

Model Number: RDC160VF
Max flow: Tooltip 160 L/min
Head/Draw: Tooltip 9m
Solids handling: Soft solids handling - 2mm
Inlet/Outlet size: 32mm outlet
Horse power: Tooltip 0.25kw
Amp draw: 1.7 amps
Voltage: 240 volt
Packaging Size (cm): 16.7(L) x 120.9(W) x 27.4(H)
Packaging Weight (kg): 5.7kg
Liquid to be pumped: Puddle, rainwater & sump water
$ 798.00
INCL GST
Out of stock
Notify Me

The REEFE RDC Series is a compact, lightweight, single stage, double case submersible drainage pump range with a semi open impeller. These drainage pumps are designed for non-aggressive liquid transfer and pumping of storm water and greywater containing particles up to a size of 10mm. The stainless steel construction means it is built to last. Ideal for stormwater applications and use with draining those problem areas in the back yard. The double case design means the motor is cooled by the water passing over it which allows the pump to operate at lower levels for longer than side discharge pumps.

REEFE RDC160VF Drainage Pump Applications

  • Clean Water Pumping
  • Low Level Pumping for maximum drainage
  • Domestic Drainage
  • Stormwater
  • Emergency Flooding Applications
  • Tank & Pool Emptying

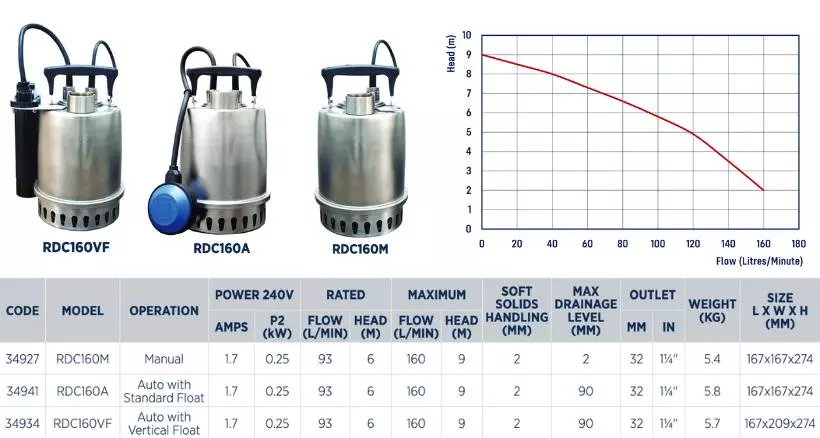

Reefe RDC160VF double case submersible drainage pump specifications and performance graph

REEFE RDC160VF Drainage Pump Features

  • Durable Stainless Steel Casing
  • Drainage to 2mm
  • Compact Top Discharge Design Reduces Space for easy installation in confined spaces and small pits
  • Water Cooled Double Cased design allows pumps run safely when only partially submerged
  • Every model undergoes hydrostatic testing for leakage from the casing and mechanical seals.
  • Thermal Overload Protection
  • Maximum Immersion Depth 5m
  • Maximum Liquid Temperature 50˚C
  • 2 year warranty

REEFE RDC160VF Drainage Pump Construction

  • Grade 304 Stainless Steel Pump Body
  • Grade 304 Stainless Steel Impeller
  • 32mm (1¼″) Outlet
  • Single mechanical seal in oil bath with NBR Spring Type Oil Seal
  • Mechanical Seal: Carbon /Graphite - Ceramic / NBR / 304
  • Bearing: Double Sealed with Steel Cage
  • 2 Pole 50Hz 2850rpm Motor
  • 8uF Capacitor Inbuilt
  • Thermal Overload Protection
  • Insulation Class F (155˚C)
  • Ingress Protection IP68
  • 10m Power Cable
  • Options –Standard or Vertical Float, or, Manual
