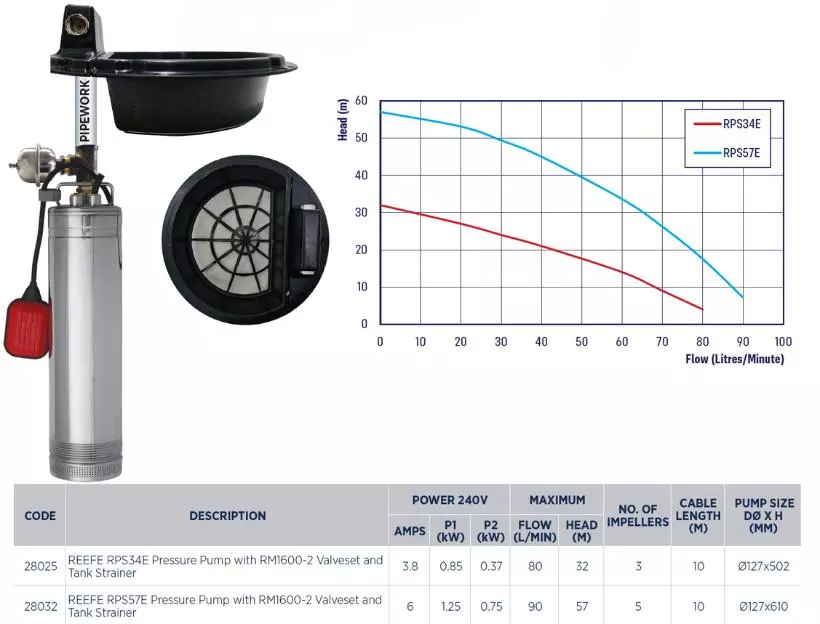

Reefe RM5000-7 Submersible Rain To Main Pump System

Model Number: RM5000-7 w RPS34E + RM1600-2
Max flow: Tooltip 80 L/min
Head/Draw: Tooltip 32m
Horse power: Tooltip 0.37kw. 3.8 amp
Voltage: 240 volt
Cable length: 10 metres
Packaging Size (cm): 12.7 x 50.2cm
Liquid to be pumped: Clean water
$ 1452.00
INCL GST
Add to Cart

The RainPro RM5000-7 submersible rain to mains pressure pump system with RM1600-2 valve is designed for speed of installation. There are no cables, no float, no solenoid, no electronic controls making a simple, effective, affordable, submersible rain to mains system. The system features the changeover device integrated into the tank strainer. This makes the whole installation neater, easier and quick, for the installer. The simplicity of the pump system has the added benefit of being very affordable. The RM5000-7 stops flow of mains supply while rain water is being pumped to help conserve water. This rain to mains system is suited for applications supplying laundry and toilets, and is also suitable for cabins or small houses with one bathroom. For larger whole house supply, we recommend to use the RM1500-2 hydraulic valve.

Submersible Rain To Mains Pump System Application

  • Domestic toilet and laundry
  • Small house / cabin / granny flat (1 bathroom)
  • Small commercial / industrial* ;
  • Garden irrigation *
  • Toilet blocks (up to 6 fixtures)*
  • Construction / mine site offices*

*Check specifications required

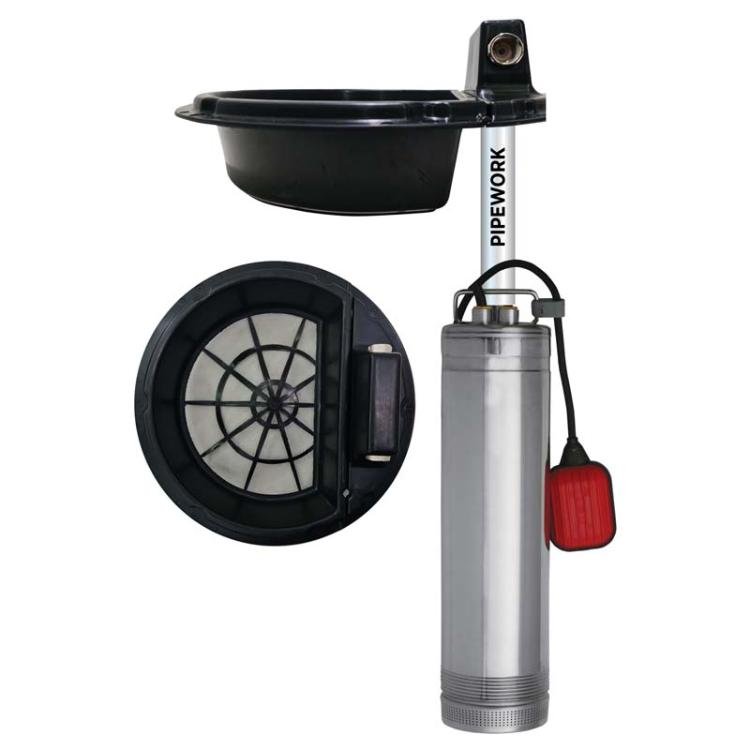

Reefe RM5000-7 submersible rain mains pump system



Submersible Rain To Mains Pump System Construction

  • High quality European made pressure pump
  • Supplied with RM1600-2 Changeover valve
  • Stainless steel casing and shaft
  • Alumina Graphite lubricated mechanical seal for reliability
  • Pump includes float switch
  • Pump includes integrated pressure controller
  • 10m power cable

Submersible Rain To Mains Pump System Features

Pump

  • Rains to Mains switch over system allows mains water to flow if tank water is unavailable, and restricts mains flow if tank water is sufficient
  • Valveset in 100% Hydraulic - no electronics
  • Watermark certified, includes dual check valve on mains
  • Reliable, efficient power saving performance
  • Automatic pressure controller giving consistent pressure supply
  • Run dry protection and thermal overload protection for the pump
  • Internal blockage detection system, which shuts down the pump if debris obstructs the internal check valve
  • Compact design, water cooled motor
  • 2 Year Warranty
  • Certified to AS/NZS4020 for use with potable water

RM system

  • Rains to Mains valve included in 400mm leaf strainer
  • Hole for top of tank 400mm
  • Provision for pump power cable exit
  • Total diameter 430mm
  • Pre-assembled
