Reefe VSRE40-60D dual multistage variable speed pump set
Print

Reefe Dual Multistage Variable Speed Pump Set - 11 Sizes

Max Flow Rate: 130 to 720 L/min range
Max Head: 38m to 92m range
Power: 240v
Brand: Reefe
SKU: VSRE40-60D to VSRE57-350D
FREE SHIPPING*
$ 9872.00

Description

The REEFE VSRE series of dual multistage variable speed pumps are designed with advanced technologies for super efficient flow of clean water in various applications. Available in an extensive range of sizes, these market leading variable speed pumps are built to meet varying demands and requirements. European quality, VSRE pumps feature a highly durable construction to guarantee extended service life. Assembled with a variable speed drive, the pump can respond to demands in application, guaranteeing perfect pressure.

Please note for pressure boosting applications:
The SP value can be set to the desired output pressure irrespective of the incoming mains pressure. However, this value MUST NOT exceed the sum of the Incoming Mains pressure value plus (80% of the rated pressure of the pump). Be mindful too, of the 500kPA limitation on household fittings.
In order not to over specify the selected pump, please call 1800 807 604 to verify that the correct pump is selected for the mains boosting application.

NOTE: Pricing shown is for the VSRE40-60D. These variable speed pump sets are typically packaged to suit a specific application and site specific requirement. To select and specify the correct pump and accessories required. Please contact us for a quote.

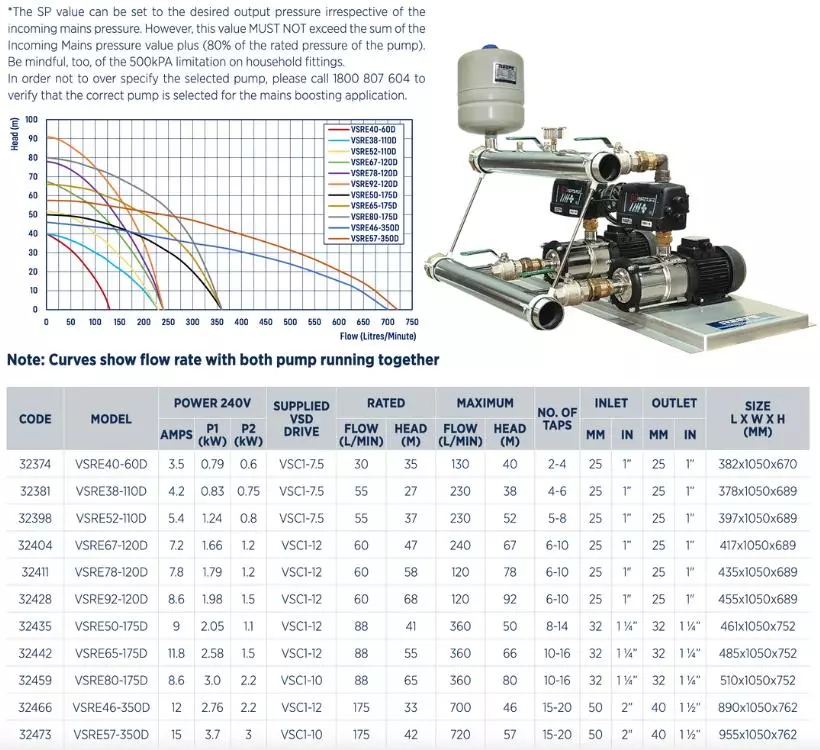

Reefe VSRE series dual multistage variable speed pump set specifications and graph



Reefe Dual Multistage Variable Speed Pump Applications

  • Whole house supply
  • Amenities blocks, hotels, restaurants
  • Irrigation Supply
  • Mains Pressure
  • Boosting

Reefe Dual Multistage Variable Speed Pump Features

  • Highly efficient, energy saving design
  • Heavy duty, durable construction for extended service life
  • Externally ventilated motor for superior heat control
  • Automatic restart after loss of prime event
  • Certified to AS/NZS4020 for use with potable water
  • Maximum water temperature 35°C
  • 3 year warranty

Reefe Dual Multistage Variable Speed Pump Construction

  • Stainless Steel AISI304 pump body and impeller
  • Stainless Steel AISI416 shaft
  • Carbon-graphite mechanical seal
  • Thermal overload protection
  • 1.5m power cable
  • Quick plug connection
  • Supplied with 18L pressure tank
  • Ingress protection IP44
  • Insulation Class F
