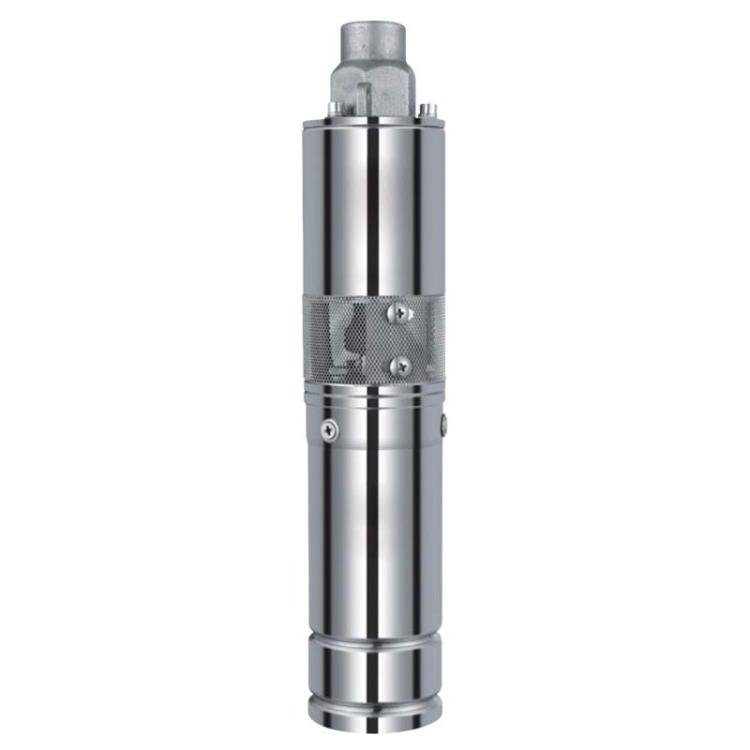

Solar Powered Submersible Bore Hole Pumps 5.2m3/hr

Model Number: RS4C5.2-101
Max flow: Tooltip 5.2 m3/Hr
Head/Draw: Tooltip 101m
Inlet/Outlet size: 32mm
Packaging Size (cm): 970 x 230 dia x 138mm
Liquid to be pumped: Clean water
$ 1758.00
INCL GST
Add to Cart

REEFE Solar Powered Submersible Bore Hole Pumps offer the ultimate in energy efficiency using 100% renewable energy directly from the sun. Includes easy to use MPPT maximum efficiency start controller. The pre-coupled quality and reliable 100% tested motor / pump assembly, means you can be up and running quickly. This specific range offers models with either helical rotor or centrifugal impellers.

Reefe solar bore pumps specifications and performance graphs

Reefe Submersible Bore Pump Applications

  • Submersible bore hole installations
  • Stock watering
  • Tank filling
  • Water supply
  • Water transfer

Reefe Submersible Bore Pump Features and Benefits

  • Automatic restarting for minimal user
    intervention. Starts and stops each morning and evening
  • Loss of prime function for pump protection
  • Under and over voltage protection to prevent damage to motor
  • MPPT tracking for efficient low light operation
  • Soft start function to remover hammer on hydraulic system
  • 2 year warranty

Submersible Bore Pump Construction

  • Stainless Steel construction of motor casing, pump casing, impellers, oil cylinder, coupling and fixings
  • Quality NSK bearings
  • Stainless steel helical shaft with rubber displacement body
  • Permanent magnet DC brushless synchronous motor
  • IP65 controller
  • 2m Cable Length
