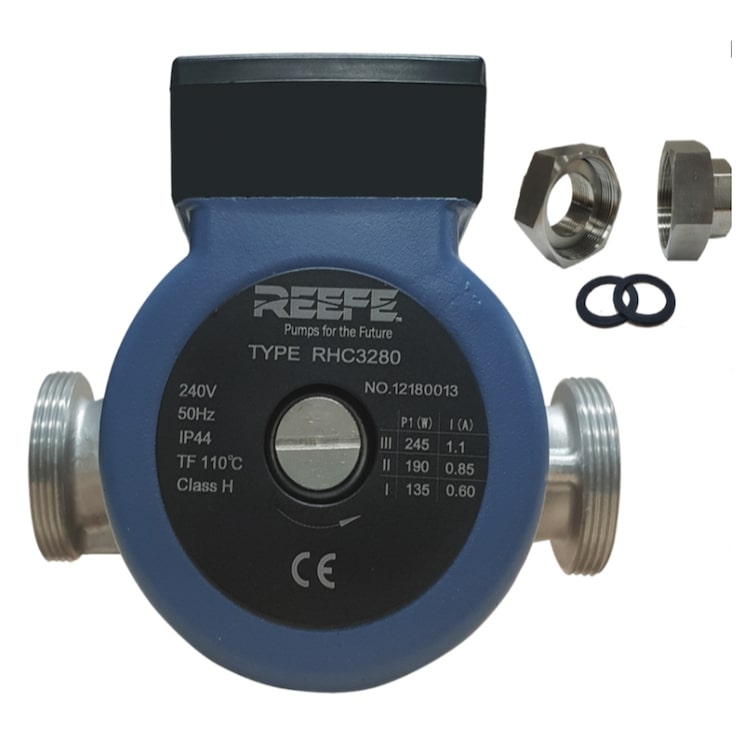

RHC3280 Hot Water Circulating Pump

Model Number: RHC3280
Head/Draw: Tooltip 8.2m
Max flow: Tooltip 166 L/min
Inlet/Outlet size: Ports 2 inch MBSP/ Union (adaptor) 1 1/4 inch MBSP
Liquid to be pumped: Cold or hot water 2 to 100 degrees
Horse power: Tooltip 0.32HP, 245W maximum
Amp draw: 1.1 amp
Voltage: 240 volt
Liquid to be pumped: Clean water
$ 881.00
INCL GST
Add to Cart

Three speed, hot water circulating pump, ideal for ring main applications in domestic or commercial systems. Quiet, reliable and low power consumption are just some of the great features of this 3 speed circulating pump which comes standard with brass barrel union.

Reefe RHB1590.SS Hot Water Circulator Pump Applications

  • Hot water circulating
  • Commercial or domestic hot water systems
  • Air-conditioning cooling systems
  • Solar hot water systems
  • Hotels & Motels

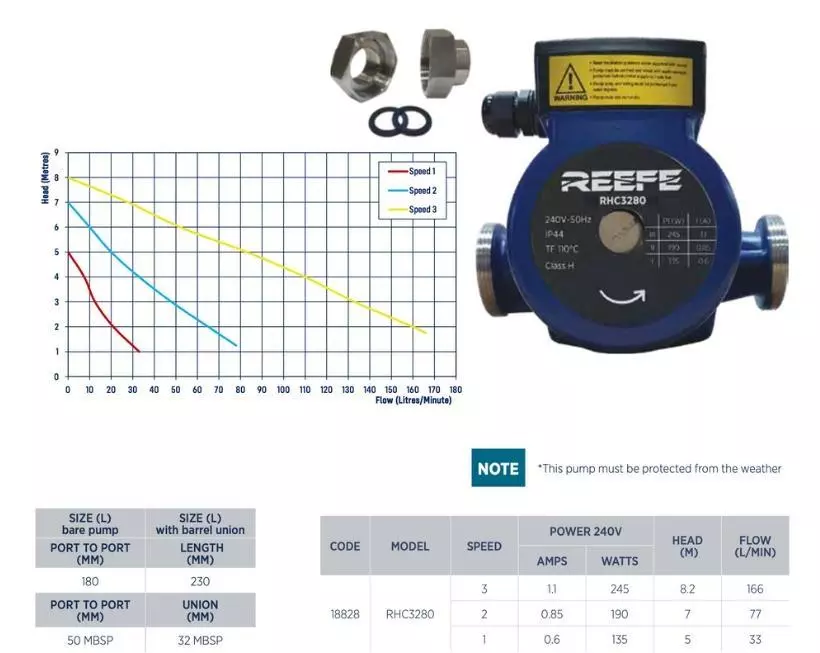

Reefe RHC3280 hot water circulator pump specification Water Pumps Now

Reefe hot water circulator pump features

  • In line pump casing
  • 3 speed variable adjustment
  • Low power consumption
  • Reliable, maintenance free
  • Maximum operating pressure 10 bar
  • Thermal overload
  • Liquid temperature 2°C to 110°C
  • Maximum ambient temperature 40°C
  • Options for 32mm FBSP or 50mm MBSP connections
  • 2 year warranty
  • Certified to AS/NZS4020 for use with potable water

Reefe RHB1590.SS hot water circulator pump construction

  • Stainless steel pump casing
  • Ceramic motor shaft
  • PES composite impellers ceramic bearing and EPDM seals
  • Stainless steel barrel unions supplied with pump
  • Ingress Protection IP44
  • Insulation Class H
