RHB1590.SS Hot Water Circulator Pump

Model Number: RHB1590.SS
Max flow: Tooltip 23 L/min
Maximum pressure: 500 kPa maximum mains pressure
Head/Draw: Tooltip 9m
Inlet/Outlet size: Ports 3/4 inch MBSP/ Union (adaptor) 1/2 inch MBSP
Liquid to be pumped: +2 °C - + 60°C
Horse power: Tooltip 1.05 kw, 1.4HP
Amp draw: 0.48 amp
Voltage: 240 volt
Liquid to be pumped: Clean water
$ 616.00
INCL GST
Add to Cart

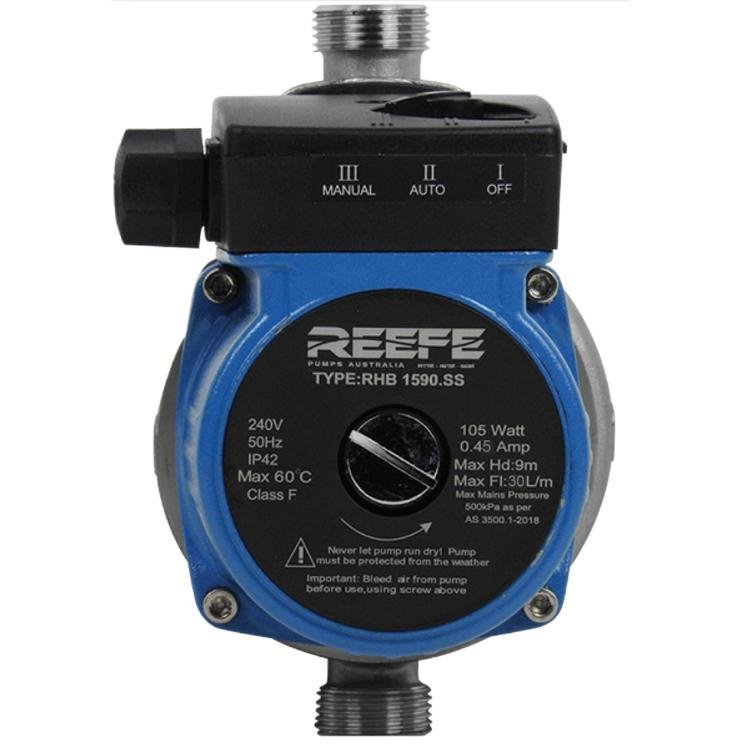

The reefe RHB1590 hot water circulator pump is a booster pump designed for boosting water pressure in domestic, hot and cold water applications for potable (drinking) water. The circulator pump provides additional pressure to showers, taps and similar outlet points. The RHB1590 is designed to automatically boost the flow to an outlet and is activated by an inbuilt flow switch. The hot water circulator pump incorporates a flow switch which starts or stops the pump when a tap is turned on or off.

Reefe RHB1590.SS Hot Water Circulator Pump Applications

  • Hot water boosting
  • Commercial or domestic hot water systems
  • Air-conditioning cooling systems
  • Solar hot water systems
  • Hotels and motels

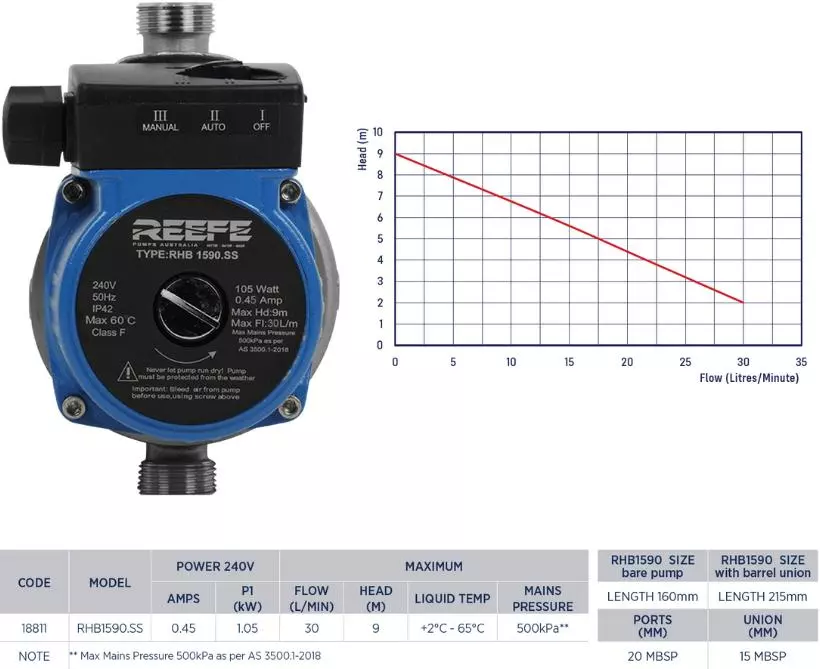

Reefe RHB1590.SS hot water circulator pump specifications - Water Pumps Now

Reefe RHB1590.SS Hot Water Circulator Pump Features

  • In-line pump casing for easy installation
  • Options for 20mm or 13mm BSP connections
  • Automatic or manual operation
  • In-built flow switch
  • Low power consumption
  • Reliable, maintenance free
  • Maximum mains pressure 500kPa as per AS 35001.1-2018
  • Liquid temperature from 2°C to +95°C
  • Ambient temperature up to 40°C
  • 2 year warranty
  • Certified to AS/NZS4020 for use with portable water
  • Quiet operation

Reefe RHB1590.SS Hot Water Circulator Pump Construction

  • Stainless steel pump casing
  • Ceramic motor shaft
  • PES composite impellers
  • Ceramic bearings
  • EPDM Seals
  • Ingress Proection IP44
  • Insulation Class F
