Dual Hot Water Circulating Standard Pump System

Model Number: RHC2060 standard pump set
Head/Draw: Tooltip 6m
Max flow: Tooltip 60 L/min
Inlet/Outlet size: Ports 25mm MBSP/ Union 20mm MBSP
Liquid to be pumped: Water 2°C to 100°C
Horse power: Tooltip 1.3HP, 1 kw
Amp draw: 0.45 amp
Voltage: 240 volt
Liquid to be pumped: Clear water
$ 2866.00
INCL GST
Add to Cart

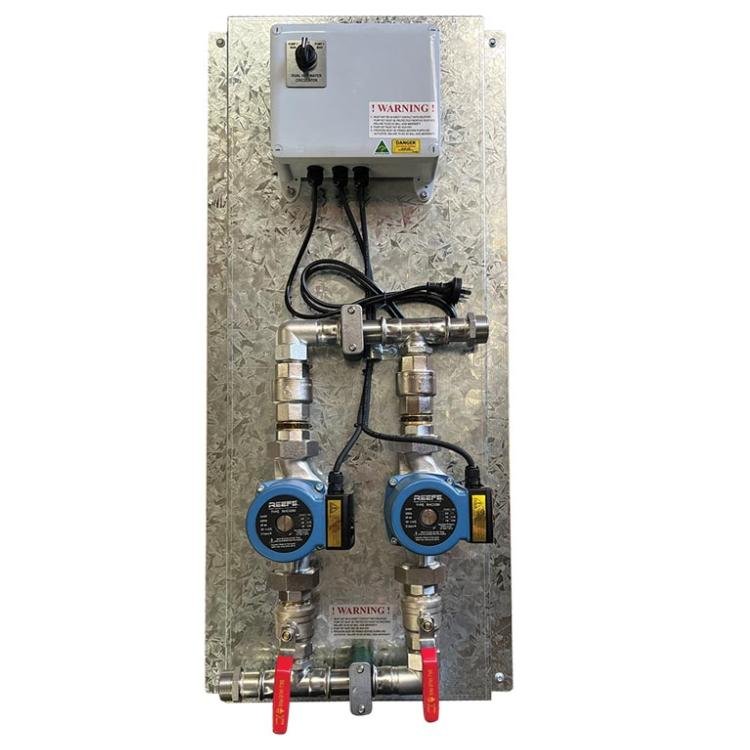

Reefe standard hot and cold water circulating pump sets can be used in a range of applications including domestic or commercial buildings to save water and time, and cooling and heating of machinery and other processes. Circulating pumps, consisting of a control panel and pumps mounted on a vertical steel frame, are designed to circulate water from a storage tank through a ring-main system and back to the storage tank for reheating.

Reefe RHC2060 Dual Hot Water Circulator Pump Applications

  • Domestic and light commercial hot water circulating
  • Laundries
  • Hydroponics
  • Hotels, motels and aged care facilities
  • High rise buildings
  • Hot water and cold water circulating

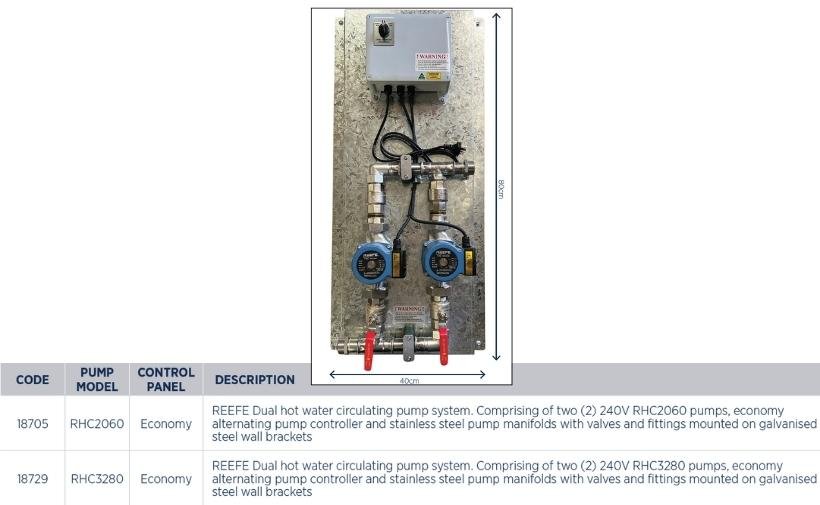

Reefe dual hot water circulator pump set specifications - Water Pumps Now

Reefe RHC2060 Dual Hot Water Circulator Pump Features

  • Circulating pumps constructed from non corrosive material
  • Pre-plumbed and pre-wired ready for installation
  • 24-hour/7-day time clock
  • Easy to use dual pump controller
  • No provision for thermostat input
  • 2 Year warranty

Reefe RHC2060 Dual Hot Water Circulator Pump Construction

  • Heavy duty galvanised wall bracket
  • 25mm stainless steel manifolds (RHC2060)
  • 25mm valves and unions (RHC2060)
  • 32mm stainless steel manifolds (RHC3260)
  • 32mm valves and unions (RHC3260)
  • Controller enclosed in weatherproof poly
  • All installations must be protected from weather exposure (Ingress Protection IP44)
