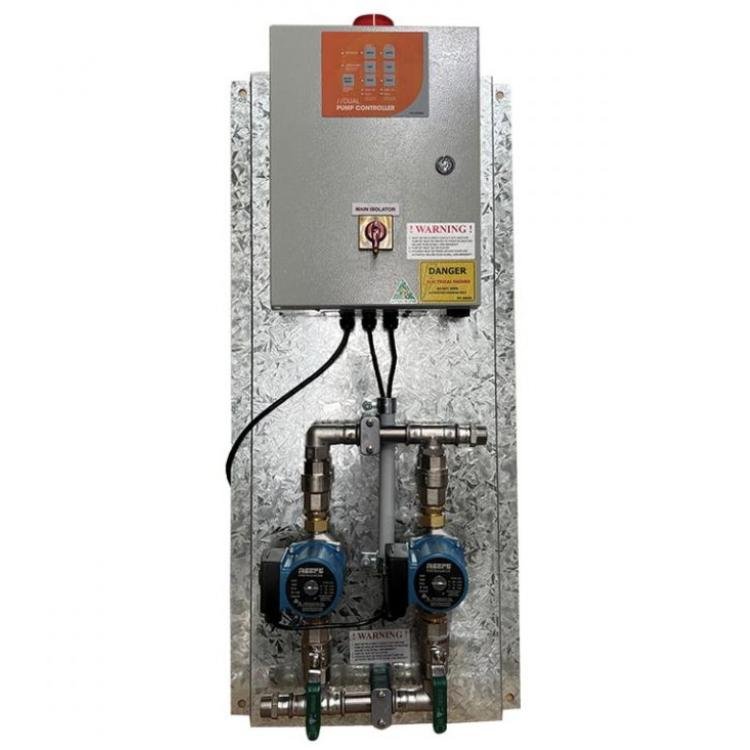

Deluxe Dual Hot Water Circulator Pump System

Model Number: RHC2060 deluxe pump set
Head/Draw: Tooltip 6m
Max flow: Tooltip 60 L/min
Inlet/Outlet size: Ports 25mm MBSP/ Union 20mm MBSP
Liquid to be pumped: Water 2°C - 100°C
Horse power: Tooltip 1.3HP, 1 kw
Amp draw: 0.45 amp
Voltage: 240 volt
Liquid to be pumped: Clear water
$ 3917.00
INCL GST
Add to Cart

The Reefe deluxe hot and cold water circulator pump sets can be used in a range of applications including domestic or commercial buildings in order to save water and time, when cooling and heating machinery and other processes. Circulator pumps, consist of a control panel and pumps mounted on a vertical steel frame, are designed to circulate water from a storage tank through a ring-main system and back to the storage tank for reheating.



Reefe dual hot water circulator pump set deluxe specifications Water pumps Now

Reefe RHC2060 Dual Hot Water Circulator Pump Applications

  • Commercial and domestic hot water circulating
  • Laundries and hospitals
  • Hydroponics
  • Hotels, motels and aged care facilities
  • High rise buildings
  • Hot water and cold water circulating

Reefe RHC2060 Dual Hot Water Circulator Pump Features

  • Pumps constructed from non corrosive material
  • Pre-plumbed and pre-wired ready for installation
  • 24-hour/7-day time clock
  • Thermostat input
  • Easy to use dual pump controller
  • Inter-connectable with BMS
  • 2 year warranty

Reefe RHC2060 Dual Hot Water Circulator Pump Construction

  • Heavy duty galvanised wall bracket
  • 25mm stainless steel manifolds (RHC2060)
  • 25mm valves and unions (RHC2060)
  • 32mm stainless steel manifolds (RHC3260)
  • 32mm valves and unions (RHC3260)
  • All installations must be protected from weather exposure
  • Ingress protection IP65 (control panel), IP44 (pumps)
