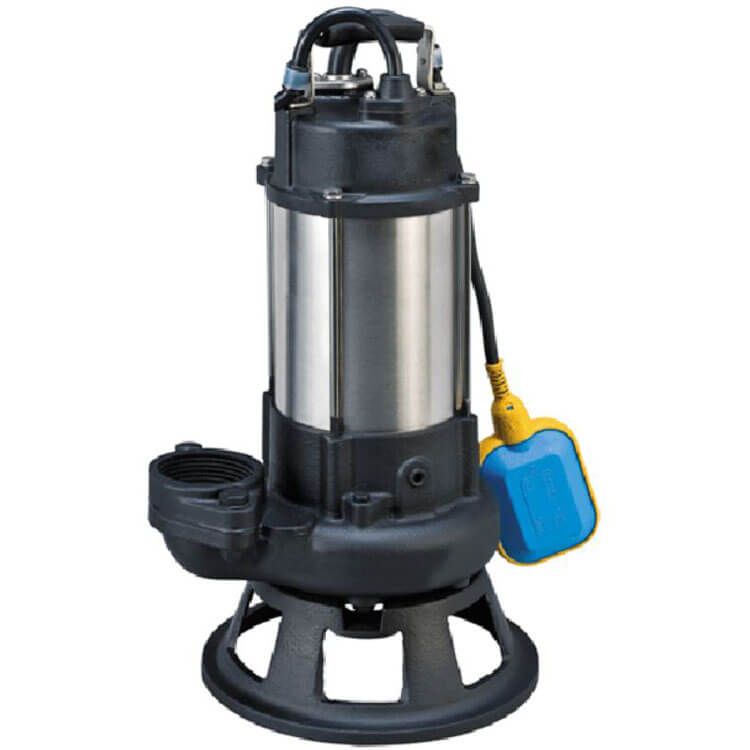

Reefe RIC075A Automatic Cutter Pump

Model Number: RIC075A
Max flow: Tooltip 7.5 L/sec (450 L/min)
Head/Draw: Tooltip 12m
Inlet/Outlet size: 50mm
Horse power: Tooltip 1HP, 0.75kw
Amp draw: 5.5 amp
Cable length: 10m
Solids handling: 35mm
Voltage: 240 volt
Packaging Size (cm): 27.6 x 23.4 x 49.2cm
Packaging Weight (kg): 21kg
Liquid to be pumped: Sewage - Farm - Trade Waste
$ 1605.00
INCL GST
Add to Cart

Industrial standard heavy duty submersible sewage cutter pump with 12m head moving and cutting effluent, sewage and trade waste up to 900 L/min. Our range of cutter pumps are available and often used in packaged Pump Stations with pump well included, where raw effluent or sewage needs to be pumped from an underground tank uphill to the septic system.

The motor is tough performing, precision manufactured with stringent quality control to ensure consistant reliability and endurance.

Reefe RIC series cutter pump series specifications and performance graph

REEFE RIC075A Cutter Pump Applications

  • Trade waste
  • Waste treatment facilities
  • Sewage**
  • Animal waste

REEFE RIC075A Cutter Pump Features

  • Flows up to 15 L/sec
  • Maximum head up to 23m
  • Thermal overload protection
  • Auto coupling kits available
  • Manual and float switch (auto) options
  • 1 Year warranty
  • Electrical Safety Approval to AS/NZS 60335.2.41

REEFE RIC075A Cutter Pump Construction

  • 240V and 3 phase (415V) versions available
  • Triple seal system in the 1.5kw and larger, lip seal and double silicone-carbide/ceramic mechanical seal with oil chamber
  • Carbon/ceramic mechanical seal with lip seal and oil chamber in the 0.75kw versions
  • Removable solid cast iron base. When using these pumps with guide rails, the base must be removed.
  • Large capacity oil chamber with protective lip seal
  • Non-clog impeller with tungsten blade*
  • 10m H07RNF grade cable
  • Ingress Protection IP68
  • Insulation Class F
