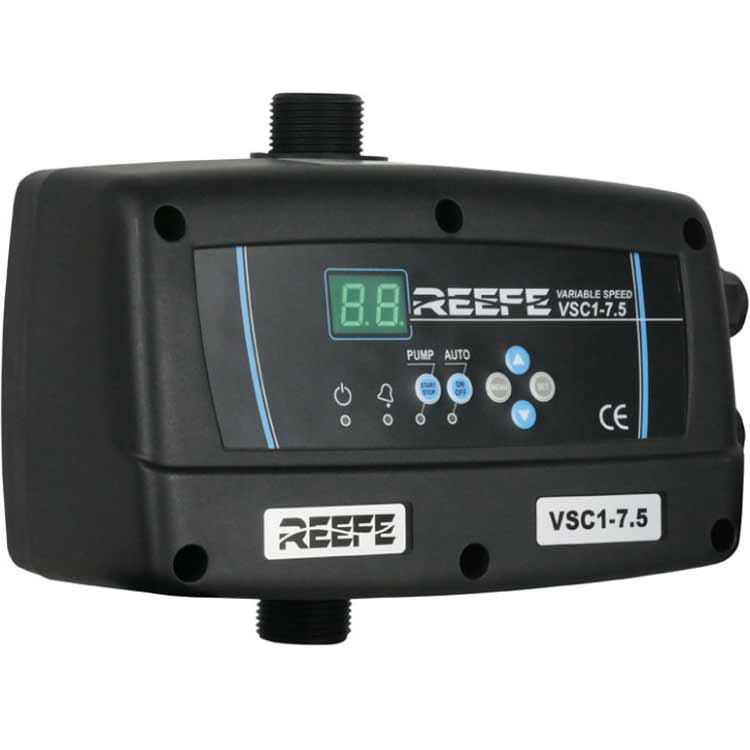

Reefe VSC1-7-5 Variable Speed Drive ( VSD ) Pump Controller

Model Number: VSC1-7.5
Pressure: Tooltip 0.5 - 8 bar (range of set pressure)
Inlet/Outlet size: 25mm connections
Amp draw: 7.5 amp
Max flow: Tooltip 133 L/min
Voltage: 240 volt
$ 1379.00
INCL GST
Add to Cart

The REEFE variable speed drive pump controller features superior pressure sensing technology to maintain constant pressure and motor speed during pump operation, with the added advantage of power savings. The variable speed drive pump controller is easy to operate and mount on the pump. Water flows through hydraulic connections.

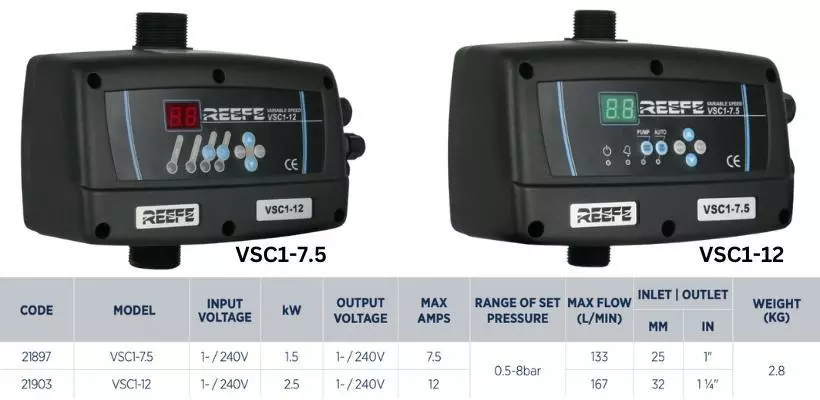

Reefe variable speed controller range specifications - Water Pumps Now Australia

REEFE Variable Speed Drive Pump Controller VSC1-7.5 Applications

  • Intelligent, automatic, constant pressure operation of pressure pumps for a multitude of situations, domestic, commercial and industrial
  • Mains pressure boosting
  • Hotels, Amenities, Restaurants

REEFE Variable Speed Drive Pump Controller VSC1-7.5 Features

  • Power savings through intelligent control
  • Automatic operation eliminating the need for manual resets/operation
  • Integrated protection system to prevent dry-running operation
  • Compact design and easy to install
  • Supplied with quick plug connections and 1.5m power cable
  • Ingress Protection IP55
  • Maximum liquid temperature 40°C
  • Maximum ambient temperature 50°C
  • Certified to AS/NZS4020 for use with potable water
