RM4000-5 Rain to Mains Pressure Pump System with PRJ55

Reefe RM4000-5 rain to mains pressure pump system with PRJ55
Model Number: RM4000-5 w PRJ55 pump w RM1500-2 valve
Max flow: Tooltip 60 L/min
Head/Draw: Tooltip 34m
Inlet/Outlet size: 25mm
Horse power: Tooltip 0.5HP, 0.37kw
Amp draw: 2.5 amps
Voltage: 240 volt
Packaging Size (cm): 33 x 18 x 52.5cm
Liquid to be pumped: Clear water
$ 1207.00
INCL GST
Add to Cart

The RainPro® RM4000-5 rain to mains pump system with RM1500-2 valve is a 25mm system with no pressure loss on the Mains supply, and is designed for speed of installation. The Rain Mains device has no cables, no float, no solenoid, no electronic controls. The simplicity of this pump system is the added benefit of making it very affordable. The Reefe RM4000-5 jet pressure pump stops flow of mains supply while rain water is being pumped to help conserve water. Refer to the table below to choose the pump sizing according to the house size and number of bathrooms. This rain to mains pump system is not recommended for suction lift, use the RM5000-4 submersible version for underground tanks.

Reefe Rain to Mains Pump System Application

  • Bathrooms and laundry
  • Whole house - refer to the data table below for sizing
  • Commercial / industrial
  • Garden irrigation
  • Toilet blocks (up to 12 fixtures)
  • Construction / mine site offices

∗Note: check specifications required

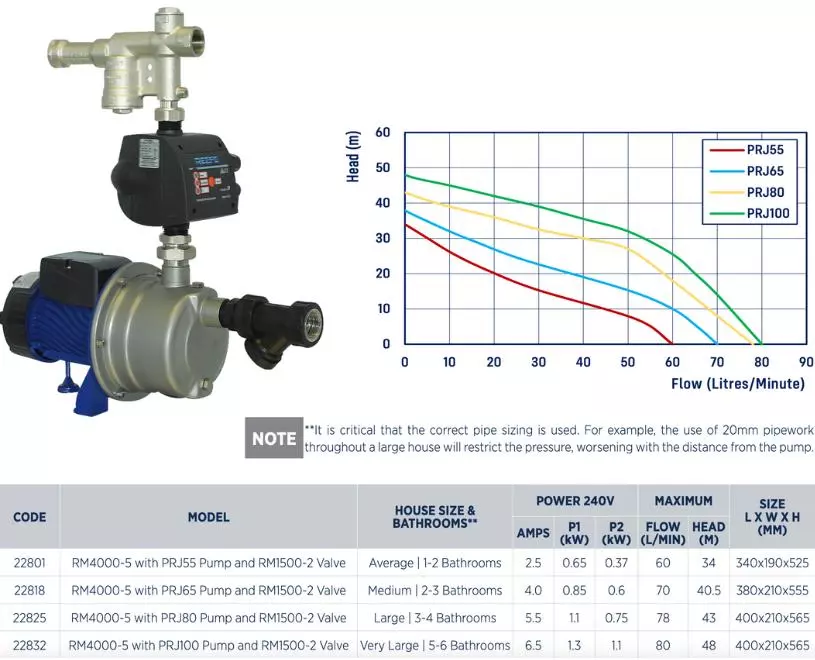

Reefe RM4000-5 rain to mains pressure pump system specifications and performance graph

Reefe Rain to Mains Pump System Features

  • Rains to Mains change over system allows mains water to flow if tank water is unavailable, and restricts mains flow if tank water is sufficient
  • Mains flow up to 86 L/min
  • Valveset is 100% hydraulic - no electronics
  • Watermark certified, includes dual check valve on mains
  • Reliable, efficient power-saving performance
  • Automatic pressure controller giving consistent pressure supply, automatically checks for water every 24 hours after a run dry event
  • Run dry protection and thermal overload protection for the pump
  • Certified to AS/NZS4020 for potable water
  • 2 year infield warranty
  • 3 year manufacturers warranty on pump

Reefe Rain to Mains Pump System Construction

  • Supplied with RM1500-2 changeover valve
  • Stainless steel casing and shaft
  • Carbon/ceramic mechanical seal for reliability
  • Quick plug pressure controller connection
  • Ingress protection IP44
  • Insulation Class F
