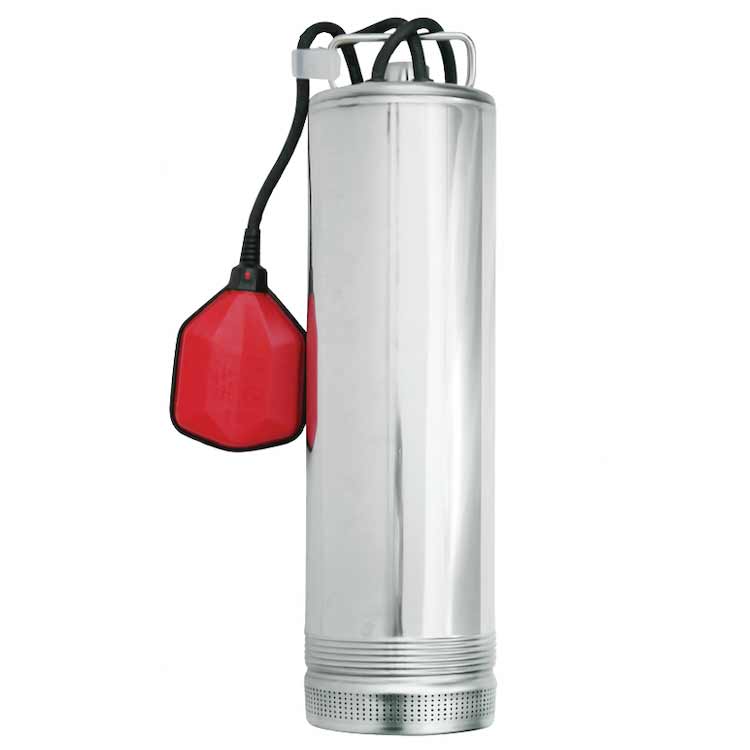

Multistage Submersible Pressure Pump 206 L/min

Model Number: RSME80
Max flow: Tooltip 206 L/min
Head/Draw: Tooltip 77m maximum head
Horse power: Tooltip 2.95HP, 2.2kw
Voltage: 240 volt
Pump rating: Tooltip 100 Lmin. 49.3m Head
Inlet/Outlet size: 40mm
Cable length: 20m
Amp draw: 12.5 amps
Packaging Size (cm): 15.2 x 15.2 dia x 56.1cm
Liquid to be pumped: Clean water
$ 2403.00
Add to Cart
Rating: Not Rated Yet

Made in Europe the Reefe RSME80 is a multistage submersible pressure pump which can be used in deep wells up to 50m in depth. Featuring superior construction this submersible pressure pump is designed to deliver maximum pressure with a highly efficient performance. Lightweight, multistage, submersible, pressure pump for ease of installation with industrial grade induction motor. A high quality Reefe multistage submersible pressure pump which can be used in both domestic and commercial pressure pump applications.

For commercial applications in higher demand building services and amenities blocks the commercial rain to main pump controller is a popular addition to this pump.

Reefe RSME80 Submersible House Pump Applications

  • Deep wells up to 50m in depth
  • Long suction lines from tank to pump
  • Draw from dams, creeks and rivers
  • Irrigation, tank filling or water transfer
  • Clean water transfer
  • Domestic and commercial use

Reefe RSME multistage submersible pressure pump range specifications

Reefe RSME80 Submersible House Pump Features

  • Heavy duty pump - reliable construction for greater longevity
  • Highly versatile, suitable for horizontal and vertical installation
  • Maximum immersion up to 17m
  • Lightweight construction for easy installation and maintenance
  • Adjustable depth float switch
  • 20m H07RN-F cable
  • In built overload protection
  • Electrical safety approval to AS/NZS 60335.2.41
  • 2 year warranty

Reefe RSME80 Submersible House Pump Construction

  • Stainless steel AISI 304 pump body, motor, shaft and handle
  • Reinforced polymer impellers and diffusers
  • Alumina graphite mechanical seal
  • Carbon ceramic mechanical seal (RSME80 only)
  • Stainess steel 304 impellers (RSME80 only)
  • NOTE: The RSME80 pump must be connected to a 15 amp outlet
  • Ingress protection IP68
  • Insulation Class F
