Reefe RDP228 Drainage Pump

Model Number: RDP228
Max flow: Tooltip 15 L/sec (900 L/min)
Head/Draw: Tooltip 23m head
Inlet/Outlet size: 80mm
Solids handling: 30mm
Cable length: 10m
Horse power: Tooltip 3HP, 2.2kw
Amp draw: 4.4 amps
Voltage: 415 volt
Packaging Size (cm): 28 x 21.6 x 49.3cm
Packaging Weight (kg): 49kg
Liquid to be pumped: Waste - Clear - Stormwater - Grey Water
$ 2474.00
INCL GST
Add to Cart

Reefe RDP series of drainage pump are for the drainage of liquids with small solids in suspension. Extremely tough performing industrial standard drainage pumps built to the highest quality standard to guarantee a lasting investment. Ideal for use in stormwater pits and commonly used in pump stations throughout Australia.

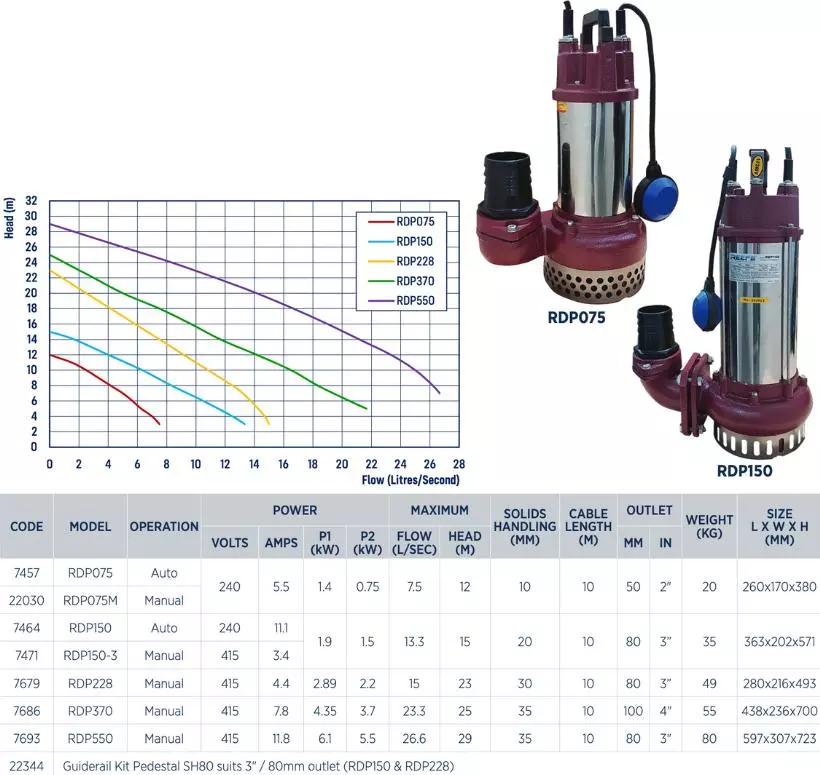

Reefe RDP range industrial drainage pumps specifications and performance graph

REEFE RDP228 Drainage Pump Applications

  • Stormwater
  • Shopping centres and commercial buildings
  • Basement car parks
  • Industrial processes
  • Flood control

REEFE RDP228 Drainage Pump Features

  • Flows up to 28 L/sec
  • Maximum head up to 28.5m
  • Auto coupling kits available for larger models
  • Larger sizes in 3 Phase (415V) only
  • Thermal overload protection
  • Up to 35mm solids handling capacity
  • 1 Year warranty
  • Electrical Safety Approval to AS/NZS 60335.2.41

REEFE RDP228 Drainage Pump Construction

  • Dual mechanical silicon carbide seal in oil bath (RDP075 single seal)
  • Stainless steel grade 304 multi-vane semi open impeller on RDP models
  • MAC 3 Italian made float switch on selected models
  • H07RN-F cable - 10m
  • Ingress Protection IP68
  • Insulation Class F
