Jabsco 24v Par-Max 3 Water Pump

Model Number: J20-205
Voltage: 24 volt
Max flow: Tooltip Open Flow: 3 GPM 11 L/min
Pressure: Tooltip 40 PSI cut-off pressure (2.8 bar)
Inlet/Outlet size: 12mm
Self priming to: 10ft (3m)
No. taps/outlets: 1 - 3
Maximum current draw: 6A
Recommended fuse size: 10A
Motor Design: Brushed, permanent magnet
Diaphragm: Santoprene
Certifications: CE, ISO8846, RCM
Ingress protections: IPX6
Packaging Size (cm): 39 x 15 x 14cm
Packaging Weight (kg): 2.2kg
Liquid to be pumped: Fresh water
$ 249.00
INCL GST
$ 267.00
Sale!
Add to Cart

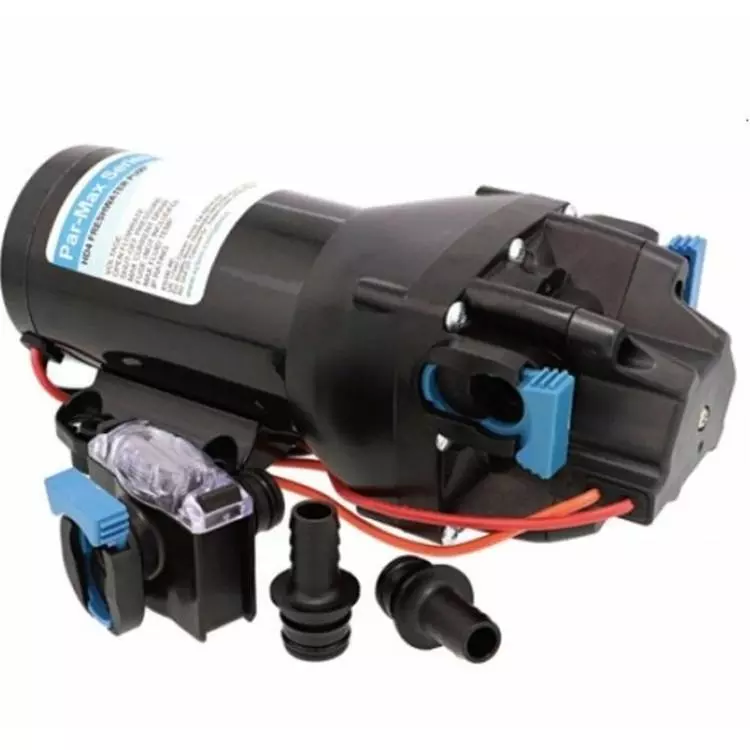

The Jabsco 24v Par-Max HD3 water pump is the updated and improved version replacing the very popular Par-Max 2.9 freshwater pump. Ideal 24v pump to supply water at pressure to one to three taps / outlets in a 24 volt environment such as in a caravan, boat or for a small solar house application. Delivering 11 L/min @ 40PSI for a smooth flow and hassle free pump operation. One of the most popular caravan style freshwater pumps on the market.

The three chamber positive displacement diaphragm, permanent magnet motor with double ball bearing armature is the latest in quality design in 24v water pumps.

This Jabsco pressure pump automatically turns on and off when you turn the tap on and off. Runs up to 3 outlets (sink, shower, toilet) with very smooth water flow even at low demand due to its integrated by-pass valve which controls unwanted cycling and noise. This accounts for the popularity of the Jabsco Par-Max 3. A reliable 24v marine grade pressure pump with 3 year manufacturers warranty. Also available in 12v.

Jabsco 24V Par-Max HD3 Pressure Pump Applications

  • Caravan
  • Marine/Boat
  • Solar cabin
  • RV

Jabsco 24V Par-Max HD3 Pressure Pump Features

  • Jabsco – world leading brand
  • 3 year warranty
  • Long life sealed motor
  • Automatically turns on and off
  • Quiet operation
  • Self priming for ease of installation
  • Built in bypass lowers pulsation and noise, reducing cycling and provides a smoother flow
  • Reliable performance
  • Run dry without damage
  • Integrated, sealed pressure switch for on demand operation
  • Automatic thermal overload cutout
  • Made from durable, corrosion resistant materials
  • Supplied complete with quick connect port fittings
  • Installation instructions included. Must be used with a filter
  • Soft rubber mounts (feet)
  • Also available in 12 Volt

Hose ports included: 2 x 12mm barbed for hose, 1 x screen filter

Notes:

  • Mount pump in driest location
  • Follow pump instructions for correct set-up
  • Motors are not waterproof and should not be subject to external water contact

Jabsco Par-Max Pressure Pump Range:

  • J20-202 - 12v - 40psi - 11 L/min - Parmax 3
  • J20-205 - 24v - 40psi - 11 L/min - Parmax 3
  • J20-208 - 12v - 60psi - 11 L/min - HD3
  • J20-210 - 12v - 40psi - 15 L/min - HD4
  • J20-211 - 24v - 40psi - 15 L/min - HD4
  • J20-214 - 12v - 60psi - 15 L/min - HD4
  • J20-215 - 24v - 60psi - 15 L/min - HD4
  • J20-280 - 12v - 60psi - 19 L/min - HD5
  • J20-284 - 12v - 60psi - 22.7 L/min - HD6
  • J20-285 - 24v - 60psi - 22.7 L/min - HD6

 Typical 12v Jabsco water pump set up for caravan cabin or boat

Typical 12v water pump set up for a cabin or small home
