Water Pump Pressure Controller w Quick Plug - 2-3 HP Pumps

Model Number: RPC32E
Max flow: Tooltip 167 L/min
Pressure: Tooltip 2.5 bar (adjustable 1.5 - 3.5 bar)
Amp draw: Maximum amps: 16
Inlet/Outlet size: 32mm
Horse power: Tooltip Maximum: 2.2kw. Suits 2-3HP pumps
Voltage: 240 volt
$ 345.00
INCL GST
Add to Cart

The Reefe RPC32E automatic water pump pressure controller for 2-3HP pressure pumps is designed for automatic control of pressure pumps to maintain constant pressure supply. Made in Europe, this quick plug controller is of exceptional quality and has been constructed under stringent quality standards to guarantee a long service life. The pump controller features superior internal programming for detection of water availability and auto-restart function after a run dry event.

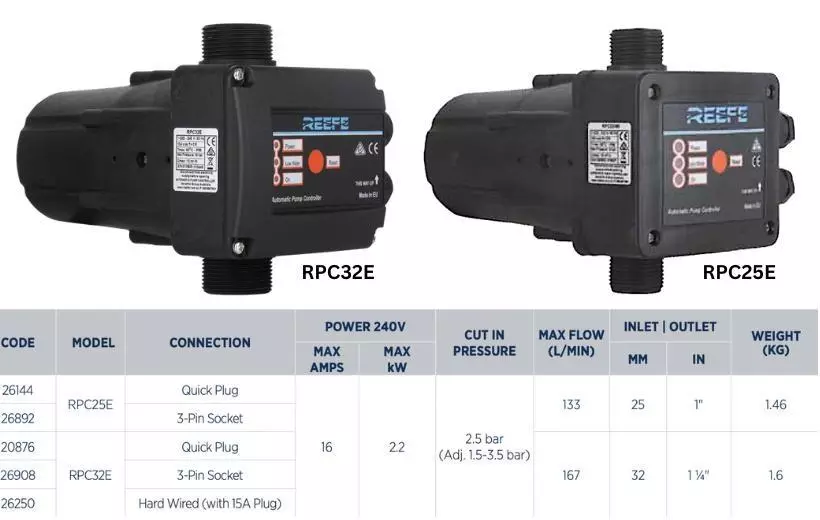

Reefe RPC E series automatic pressure controller specifications Water Pumps Now

REEFE RPC32E Water Pump Pressure Controller Applications

  • Constant pressure supply in domestic applications
  • Automatic operation of pressure pumps
  • Irrigation
  • 2-3HP Pumps
  • Rain to mains systems

REEFE RPC32E Water Pump Pressure Controller Features

  • Automatic operation eliminating the need for manual resets/ operation
  • Integrated protection system to prevent dry-running operation
  • Compact design and easy to install
  • Light indicators, power on-power off, ‘low water’
  • Larger diaphragm allows for better control of water hammer and long pumping distances
  • Loss of prime detection
  • 2 year warranty
  • Certified to AS/NZS4020 for use with potable water
  • Maximum liquid temperature 60°C
  • Ingress Protection IP65

NOTE: Also available in 3 pin or hardwired models.
