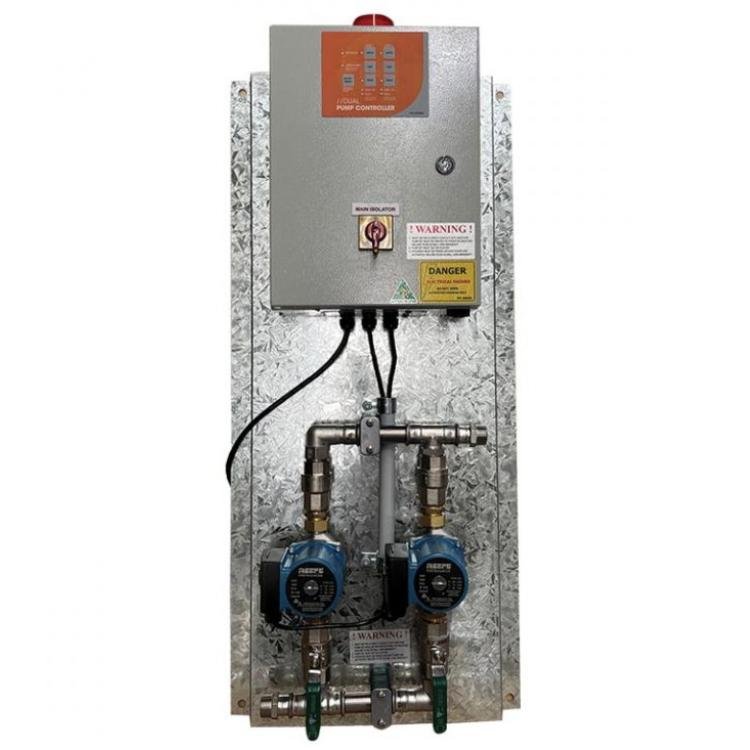

Deluxe Dual Hot Water Circulator Pump System

Model Number: RHC3280 deluxe pump set
Head/Draw: Tooltip 8.2m
Max flow: Tooltip 166 L/min
Inlet/Outlet size: Ports 50mm MBSP/ Union 32mm MBSP
Liquid to be pumped: Water 2°C to 100°C
Horse power: Tooltip 0.32HP, 245W
Amp draw: 1.1 amp
Voltage: 240 volt
Liquid to be pumped: Clear water
$ 4516.00
INCL GST
Add to Cart

The Reefe deluxe hot and cold water circulator pump sets can be used in a range of applications including domestic and commercial buildings to save water and time, when cooling and heating machinery and other processes. Circulator pumps, consist of a control panel and pumps mounted on a vertical steel frame, are designed to circulate water from a storage tank through a ring-main system and back to the storage tank for reheating.

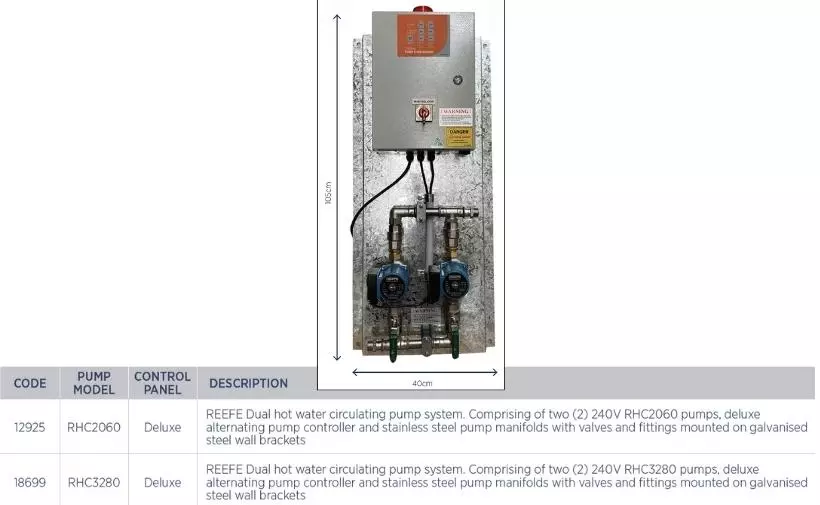

Reefe dual hot water circulator pump set deluxe specifications Water pumps Now

Reefe RHC3280 Dual Hot Water Circulator Pump Applications

  • Commercial and domestic hot water circulating
  • Laundries and hospitals
  • Hydroponics
  • Hotels, motels and aged care facilities
  • High rise buildings
  • Hot water and cold water circulating

Reefe RHC3280 Dual Hot Water Circulator Pump Features

  • Pumps constructed from non corrosive material
  • Pre-plumbed and pre-wired ready for installation
  • 24-hour/7-day time clock
  • Thermostat input
  • Easy to use dual pump controller
  • Inter-connectable with BMS

Reefe RHC3280 Dual Hot Water Circulator Pump Construction

  • Heavy duty galvanised wall bracket
  • 25mm stainless steel manifolds (RHC2060)
  • 25mm valves and unions (RHC2060)
  • 32mm stainless steel manifolds (RHC3260)
  • 32mm valves and unions (RHC3260)
  • All installations must be protected from weather exposure
  • Ingress protection IP65 (control panel), IP44 (pumps)
