Single Pump Controller - 240V Inner Door

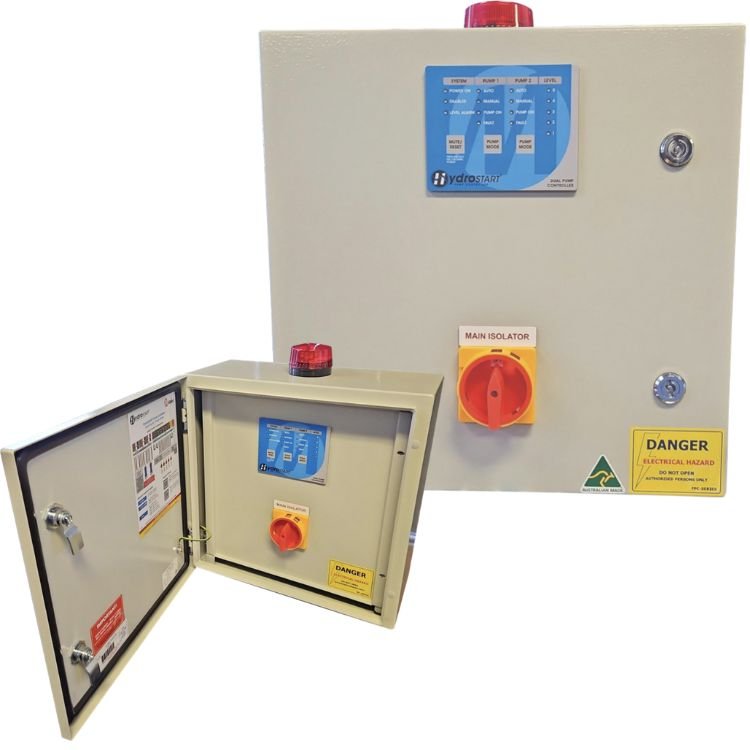

Reefe RPC series single and dual pump controllers
Model Number: RPC82141
Voltage: 240 volt
$ 1527.00
INCL GST
Add to Cart

Reefe standard single and dual pump controllers with a capacitive touch keypad and control module with pump current sensing, providing wide range of electronic overload protection which functions with both single and three phase pumps. Additional control inputs and functionality incorporated to enhance the controller's flexibility and cover an even wider range of pumping applications.

This model: Reefe RPC82141 single pump controller - 240v with Inner Door display

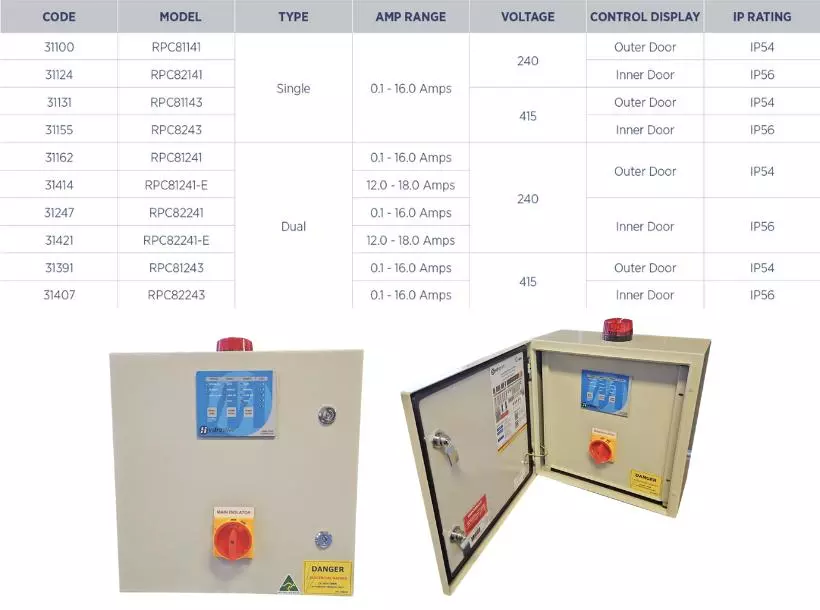

Reefe RPC series single and dual pump controllers specifications

Reefe RPC82141 240V single pump controller applications

  • Sewage pump out
  • Stormwater pump out
  • Water Transfer
  • Pressure boosting
  • Hot water recirculation

Reefe RPC82141 240V single pump controller features

  • Padlockable mains isolator switch - Security for public spaces
  • Low voltage control and input circuitry - added safety
  • Individual pump circuit breaker protection/isolation - one pump failing won't bring down the whole system
  • Electronic short and overload protection of alarms
  • Indicator lights for system, pump and input status, level alarm - easily monitor the system status
  •  Buttons for alarm mute/reset and pump mode selection - simple intuitive control configuration
  • Visual (strobe) and audible (buzzer) alarms - know when your system needs attention
  • Inputs up to 6 floats or switches - advanced system control
  • Pump current sensing providing adjustable overload and other protections - protect your motors

Reefe RPC82141 240V single pump controller construction

  • Powder coated mild steel enclosure with removable gland plate
  • IP54 rated (inner door)
  • IP56 rated (outer door)
