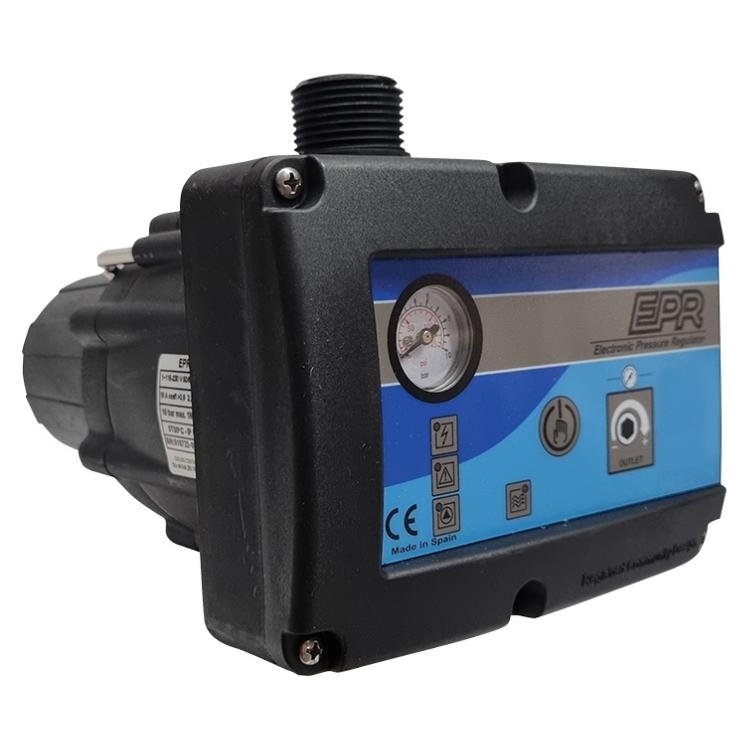

Reefe EPR25E.3PS Pump Controller with Electronic Pressure Regulator

Model Number: EPR25E to EPR32E.3PS
Pressure: Tooltip Cut in range: 0.5-5.0 bar
Horse power: Tooltip Maximum 2.2kW
Amp draw: 16
$ 303.00
INCL GST
Add to Cart
Product Variations

The Reefe EPR pump controller range are a compact device for automatic control and protection of electric pumps up to 2,2 kW (3Hp). Equipped with an innovative outlet pressure reducing/regulating system. Therefore, in addition to the typical characteristics of traditional electronic pump controllers: integrated non-return valve, accumulation diaphragm, pressure gauge, dry-running protection, automatic reset, it allows to adjust and stabilize the outlet pressure, avoiding overloads, water hammer and, ultimately, improving end user comfort.

REEFE Electronic Pressure Regulator Applications

  • Constant Regulated Pressure Supply for Homes
  • Automatic Operation of Pressure Pumps
  • Constant Regulated Pressure for Irrigation Systems
  • Rain to Mains Systems
  • Where cut in pressure is required. Up to 4.0 bar start pressure.

Reefe EPR pump controller with electronic pressure regulator specifications

REEFE Electronic Pressure Regulator Features and Benefits

  • Manual regulation of the constant outlet pressure with integrated adjusting tool
  • Outlet pressure indicator with pointer
  • Auto-setting of the start pressure linked to the outlet pressure
  • Dual scale integrated pressure gauge (bar/psi)
  • Integrated protection system which stops the pump in case of dry-running operation
  • Anti-seize function, after 3 days of inactivity, the device starts the pump for 10 seconds in order to avoid rotor-locking
  • ART function (Automatic Reset Test). If the device has been stopped due to the action of the safety system against dry operation, the ART tries to restart the pump, with a programmed sequence for when water supply has been restored
  • Control Panel:
    • Yellow led light (POWER)
    • Green led light (PUMP ON)
    • Red led light (ALARM)
    • Green led light (FLOW)
    • Tactile push button for manual start
  • Integrated reserve against leaks in the installation and no return valve
  • Ingress Protection IP65
  • 2 year warranty
