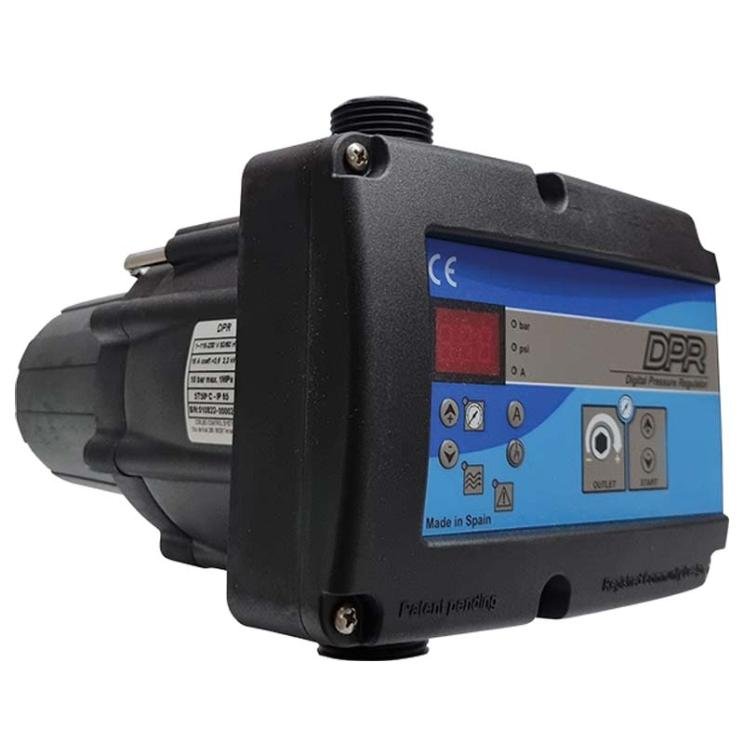

Reefe DPR32E.3PS 15 amp Pump Controller with Digital Pressure Regulator

Model Number: DPR25E to DPR32E.3PS
Pressure: Tooltip Cut in range: 0.5-5.0 bar
Horse power: Tooltip Maximum 2.2kW
Amp draw: 16
$ 373.00
INCL GST
Add to Cart
Product Variations

The Reefe DPR range of water pump pressure controllers are a compact device for automatic control and protection of electric pumps up to 2,2 kW (3 HP). Equipped with an innovative outlet pressure reducing/regulating system. These pump controllers also include a digital display with instantaneous indication of current consumption and outlet pressure. In addition to the typical characteristics of traditional electronic pump controllers: integrated non-return valve, accumulation diaphragm, pressure gauge, dry-running protection, automatic reset, it allows the user to adjust and stabilize the outlet pressure, avoiding overloads, water hammer and, ultimately, improving end user comfort.

REEFE Digital Pressure Regulator Applications

  • Constant Regulated Pressure Supply for Homes
  • Automatic Operation of Pressure Pumps
  • Constant Regulated Pressure for Irrigation Systems
  • Rain to Mains Systems
  • Where high cut-in pressure is required. Up to 5.0 bar start pressure.

Reefe DPR25E water pump pressure controller with digital pressure regulator specifications

REEFE Digital Pressure Regulator Features and Benefits

  • Manual regulation of the constant outlet pressure with integrated adjusting tool
  • Outlet pressure indicator with pointer
  • Digital adjustment of the starting pressure
  • Digital pressure gauge (bar or psi)
  • Inner pressure transmitter and flow sensor
  • Inner current sensor with instantaneous digital reading
  • ART function (Automatic Reset Test). If the device has been stopped due to the action of the safety system against dry operation, the ART tries to restart the pump, with a programmed sequence for when water supply has been restored
  • APR function (Anti-blocking Periodic Routine)
  • Flooding protection system
  • Stand-by mode
  • Anti-seize function, after 3 days of inactivity, the device starts the pump for 10 seconds in order to avoid rotor-locking
  • Register of operation data: controller operating hours, pump operating hours, number of operating cycles, number of connections to the power supply
  • Alarm counters
  • Ingress Protection IP65
  • 2 year warranty
