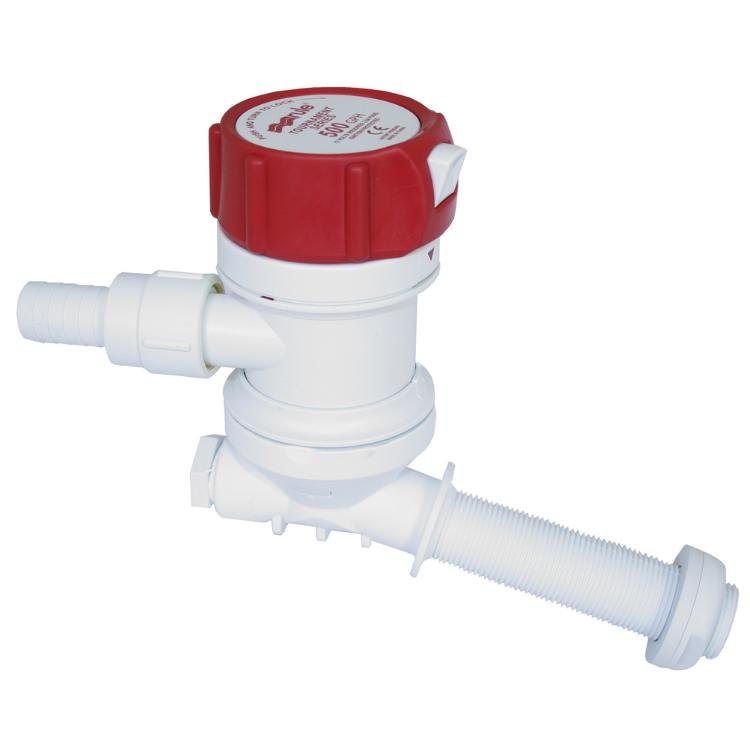

Livewell Pump 800 GPH - angled thru-hull inlet

Model Number: RWB27-RWB5186
Max flow: Tooltip 500GPH to 1100 GPH
Amp draw: 2.5 to 6 amp
Voltage: 12 volt
Amp draw: 2.5 to 6 amp
Voltage: 12 volt
$ 198.00
INCL GST
Add to Cart
Product Variations
Rating: Not Rated Yet
The Rule tournament 400 series dual port thru-hull Livewell cartridge pumps are built on Rule's unsurpassed quality and leadership in design and technology. Installation and plumbing is made easier with rotable base and outlet.
  • 3 styles available - angled inlet, straight inlet, ¾″ thread valve mount
  • 3 gallon per hour sizes available: 500 GHP, 800 GPH, 1100 GPH
  • All styles have an additional ½″ threaded plugged inlet port to allow inlet connection of a deckwash pump if desired
  • 360° rotatable inlet base and outlet for easier installation
  • Supplied with threaded rotatable glass filed nylon hose barbs - 1 each straight and 90° (20mm in 500 and 800, 28mm in 1100)
  • Easy-grip rubber overmould spring loaded removable motor cartridge
  • Long lasting and powerful Rule motors (12 volt only)
  • Rugged glass filled nylon pick-up tube
  • 12 volt only. 3 year limited warranty

RWB53

  • Angled thru-hull inlet
  • 800 GPH
  • 20mm hose barb size
  • 5 amp fuse size
