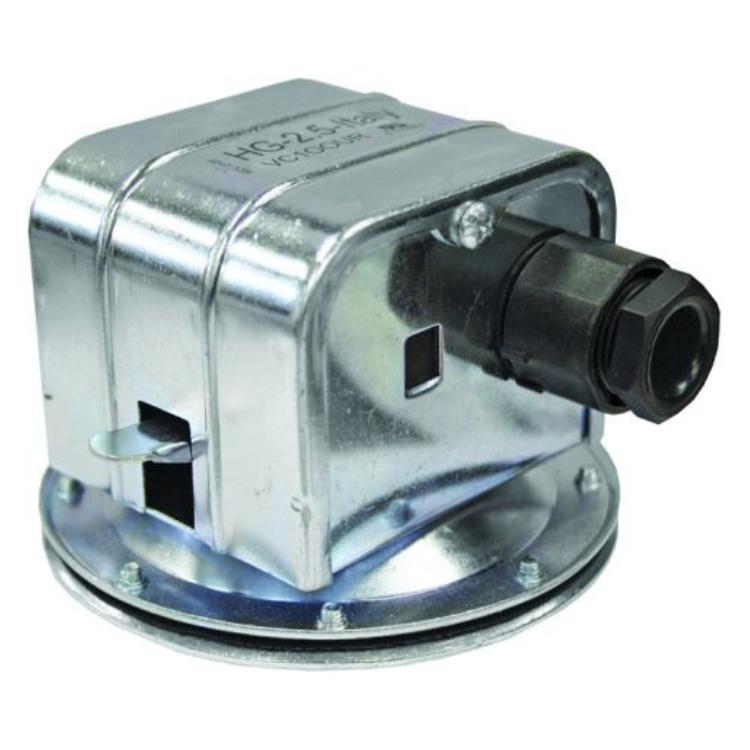

Jabsco J41-011 electric clutch pump vacuum switch
Print

Marine Electric Clutch Pump Vacuum Switch

Brand: Jabsco
SKU: J41-011
FREE SHIPPING*
$ 415.00

Description

The Jabsco 4732-000 (J41-011) vacuum switch prevents dry running damage to electric clutch pumps and is suitable for 12 and 24 volt electric clutch pumps up to 15 amp. The vacuum switch automatically shuts off the power to the pump when the bilges are clear of water, saving the impeller from dry running damage. It does so by sensing loss of inlet vacuum when the bilge is dry and air enters the pump.

Boat marine impeller bilge pump vacuum switch features

  • Connections: 1/4" BSP internal thread for direct fitting to Jabsco electric clutch pumps. Alternatively, fit into a suitable T-piece in pump inlet line.
  • Dimensions: 115mm diameter, 90mm high
  • Vacuum switch weight: 0.66kg
  • Suitable for 12 volt or 24 volt DC pumps up to 15 amp
  • The pump can be started manually with lever on switch or remotely
  • Simply mounts on suction side of the electric clutch pump between bilges and pump
  • Some clutch pumps have an integral mounting point for the vacuum switch
  • Install pump with a minimum 1.2m suction lift
  • Requires manual start. Cut-out is automatic
  • For remote start, fit a 15 amp push button switch (normally off) next to the master switch
