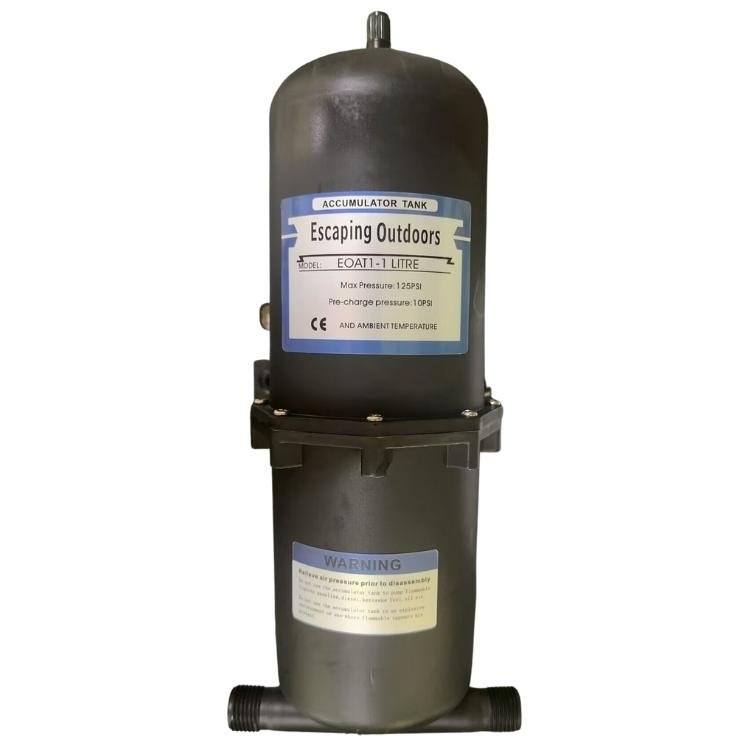

1 Litre Accumulator Tank

Model Number: EOAT1-1
Inlet/Outlet size: 12mm
Liquid to be pumped: Clean Water
Pressure: Tooltip Pre - charged pressure - 10PSI (0.7BAR)
$ 105.00
$ 115.00
Add to Cart
Rating: Not Rated Yet

An accumulator tank is an underestimated requirement for a smooth running water pump system in most caravans and boats. Our Escaping Outdoors 1 litre compact pre-pressurised accumulator / pressure tank will fit into a tight space. This 1 litre accumulator tank is for potable drinking water and will give you a smoother water flow, quieter operation, will save your power and will extend the life of your pump. An accumulator tank is a must for every pressurized water pump set up where the pump has a pressure switch!

Escaping Outdoors EOAC1-1L Accumulator tank Features

  • Fully sealed
  • Compact size
  • Easy to install and operate
  • Will align with your pumps PSI rating
  • Made from tough durable materials
  • Reliable Escaping Outdoors brand
  • Non corrosive nylon outer casing
  • Internal rubber membrane eliminates maintenance
  • Universal mounting
  • Easily fitted to new or existing systems
  • Installation Instructions included

Escaping Outdoors EOAC1-1L Accumulator tank Specifications

  • Model: EOAT1-1
  • 1 litre accumulator tank
  • Supplied with straight snap in port kits for 12mm I.D. hose
  • Pre-charged pressure: 10PSI (0.7BAR) ( Contact us by leaving a note at the website checkout letting us know what pump it is to be used with and we will pre - charge the pressure in the tank to suit your pump.
  • Air filled valve - standard automotive style tyre valve

The Escaping Outdoors quality accumulator / pressure tank will hold a store of pressurised water to reduce unnecessary pump cycling, pulsation and water hammer when installed between the pump and the tap. An accumulator / pressure tank can also be used to moderate the flow to match your Hot Water Service. An accumulator / pressure tank can be fitted to new or existing pump system installations.

Available in both a 0.75ml and 1 litre size these accumulator tanks are ideal for tight spaces to match most 12v, 24v, 240v diaphragm pumps. Protect both your pump and coffee cart, coffee machine with an accumulator tank - A cheap item with so many benefits!


a. Accumulator tank / pressure tank contains a factory charged air cushion. This is usually 10% the rest fills with water.

b. When the pump starts, water enters the accumulator reservoir. At maximum pressure the system is filled. The pump then shuts off.

c. When water is demanded at the tap / outlet, pressure in the air chamber forces water into the system. The pump stays off until the water in the pressure tank has emptied or till minimum pressure is reached, then the pump starts and runs until pressure is reached. Therefore the pump doesn't necessarily turn on each time you demand water at the outlet.

The pressure tank will absorb excess pressure in your system before it reaches your pump and causes damage. Therefore protecting the life of the pump and the pump pressure switch.

Water Pumps Now are happy to pre-charge your accumulator tank to suit your 12V, 24V or 240V diaphragm pressure pump when purchasing. Just let us know what pump it is to be used in conjunction with.

EG: Escaping Outdoors FL35 @ 35PSI needs the accumulator tank to be charged to around 28 PSI.

EG: Escaping Outdoors FL43 @ 40 PSI needs the accumulator tank to be charged to around 32 PSI.

If you already have a pressure tank on your system, check it is charged to the right PSI to be effective for your setup or call us on 1300 411 366 if you are unsure.
