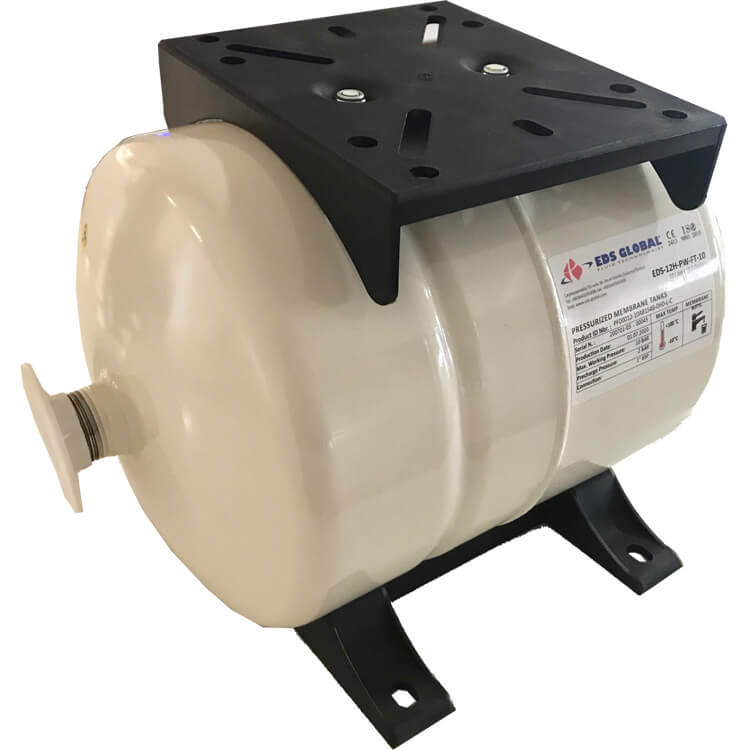

12 Litre Pressure Tank with Stand

Model Number: PT12
Pressure setting: Factory precharge: 2.0 bar
Maximum pressure: 10.0 bar
Inlet/Outlet size: 1 inch BSP
Packaging Size (cm): 41 x 28 x 28cm
Packaging Weight (kg): 3.8kg
$ 155.00
$ 179.00
Add to Cart
Rating: Not Rated Yet

A pressure tank is essential for whole house applications, toilet blocks and larger pressure systems. Even basic domestic applications will benefit from the inclusion of a pressure tank. The Reefe pressure tank range are manufactured with a food-grade polypropylene liner and a heavy-duty butyl rubber diaphragm. The brass air valve is sealed by a threaded O-ring valve cap to prevent air leaks. The threaded water connection fitting is stainless steel to avoid corrosion, and provides a unique water/air seal preventing leaks. There are no wetted steel parts on the pressure tank to avoid corrosion. All the internal parts of the pressure tank including the air valve are smooth to prevent damage to the diaphragm. The steel tank exterior is protected with a triple coat paint finish.

REEFE Pressure tank 12 Litre - 10 Bar Applications

  • Domestic and commercial
  • Irrigation systems
  • Toilet blocks
  • Hydraulic hammer arresting
  • Multi-unit dwellings
  • Pressure systems

Reefe 10 bar pressure tank range specifications - Water Pumps Now

REEFE Pressure tank 12 Litre - 10 Bar Features

  • Reduces cycling of the pump to extend pump life
  • May also reduce electricity consumption as the pump does not start on every use of a tap
  • Adjustable pressure via leak-proof standard air valve
  • Certified to AS/NZS4020 for use with potable water
  • Watermark Approved

REEFE Pressure tank 12 Litre - 10 Bar Construction

  • Food-grade polypropylene liner and heavy-duty butyl rubber diaphragm
  • Stainless steel threaded inlet
  • No wetted steel parts for prevention of corrosion
  • Protected with a triple coat paint finish

Suggested Pressure Settings:

  • Pumps with pressure controller: 70% of maximum pump head pressure
  • Pumps with pressure switch: 10% below cut-in pressure
  • Pumps with VSD controller: 55% of maximum operating pressure

Available As:

  • Pre-tested assembled system complete with any REEFE pressure pump, pressure switch and gauge or Variable Speed Drive Controller. Enquire for more details.
