Jabsco 24v Par-Max HD6 Freshwater Pressure Pump

Model Number: J20-285
Voltage: 24 volt
Max flow: Tooltip Open Flow: 6 GPM 22.7 L/min
Pressure: Tooltip 60 PSI cut-off pressure (4.1 bar)
Inlet/Outlet size: 19mm (3/4 inch)
Self priming to: 8ft (2.4m)
No. taps/outlets: up to 6
Maximum current draw: 8A
Recommended fuse size: 15A
Motor Design: Brushed, permanent magnet
Diaphragm: Santoprene
Certifications: CE, ISO8846, RCM
Ingress protections: IPX6
Packaging Size (cm): 39 x 15 x 14cm
Packaging Weight (kg): 3.15kg
Liquid to be pumped: Fresh water
$ 613.00
Add to Cart
Rating: Not Rated Yet

The Jabsco 24v Par-Max HD6, J20-285 freshwater pressure pump is a robust, high performing 12v pump supplying water at pressure to up to six taps / outlets in a 24 volt environment such as in a caravan, boat or for a small solar house application delivering 22.7 L/min at open flow and @ 60PSI at pressure for a smooth flow and hassle free pump operation.

The heavy duty (HD models) include a heavy duty wider diameter motor with a powder-coated shell, cast aluminium end bells and lowering housing to improve pressure capability and offer longer life and exceptional performance.

This Jabsco pressure pump automatically turns on and off when you turn the tap on and off. Runs up to 6 outlets (sink, shower, toilet, washing machine, tap). The rule of thumb for sizing your pump is 1 GPM (gallon per minute) per outlet is required.

Providing a very smooth water flow even at low demand due to its integrated by-pass valve which controls unwanted cycling and noise.  This accounts for the popularity and reliability of the Jabsco Par-Max freshwater pump range. A reliable 24v marine grade pressure pump backed by 3 year warranty.

Jabsco 24V Par-Max HD6 Pressure Pump Applications

  • Caravan
  • Marine/Boat
  • Solar cabin
  • RV

Jabsco 24V Par-Max HD6 Pressure Pump Features

  • Jabsco – world leading brand
  • 3 year warranty
  • Long life sealed motor
  • Automatically turns on and off
  • Quiet operation
  • Self priming for ease of installation
  • Built in bypass lowers pulsation and noise, reducing cycling and provides a smoother flow
  • Reliable performance
  • Can run dry without damage
  • Integrated, sealed pressure switch for on demand operation
  • Co-moulded diaphragm technology for long life and durability
  • Heavy duty motor and cast aluminium lower housing for long pump life even at high pressures
  • Self priming
  • Automatic thermal overload cutout
  • Made from durable, corrosion resistant materials
  • Installation instructions included
  • Vibration dampening mounting feet

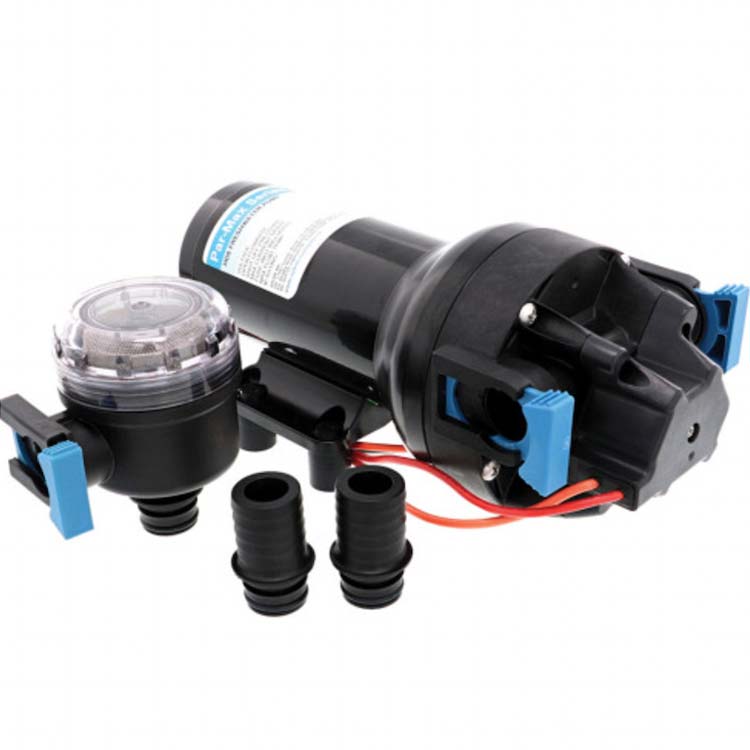

  • 1 x Jabsco Par-Max HD6 freshwater pump
  • 2 x 3/4″ (19mm) straight hose barbs
  • 1 x 90° 40 mesh quick connect strainer


  • Mount pump in driest location
  • Follow pump instructions for correct set-up
  • Motors are not waterproof and should not be subject to external water contact

Jabsco Par-Max Pressure Pump Range:

  • J20-202 - 12v - 40psi - 11 L/min - Parmax 3
  • J20-205 - 24v - 40psi - 11 L/min - Parmax 3
  • J20-208 - 12v - 60psi - 11 L/min - HD3
  • J20-210 - 12v - 40psi - 15 L/min - HD4
  • J20-211 - 24v - 60psi - 15 L/min - HD4
  • J20-280 - 12v - 60psi - 19 L/min - HD5
  • J20-284 - 12v - 60psi - 22.7 L/min - HD6
  • J20-285 - 24v - 60psi - 22.7 L/min - HD6

Typical 12v Jabsco water pump set up for caravan cabin or boat

Typical 12v water pump set up for a cabin or small home
