Jabsco Hotshot HD5 Deckwash Saltwater Pump Kit 12v 70PSI

Model Number: J20-248
Max flow: Tooltip 18.9 L/min
Pressure: Tooltip 70 PSI
Inlet/Outlet size: 12mm
Self priming to: 2.4 metres
Voltage: 12 volt
Packaging Size (cm): 25 x 11 x 17cm
Packaging Weight (kg): 3.2
Liquid to be pumped: Clean or Salt Water
$ 548.00
INCL GST
Add to Cart

The Jabsco Hotshot ParMax HD5 12v deck wash /washdown pump kit includes the new HD ( heavy duty ) motor and cast aluminium housing which allows for long pump life, even when used at high pressures.

Exceptional performance from these diaphragm pressure pumps delivering up to 18.9 L/min at 70 PSI.

Extremely reliable high flow and high pressure deckwash pump ideal for removing mud from anchoring hardware and blasting your deck and fishing platform clean for many years backed by a 3 year manufacturers warranty.

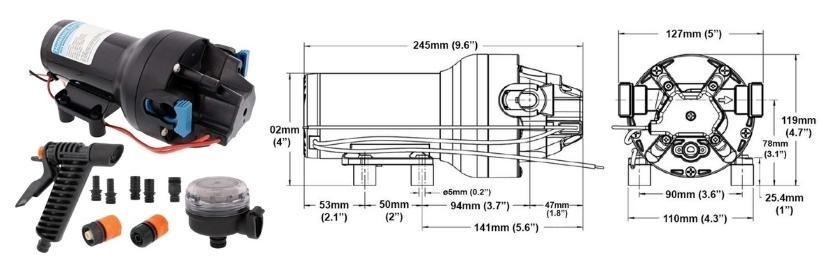

jabsco hotshot parmax hd5 J20 248 12v deck wash pump kit Water Pumps Now

Jabsco Hotshot HD5 12V Deckwash Pump Kit Inclusions

  • 1 x HotShot HD5 Washdown Pump
  • 2 x 1/2" ( 13mm ) straight hosebarbs
  • 2 x 3/4" ( 19mm ) straight hosebarbs
  • 1 x 3/4" GHT fittings
  • 1 x 90° 40 mesh quick connect strainer
  • 1 x Deluxe trigger nozzle and quick connect hose adapters

Jabsco Hotshot HD5 12V Deckwash Pump Kit Specifications

  • Model number: J20-248
  • Voltage: 12v
  • Open flow: 5GPM ( 18.9 L/min )
  • Shut off pressure: 70 PSI ( 4.8 Bar )
  • Maximum current draw: 16A
  • Recommended fuse size: 25A
  • Motor design: Brushed, permanent magnet TENV
  • Pumphead upper housing material: Fiber reinforced polypropylene
  • Diaphragm: Co-moulded TPV
  • Check valves: EPDM
  • Maximum inlet pressure: 30PSI ( 2.1 Bar )
  • Fluid temperature range: 32°F – 140°F (0°C – 60°C)
  • Dry self priming capability: 8ft min ( 2.4m min )
  • Certifications: CE, ISO8846, RCM
  • Ingress protection: IP68
  • Warranty: 3 years

Jabsco Hotshot HD5 12V Deckwash Pump Kit Features

  • Co-moulded diaphragm technology for long life and durability
  • HD model featuring heavy duty, motor and cast aluminium lower housing which allow for long-life, even at high pressures
  • Efficient and quiet operation
  • Integrated, sealed pressure switch for on-demand operation
  • Self-priming allows for installation versatility
  • Can run dry without damage
  • Self‐Priming
  • Quick connect ports for ease of installation, servicing, and maintenance
  • Vibration dampening mounting feet
  • A plastic housing protects the motors from corrosion.
  • Provides exceptional performance in an economical footprint

Jabsco Hotshot 12V Deckwash Washdown Pump Kit Range

  • J20-238 - 12v - 60psi - 15.1 L/min
  • J20-239 - 24v - 60psi - 15.1 L/min
  • J20-262 - 12v - 60psi - 15 L/min with hose
  • J20-248 - 12v - 70psi - 18.9 L/min
  • J20-252 - 12v - 70psi - 22.7 L/min
  • J20-253 - 24v - 70psi - 22.7 L/min
  • J20-254 - 12v - 70psi - 22.7 L/min with hose
