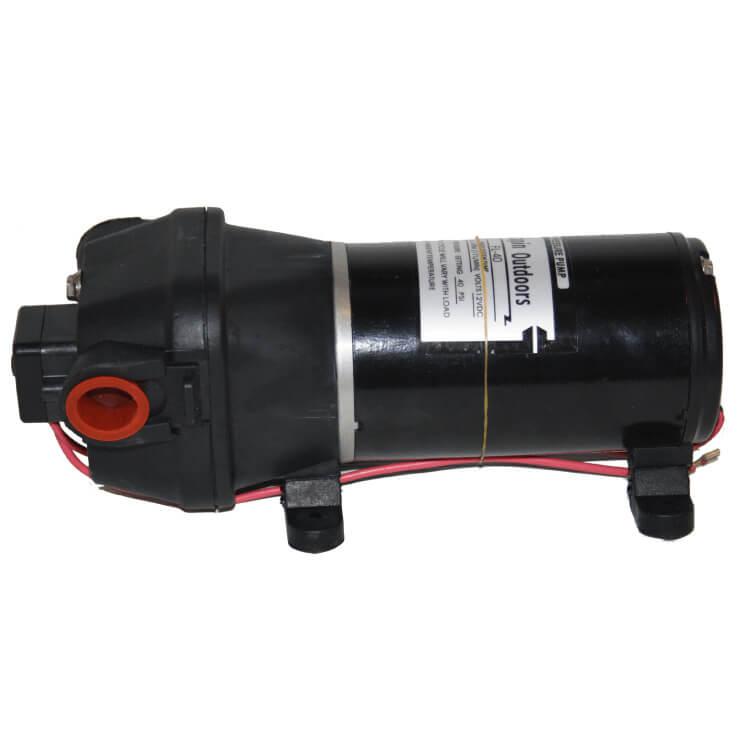

FL40 Caravan - RV - Bus Pump

Model Number: FL40
Max flow: Tooltip 17 L/min
Pressure: Tooltip 40PSI
Inlet/Outlet size: 12mm
Voltage: 12 volt
Amp draw: 9.2 amp
No. taps/outlets: 3 - 4
Head/Draw: Tooltip 4m, 1m
Packaging Size (cm): 38 x 12 x 10cm
Packaging Weight (kg): 2.8kg
Liquid to be pumped: Clean - Salty Water
$ 114.00
Out of stock
Notify Me
Rating: Not Rated Yet

The Escaping Outdoors FL40 12v caravan water pump is ideal for supplying 40 PSI pressurised water in a 12 volt environment delivering up to 17 L/min so is able to run a toilet or shower and several taps in your caravan.

This style of 12v caravan water pump are a diaphragm pressure pump automatically turning on and off when you turn the tap on and off. Designed for intermittent use.

It is recommended that 12v diaphragm pressure pumps be used with an accumulator tank in the system for quieter operation, to reduce hammering and pump cycling and to lengthen the life of both your pump and your battery when used in a pressurized set-up.

If you are pumping water to a Hot Water Service check your HWS pressure rating. The FL35 pump is usually a better choice for a 12 volt hot water service in a caravan due to its lower PSI and is a great choice for a caravan with 3 or less outlets suiting most caravans on the market.

Escaping Outdoors FL40 12V Pressure Pump Applications

For larger caravans, motor homes, cabins, RV's. You can even change the seal to a chemical seal and double this pump up as a chemical boom spray pump for the farm.

Escaping Outdoors FL40 12V Pressure Pump Features

  • Automatically turns on and off
  • Self Priming
  • Easy to install and operate
  • Able to pump fresh water and salt water
  • Low power consumption
  • Reliable performance
  • Run dry protection
  • No maintenance
  • Made from durable, lightweight non-corrosive materials

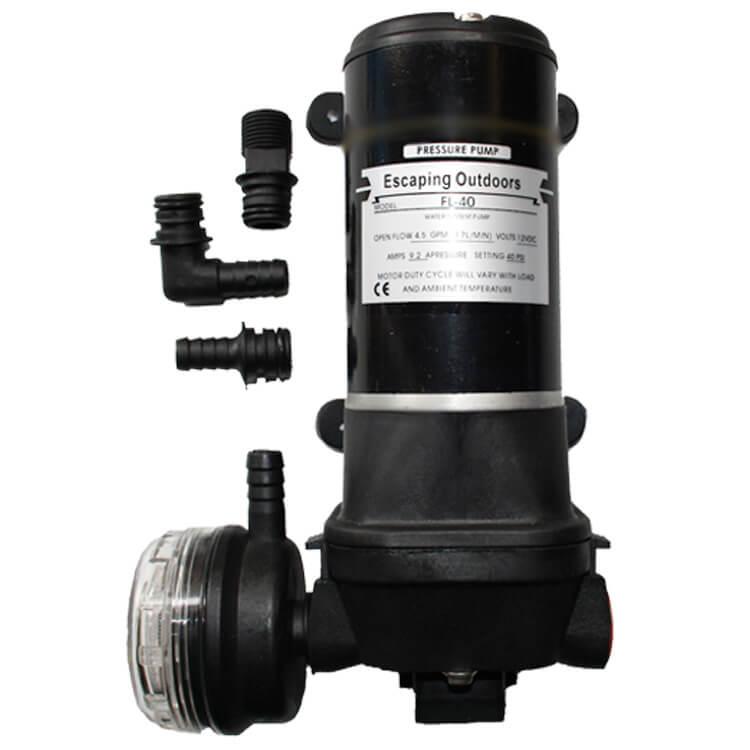

  • Supplied complete with fittings and filter
  • Installation instructions included
  • 12 month warranty

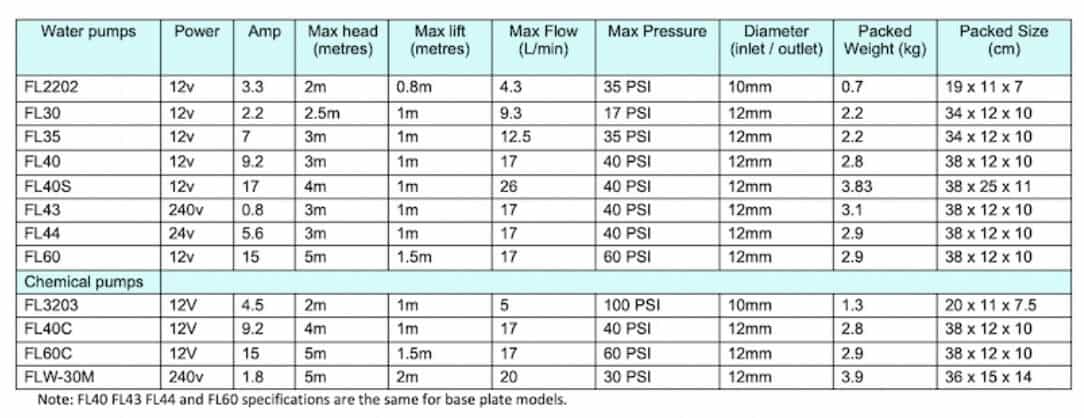

Escaping Outdoors 12v 24v and 240v FL water pump range specifications chart

Typical 12v 24v 240v Escaping Outdoors water pump set up
