Pressure Controller Adjustable - 2-3HP Pump

Model Number: RPC25E - quick plug
Max flow: Tooltip 133 L/min
Pressure: Tooltip 2.5 bar (adjustable 1.5 - 3.5 bar)
Inlet/Outlet size: 25mm
Horse power: Tooltip Maximum: 2.2kw. Suits 2-3HP pumps
Amp draw: 16 amp
Voltage: 240 volt
$ 315.00
INCL GST
Add to Cart
Rating: Not Rated Yet

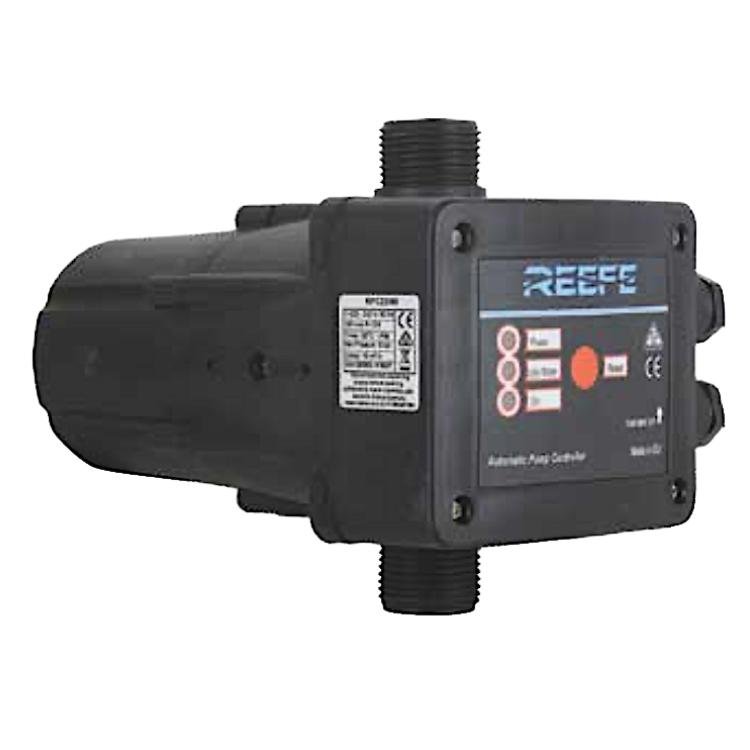

The Reefe RPC25E automatic pressure controller controller is designed for automatic control of pressure pumps from 2 - 3 HP, to maintain constant pressure supply. Made in Europe, this automatic pressure controller is of exceptional quality and has been constructed under stringent quality standards to guarantee a long service life. The controller features superior internal programming for detection of water availability and auto-restart function after a run dry event.



Reefe RPC E series automatic pressure controller specifications Water Pumps Now

REEFE RPC25E Adjustable Pressure Controller Applications

  • Constant pressure supply in domestic applications
  • 2-3 HP Pumps
  • Automatic operation of pressure pumps
  • Irrigation
  • Rain to mains systems

REEFE RPC25E Adjustable Pressure Controller Features

  • Automatic operation eliminating the need for manual resets/ operation
  • Integrated protection system to prevent dry-running operation
  • Compact design and easy to install
  • Light indicators, power on-power off, ‘low water’
  • Larger diaphragm allows for better control of water hammer and long pumping distances
  • Loss of prime detection
  • 2 Year warranty
  • Certified to AS/NZS4020 for use with potable water
  • Maximum liquid temperature 60°C
  • Ingress Protection IP65

NOTE: Available in 3 pin or quick plug model.
