Automatic Pressure Controller - Pumps to 1.5HP

Model Number: RPC5000E
Max flow: Tooltip 133 L/min
Pressure: Tooltip 2.2 bar (adjustable 1.5 - 2.5 bar)
Inlet/Outlet size: 25mm
Horse power: Tooltip 1.5 kw. Suits pumps to 2HP
Amp draw: 10 amp
Voltage: 240 volt
$ 210.00
INCL GST
Add to Cart
Rating: Not Rated Yet

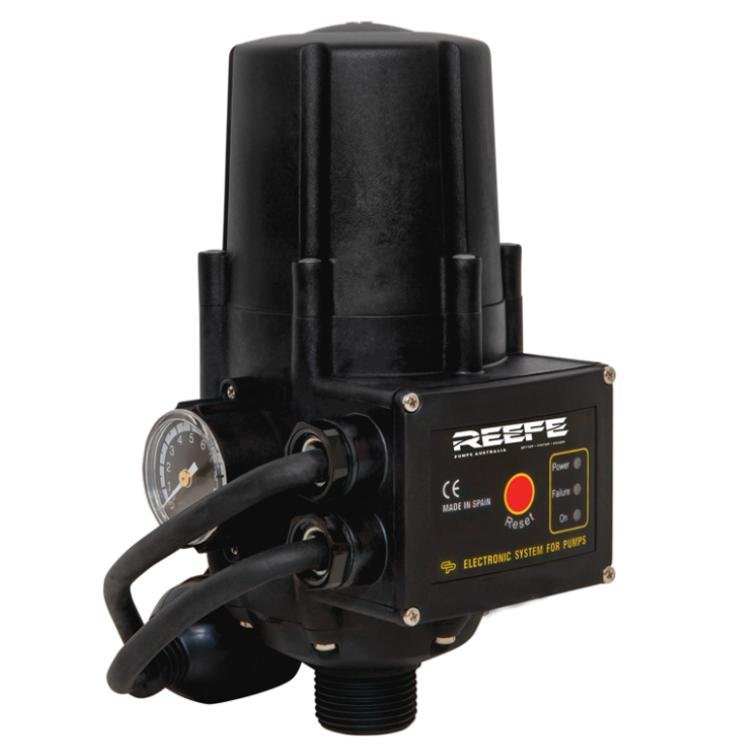

Reefe RPC5000E water pump pressure controller designed for automatic control of pressure pumps up to 1.5HP, to maintain constant pressure supply. Made in Europe, this automatic pump pressure controller is of exceptional quality and has been constructed under stringent quality standards to gaurantee a long service life. The pump pressure controller features superior internal programming for auto-restart function and detection of water availability to prevent run dry events.

Reefe RPC automatic pump pressure controller specifications - Water Pumps Now

REEFE RPC5000E Pressure Pump Controller Applications

  • Constant pressure supply in domestic applications
  • Automatic operation of pressure pumps
  • Irrigation
  • Pumps up to 1.5HP

REEFE RPC5000E Pressure Pump Controller Features

  • Automatic operation eliminating the need for manual resets/operation
  • Integrated protection system to prevent dry-running operation
  • Compact design and easy to install
  • Light indicators, power on-power off, ‘low water’
  • Available with quick plug or 3-Pin socket
  • Loss of prime detection
  • Maximum liquid temperature 50°C
  • RPC5000E is upright style, with adjustable cut-in pressure from 150 to 300kPa, pressure gauge, 3 pin socket
  • Ingress Protection IP65
  • 2 year warranty
  • Certified to AS/NZS4020 for use with portable water
