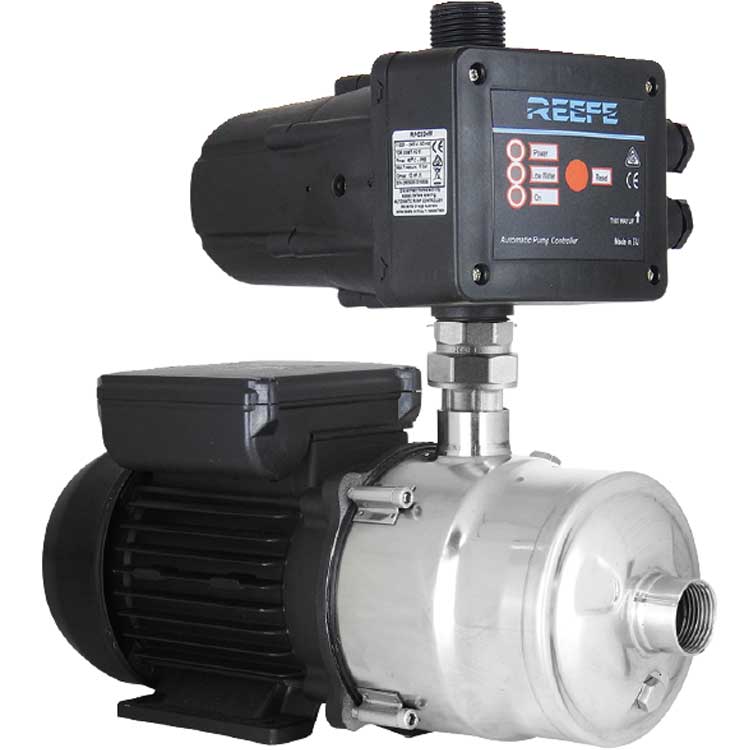

RHMS67-120 Multistage Pressure Pump w Controller

Model Number: RHMS67-120
Max flow: Tooltip 120 L/min
Head/Draw: Tooltip 67m
Pump rating: Tooltip 53m, 48 L/min
Inlet/Outlet size: 25mm
No. taps/outlets: 6 -10
Horse power: Tooltip 1.6HP, 1.2kw
Amp draw: 7.2 amps
Voltage: 240 volt
Packaging Size (cm): 39 x 15.5 x 33.9cm
Packaging Weight (kg): 12.2kg
Liquid to be pumped: Clean Water
$ 1546.00
INCL GST
Add to Cart
Rating: Not Rated Yet

Made in Europe, the Reefe RHMS multistage pressure pump range are designed for reliable performance at high demands in domestic house, farm and commercial applications. A heavy duty multistage pressure pump of lightweight construction, making these pressure pumps, an installer friendly multistage pump. Quiet running and efficient multistage pressure pump for trouble free operation.

The high quality RHMS series of multistage house, farm and commercial pressure pumps come with a wide range of size options together with the option of purchasing the pump only, pump with a controller or pump with pressure tank, switch and gauge.

Application

  • Amenities blocks, hotels, restaurants
  • Whole house supply
  • Apartment blocks
  • Irrigation supply
  • Stock watering systems

Reefe RHMS series multistage pressure pump specifications

 Features

  • Assembled with European automatic pressure controller with run dry protection
  • Quiet operation for minimal disturbance in application
  • Lower power consumption for greater efficiency
  • Maximum 35°C
  • 3 year manufacturers warranty

Construction

  • Heavy Duty 304 stainless steel housing
  • In-built thermal overload protection on motor
  • Pressure controller with quick plug connection
  • RPC25E adjustable pressure controller on 1″ outlet models
  • RPC32E adjustable pressure controller on 1¼″ outlet models
  • Brass barrell union
  • Noryl/fibreglass diffusers
  • Ingress protection - IP44
  • Insulation Class F

9 multistage pressure pumps in the RHMS series with controller
