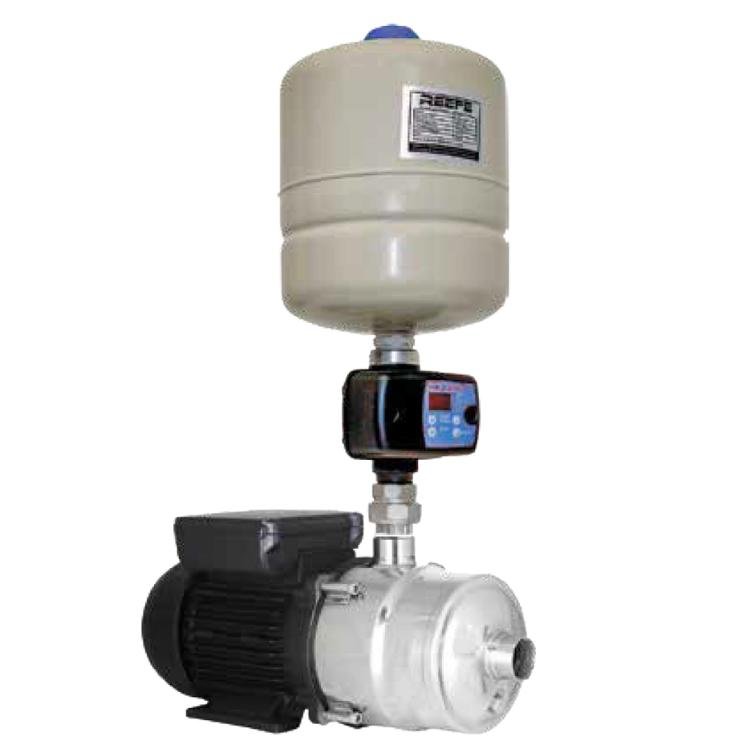

Reefe RHMS52-110.PTS Multistage Water Pump

Model Number: RHMS52-110.PTS
Max flow: Tooltip 110 L/min
Head/Draw: Tooltip 52m head
Pump rating: Tooltip 40m, 48 L/min
Inlet/Outlet size: 25mm
Cable length: 1.5m
No. taps/outlets: 5 - 8
Amp draw: 5.4 amps
Horse power: Tooltip 1.08HP, 0.8kw
Voltage: 240 volt
Packaging Size (cm): 37.2 x 28 x 60.9cm
Packaging Weight (kg): 12.95kg
Liquid to be pumped: Clean Water
$ 1629.00
INCL GST
Add to Cart

The Reefe RHMS52-110.PTS multistage pressure pump comes with a pressure tank and digital pressure switch, and is designed for reliable performance at high demands in domestic, farm and commercial pressure pump applications. A heavy duty lightweight, multistage water pump with installer friendly guaranteeing ease of installation. A quiet running and efficient pump for trouble free pressure pump operation.

The RHMS series of multistage pressure pumps come with a wide range of size options together with the option of purchasing the pump only, pump with a controller or pump with pressure tank, switch and gauge.

Reefe RHMS52.110.PTS Multistage Water Pump Applications

  • Amenities blocks, hotels, restaurants
  • Whole house supply
  • Apartment blocks
  • Irrigation supply
  • Stock watering systems

Reefe RHMS multistage pressure pump w pressure tank and digital pressure switch specifications and graph

Reefe RHMS52-110.PTS Multistage Water Pump Features

  • Assembled with EPS European digital pressure switch with run dry protection
  • Quiet operation for minimal disturbance in application
  • Lower power consumption for greater efficiency
  • Maximum water temperature 35°C
  • Fitted with digital pressure switch for easy installation and adjustment
  • 3 year manufacturers warranty

Reefe RHMS52-110.PTS Multistage Water Pump Construction

  • Heavy Duty 304 stainless steel housing
  • In-built thermal overload protection on motor
  • Brass barrell union
  • Noryl/fibreglass diffusers
  • Stainless steel impeller
  • Supplied with 18 litre pressure tank, EPS1 pressure switch and outlet
  • 5 way brass tee with combo check valve
  • Oil filled pressure gauge
  • Ingress prostection - IP44
  • Insulation Class F

10 multistage pressure pumps in the RHMS series with pressure tank, switch and gauge
