Undersink pump system with RVS200VF vortex sump pump

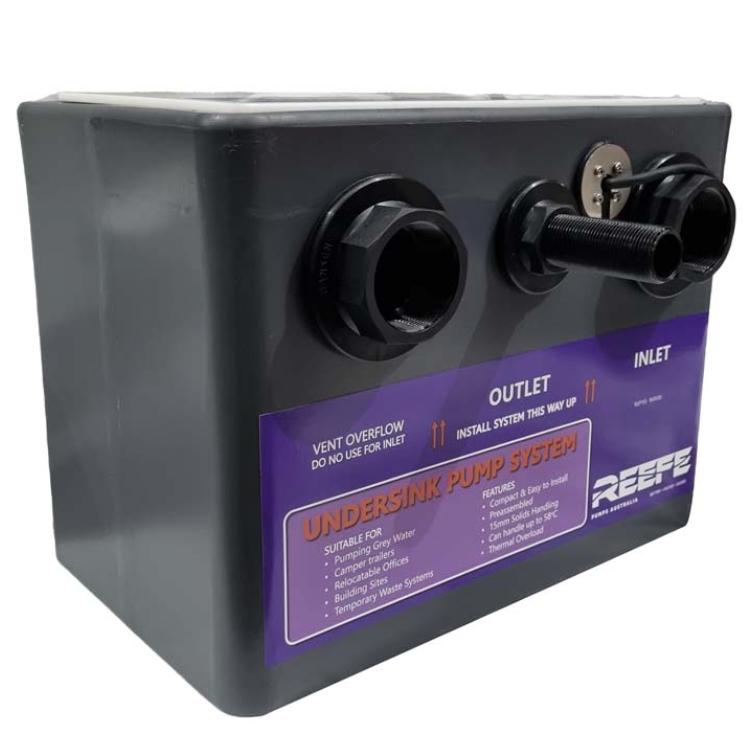

Reefe QUP200 undersink pump system
Model Number: QUP200
Max flow: Tooltip 200 L/min
Head/Draw: Tooltip 7m
Inlet/Outlet size: 2 inch inlet and overflow. 1 inch outlet.
Cable length: 10m
Solids handling: 25mm
Amp draw: 2 amp
Voltage: 240 volt
Packaging Size (cm): 46 x 26 x 38cm
Liquid to be pumped: Grey & waste water
$ 1054.00
INCL GST
Add to Cart

The Reefe QUP200 undersink pump system is ideal for confined spaces, such as under benches, under sinks and in cupboards. An undersink pump system is perfect for transferring waste water to separators, or for lifting water from basements to street level waste connections and comes complete with a high quality Reefe RVS200VF vortex sump pump.

Undersink pump systems can also be used on mobile camper trailers and temporary job site buildings for connection into a common wastewater removal system.

Reefe QUP undersink pump system specifications and performance graph



REEFE QUP200 Undersink pump system applications

  • Pumping grey water
  • Undersink pump well units
  • Camper trailers and other mobile waste systems
  • Building sites and other temporary waste systems

REEFE QUP200 Undersink pump system construction

  • 45 litre polyethylene tank
  • 2" FBSP inlets and overflow
  • 1" MBSP outlet
  • RVS200VF vortex sump pump with vertical float

REEFE QUP200 Undersink pump system features

  • Compact and easy to install
  • Thermal overload switch
  • Soft solids up to 25mm
  • Maximum liquid temperature 58°C
  • Pre-assembled system - ready to install
  • Timer version pumps for 10 seconds every 24 hours to prevent water stagnating (QUP155-T and QUP200-T only)
