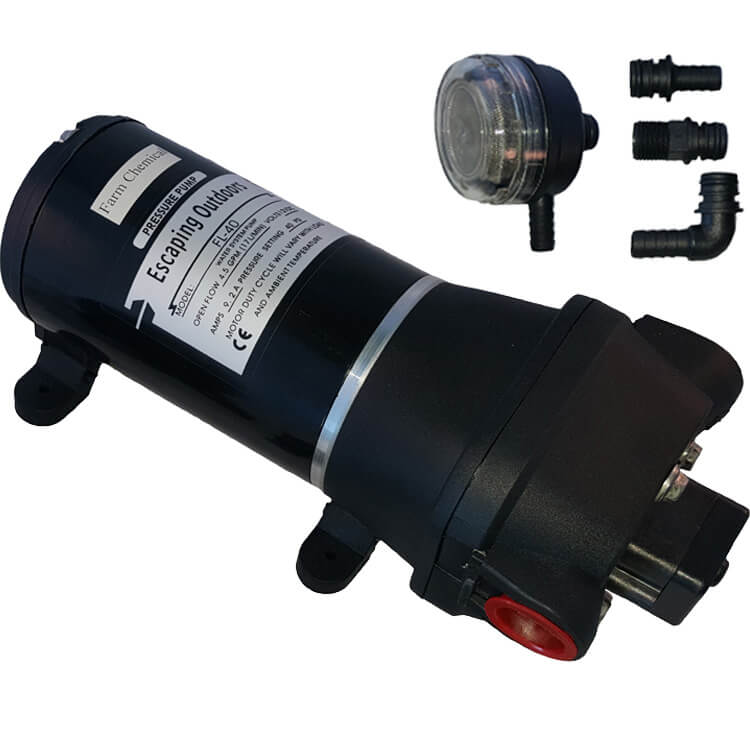

FL40C 12V Chemical Pump - Boom Spray Pump

Model Number: FL40C
Max flow: Tooltip 18 L/min
Pressure: Tooltip 40PSI
Inlet/Outlet size: 12mm
Amp draw: 15 amp
Voltage: 12 volt
Head/Draw: Tooltip 5m, 1m
Packaging Size (cm): 38 x 12 x 10cm
Packaging Weight (kg): 2.9kg
Liquid to be pumped: Clean - Salty Water - Agricultural Chemicals
$ 135.00
INCL GST
Add to Cart

Replacing the FL40C is the versatile Escaping Outdoors FL60CBP-2 which has an adjustable pressure switch for use as a 40PSI 12v chemical pump or a 60PSI 12v chemical pump. Ideal for use on a large boom spray with multiple nozzles using chemical sprays such as Grazon, Cutlass and Roundup, white oil or fertilizer spray. The 12v pump comes with a metal base plate with rubber grommets and will deliver up to 18 litres per minute.

NOTE: Check the combined rating of your nozzles to ensure the right pump choice.

If your flow rate of 18 L/min is higher than the combined rating of your spray nozzles you may have too much pressure in your set-up which can harm the pump or cause the pressure switch to fail. It is highly recommended to install a pressure regulator kit or a T-piece immediately after the pump with a gate valve/tap returning back into the tank to balance and alleviate the excess pressure and flow caused by the pump.

NOTE: The pump comes pre-set at 60PSI but can be adjusted down to 40PSI by taking the pressure switch dust cap off and expose the adjustment screw. Turn the screw anti-clockwise to reduce pressure.

For single wand spraying the FL3203 is recommended

Escaping Outdoors 12v Chemical Pump Application

  • Farm chemical boom spraying
  • Freshwater pressure pump
  • Freshwater solar pump when used with a pressure tank in the line.

Escaping Outdoors 12v 24v and 240v FL water pump range specifications chart

Escaping Outdoors 12v Chemical Pump Features

  • Automatically controlled by a pressure switch
  • Self Priming
  • Easy to install and operate
  • Able to pump agricultural sprays
  • Viton seals
  • Run dry protection
  • Made from durable, lightweight non-corrosive materials
  • Supplied complete with fittings and filter
  • Installation instructions included
  • 1 year manufacturers warranty
