Escaping Outdoors 12v FL60CBP-2 Farm Chemical Pump 60PSI

Model Number: FL60CBP-2
Max flow: Tooltip 18 L/min
Inlet/Outlet size: 12mm
Amp draw: 15 amp
Voltage: 12 volt
Head/Draw: Tooltip 5m, 1.5m
Packaging Size (cm): 38 x 12 x 10cm
Packaging Weight (kg): 2.9kg
Liquid to be pumped: Clean - Salty Water - Farm Chemicals
$ 148.00
INCL GST
Add to Cart

Escaping Outdoors12v chemical pump for use on a large boom spray with multiple nozzles using chemical sprays such as Grazon, Cutlass and Roundup, white oil or fertilizer spray. The 12v FL60CBP-2  chemical pump comes with a metal base plate with rubber grommets and an adjustable pressure switch. Delivering up to 18 litres per minute at 60PSI and can be adjusted down to 40PSI if less pressure is required.

NOTE: Check the combined rating of your nozzles to ensure the right pump choice.

If your flow rate of 18 L/min is higher than the combined rating of your spray nozzles you may have too much pressure in your set-up which can harm the pump or cause the pressure switch to fail. It is highly recommended to install a pressure regulator kit or a T-piece immediately after the pump with a gate valve/tap returning back into the tank to balance and alleviate the excess pressure and flow caused by the pump.

For single wand spraying the FL3203 is recommended. The FL60CBP is too big.

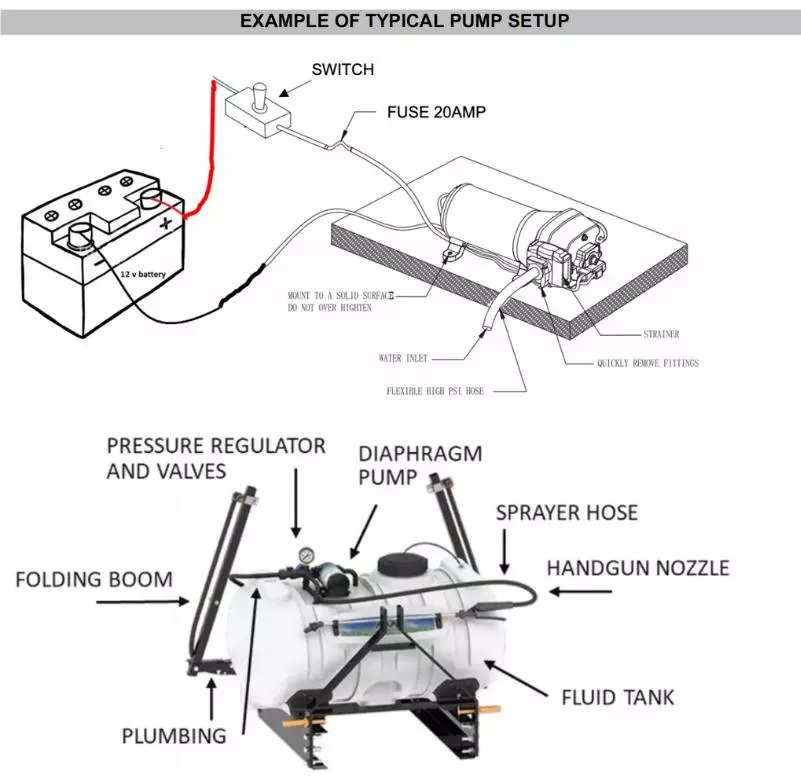

Escaping Outdoors FL60CBP 2 12v chemical pump setup



Escaping Outdoors 12v Chemical Pump Application

  • Farm chemical boom spraying
  • Freshwater pressure pump
  • Freshwater solar pump when used with a pressure tank in the line

Escaping Outdoors 12v Chemical Pump Features

  • Automatically controlled by a pressure switch
  • Self Priming
  • Easy to install and operate
  • Able to pump agricultural sprays
  • Viton seals
  • Run dry protection
  • Made from durable, lightweight non-corrosive materials
  • Supplied complete with fittings and filter
  • Installation instructions included
  • 1 year manufacturers warranty
