Dual Hot Water Controller w Time Clock - Economy

Model Number: 27011
Amp draw: Maximum 6A
$ 1197.00
INCL GST
Add to Cart
Rating: Not Rated Yet

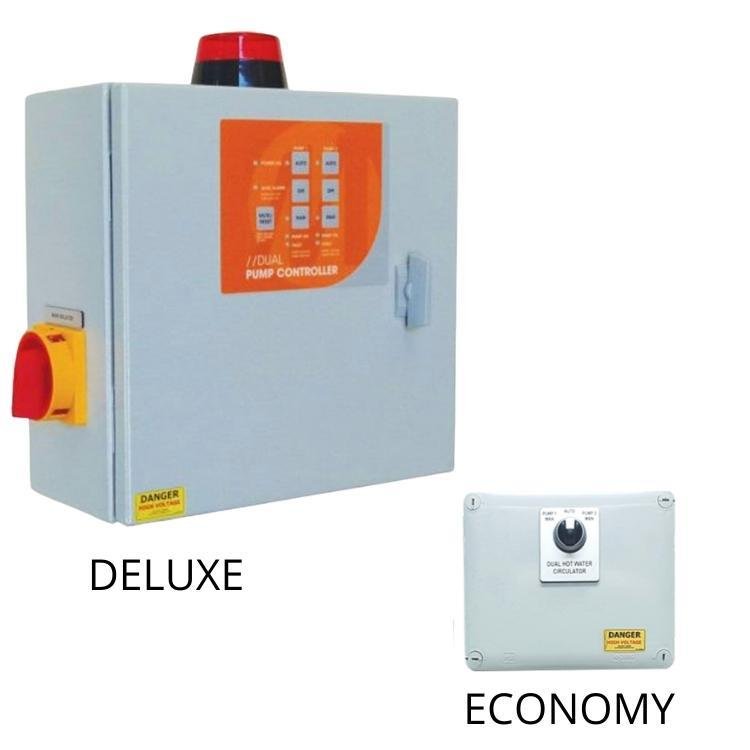

The Reefe dual hot water pump controller with time clock is available in a range of 3 configurations for every application. The deluxe control panels have all of the standard functions of the Reefe dual pump controllers with the addition of the time clock. The deluxe controller model has dedicated provision for thermostat input for circulator pumps with thermostatic control, while the Compakt controller model can be fitted with a thermostat by wiring it in series with the time clock.

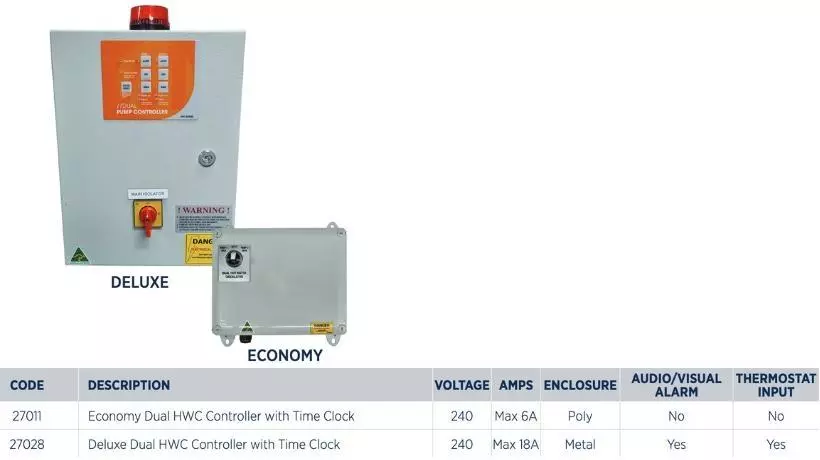

Reefe dual hot water controller w time clock specifications

REEFE Dual Hot Water Controller 27011 Features

  • Highly durable and functional electronic keypad for ease of use on deluxe and Compakt models
  • 24 hour / 7 day timer on all models
  • Circuit breaker protected low voltage control and input circuitry for safety on deluxe and Compakt models
  • Lockable mains isolator for safety on deluxe model
  • Auto / manual / off operation of both pumps on deluxe model
  • Thermal overload protection of pump motors on deluxe model
  • Visual and audible alarms complete with mute switch on deluxe model
  • LED indicator lights for system status indication on deluxe model
  • IP44 weatherproof, lockable powder coated metal enclosures complete with removable gland plate on deluxe model
  • External door option available so control keypad is protected from the weather / tampering on deluxe model
  • Inter-connectable with BMS on deluxe model
  • The economy model cannot be used with a thermostat
  • The economy model does not have a visual or audible alarm
